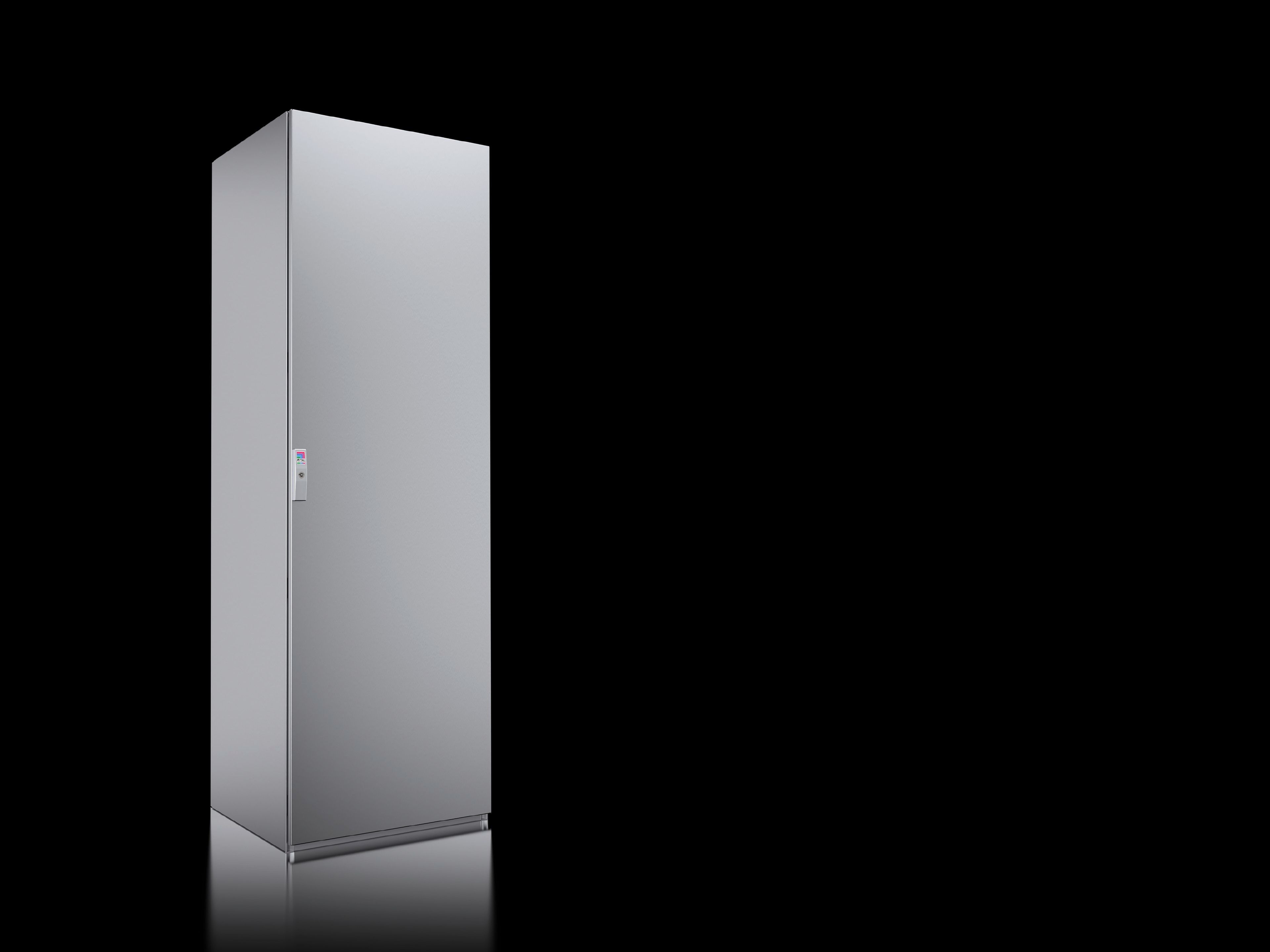

Rittal SE 5851.600 Free-standing Enclosure - IP55
Part Number: 5851600
Manufacturer
Rittal
Part number
5851600
Alt Part Number
SE 5851.600
Quick Summary
Rittal SE 5851.600 Free-standing enclosure protects sensitive controls in harsh industrial environments. This stainless steel cabinet offers robust durability while enabling straightforward access for maintenance. Engineers often struggle with corrosion, ingress protection, and baying compatibility; this enclosure addresses those pain points with 1.4301 stainless steel and a brushed exterior. It carries IP55 and NEMA 12 protection and UL 50E Type 1 compliance, supporting essential safety and regulatory requirements for demanding plant floors. The VX SE design integrates with the VX25 baying system for scalable, modular installations. With mounting plate, rear panel, and included gland plates, it delivers reliable enclosure performance, reduces downtime, and protects long-term automation investments.
Product Information
Extended Description
5851600 Rittal: VX SE Free-standing enclosure system, WHD: 600x1800x500 mm, Stainless Steel, 1.4301, with mounting plate, single door at the front
Article number
SE 5851.600
Material
Enclosure: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed | Door: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed | Rear panel: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed | Gland plates: Stainless steel 1.4301 (AISI 304), 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure, door and rear panel: Brushed, grain size 400 | Gland plates: Uncoated | Mounting plate: Zinc-plated
Supply includes
Enclosure, solid top and sides | Door(s) | R/h door hinge with single-door enclosures, may be swapped to opposite side | Rear panel, detachable | Mounting plate | Gland plates | Lock: 3 mm double-bit | 2 punched rails 18 x 39 mm
Dimensions
Width: 600 mm | Height: 1,800 mm | Depth: 500 mm
Dimensions mounting plate (W x H)
499 mm x 1,696 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
1
Note
Due to the hardness of the material, we recommend using metal multi-tooth screws 2486.400 for the interior installation.
Basic material
Stainless steel 1.4301 (AISI 304)
Packs of
1 pc(s).
Weight/pack
104 kg
EAN
4028177959378
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX SE Free-standing enclosure system, WHD: 600x1800x500 mm, Stainless Steel, 1.4301, with mounting plate, single door at the front
Feature: Premium stainless steel construction uses 1.4301 grade (AISI 304) for excellent corrosion resistance in wash-down and outdoor environments. Business Impact: Longer service life and lower maintenance spend due to durable enclosure materials. Application: Ideal for process automation panels and control cabinets exposed to moisture, dust, and temperature swings. Feature: Enhanced protection with IP55, NEMA 12, and IK10 ratings. Business Impact: Meets critical safety and regulatory requirements while resisting impact and ingress, reducing warranty and failure costs. Application: Suitable for demanding industrial floors and machine rooms where reliability is non-negotiable. Feature: VX SE compatibility with VX25 baying system. Business Impact: Enables scalable, modular installations with fewer custom builds and faster time-to-value. Application: Large control ecosystems that expand over time require this seamless baying integration. Feature: Practical mounting and access options. Business Impact: Quick, tool-assisted installation with a detachable rear panel and a mounting plate; saves field labor and downtime. Application: OEMs and panel builders benefiting from modular internal layout and flexible door orientation. Feature: Comprehensive hardware and finish. Business Impact: Brushed exterior finish resists wear; included gland plates, rails, and mounting hardware streamline assembly. Application: Pharma, food & beverage, and general manufacturing environments seeking compliant, durable enclosures.
Get a Quick Quote for a Rittal 5851600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5851600?
Enquire Now
FAQs
The SE 5851.600 includes a mounting plate (499 mm x 1,696 mm), a detachable rear panel, gland plates, and 2 punched rails (18 x 39 mm). For installation, align the enclosure, fasten to a stable base, swap door hinge sides if needed, and mount internal components to the rails. The unit supports VX SE configurations and can be integrated into VX25 baying frames for scalable cabinets; expect a heavy assembly (approx. 104 kg per pack) requiring appropriate lifting equipment.
The enclosure uses Stainless steel 1.4301 (AISI 304) for body, door, and rear panel with a brushed finish. It carries IP55 and NEMA 12 protection, IK10 impact resistance, and UL 50E Type 1 type rating, ensuring robust ingress protection and electrical safety in demanding environments.
Yes, the VX SE free-standing enclosure is designed to be fully compatible with the VX25 baying system. This enables modular expansion of control cabinets with consistent mounting, simplified alignment, and reduced integration effort across multiple enclosures in a row or cathedral layout.
Key certifications and standards include IP55 protection per IEC 60529, NEMA 12 enclosure rating, UL 50E Type 1 compliance, and IK10 impact resistance. These, combined with the stainless steel construction, support regulatory requirements for industrial controls, providing higher reliability in aggressive environments.
The 1.4301 stainless steel body provides long-term corrosion resistance and minimal maintenance. Its compatibility with VX25 baying reduces field wiring and assembly time, while modular mounting and a detachable rear panel simplify upgrades and service access. Overall, users typically experience lower lifecycle costs, improved uptime, and faster fixes for automated systems.
