Rittal SE 5852.600 Enclosure System Stainless Steel - IP55
Part Number: 5852600
Manufacturer
Rittal
Part number
5852600
Alt Part Number
SE 5852.600
Quick Summary
The Rittal SE 5852.600 Enclosure System protects sensitive electrical gear in harsh industrial environments. Engineers often grapple with corrosion, ingress, and limited mounting options that drive downtime and escalating maintenance costs. With IP55 protection, NEMA 12 compatibility, and UL 50E Type 1 ratings, it meets stringent safety and reliability standards for demanding facilities. Designed for VX SE free-standing installation and seamless VX25 baying, it delivers long-term value through robust stainless steel construction, simplified installation, and predictable serviceability. The enclosure uses 1.4301 stainless steel, 2.0 mm door, 1.5 mm rear panel and 3.0 mm mounting plate, reducing field work and accelerating commissioning. Its mounting plan supports traceability and easier replacement of components, contributing to lower total cost of ownership.
Product Information
Extended Description

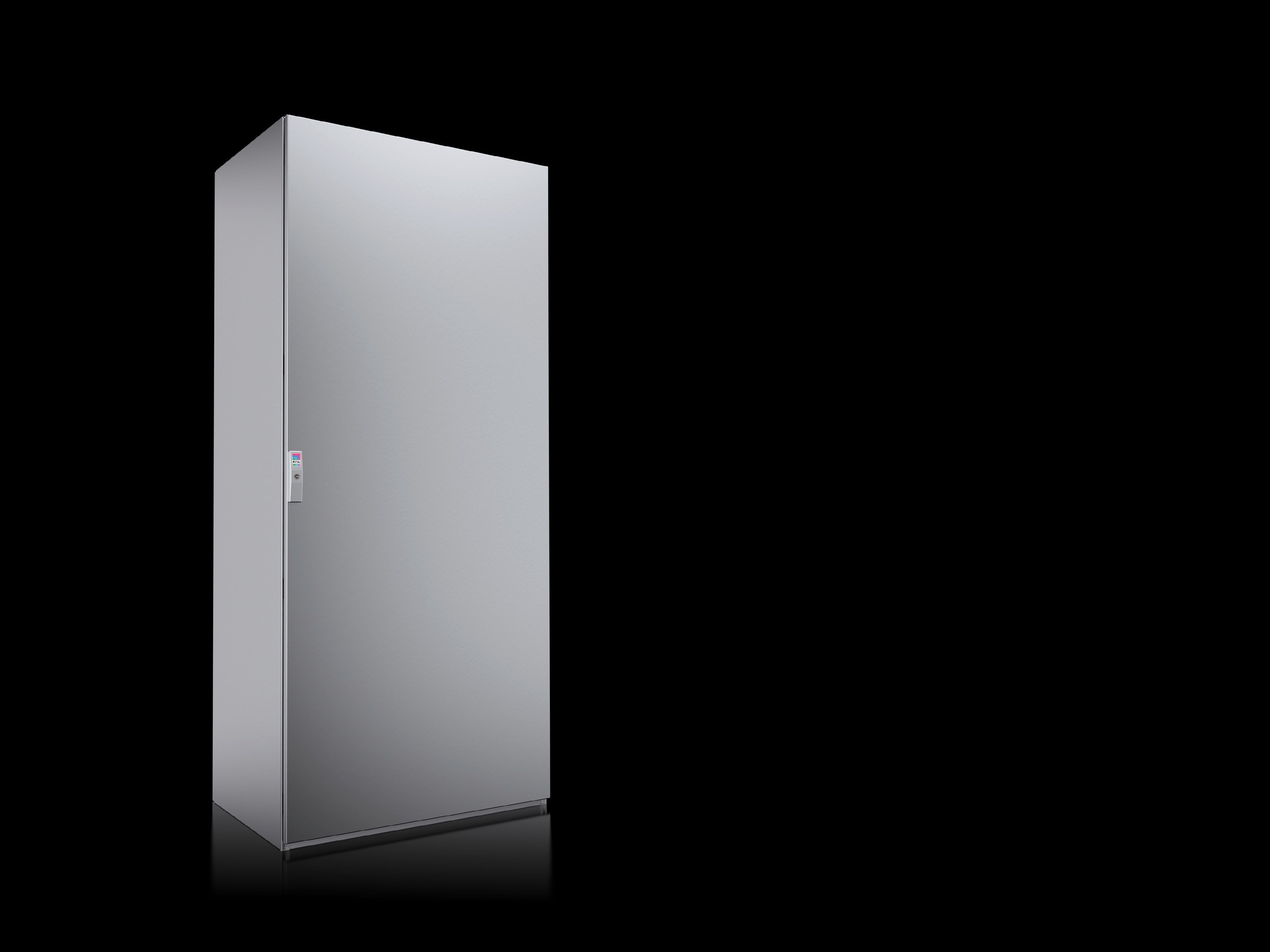

5852600 Rittal: VX SE Free-standing enclosure system, WHD: 800x1800x500 mm, Stainless Steel, 1.4301, with mounting plate, single door at the front
Article number
SE 5852.600
Material
Enclosure: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed | Door: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed | Rear panel: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed | Gland plates: Stainless steel 1.4301 (AISI 304), 1.5 mm | Mounting plate: Sheet steel, 3.0Â mm
Surface finish
Enclosure, door and rear panel: Brushed, grain size 400 | Gland plates: Uncoated | Mounting plate: Zinc-plated
Supply includes
Enclosure, solid top and sides | Door(s) | R/h door hinge with single-door enclosures, may be swapped to opposite side | Rear panel, detachable | Mounting plate | Gland plates | Lock: 3 mm double-bit | 2 punched rails 18 x 39 mm
Dimensions
Width:Â 800 mm | Height:Â 1,800 mm | Depth:Â 500 mm
Dimensions mounting plate (W x H)
699 mm x 1,696 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
1
Note
Due to the hardness of the material, we recommend using metal multi-tooth screws 2486.400 for the interior installation.
Basic material
Stainless steel 1.4301 (AISIÂ 304)
Packs of
1 pc(s).
Weight/pack
125 kg
EAN
4028177959354
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX SE Free-standing enclosure system, WHD: 800x1800x500 mm, Stainless Steel, 1.4301, with mounting plate, single door at the front
Stainless steel construction using 1.4301 (AISI 304) delivers exceptional corrosion resistance for demanding industrial environments, extending service life and reducing maintenance frequency. This enclosure is designed for VX SE free-standing installation with VX25 baying compatibility, enabling scalable, modular layouts that save space and accelerate system integration. Roof and sides from a single piece with a roll-formed frame reduce assembly steps and gaps, improving enclosure integrity and reducing leakage risk. Two integral mounting levels and a screw-fastened rear panel provide rigid, configurable mounting for drivers, controllers, and power distribution, while gland plates and the 699x1696 mm mounting plate support clean cable management and faster wiring. Weight efficiency and a compact footprint help limit transport and installation costs, while a 1.5–2.0 mm metal construction supports rugged field use. Height, width, and depth (800x1800x500 mm) align with VX SE baying standards and enable predictable planning across projects.
Get a Quick Quote for a Rittal 5852600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5852600?
Enquire Now
FAQs
SE 5852.600 is designed as a VX SE free-standing enclosure, compatible with VX25 baying systems. It includes a mounting plate (699x1696 mm), two punched rails (18 x 39 mm), and a rear panel that can be swapped to the opposite door side. The system supports standard installation practices, streamlining integration with existing VX bays and reducing field wiring time.
The enclosure carries IP55 protection, NEMA 12 compliance, and UL 50E Type 1 rating, with IK10 impact resistance. These specs ensure reliable performance in dusty or damp environments, compatible with many industrial control and power applications while supporting equipment safety and durability standards.
SE 5852.600 is designed for protected indoor environments or sheltered outdoor installations where IP55 protection is sufficient. For outdoor exposure, account for environmental conditions and adhere to site protection requirements. The stainless steel construction helps resist corrosion, while the enclosure profile supports modular VX SE/VX25 configurations to simplify commissioning.
Dimensions are Width 800 mm, Height 1,800 mm, Depth 500 mm. Mounting plate size is 699 x 1,696 mm. The weight per pack is 125 kg, with sufficient space for mounting hardware and gland plates to manage cabling efficiently during installation.
Delivery includes the enclosure with roof and sides, a front door, rear panel, mounting plate, gland plates, a lock, and 2 punched rails. As a note, due to material hardness, use metal multi-tooth screws 2486.400 for interior installation to ensure secure, long-lasting assembly and avoid stripping the material.
