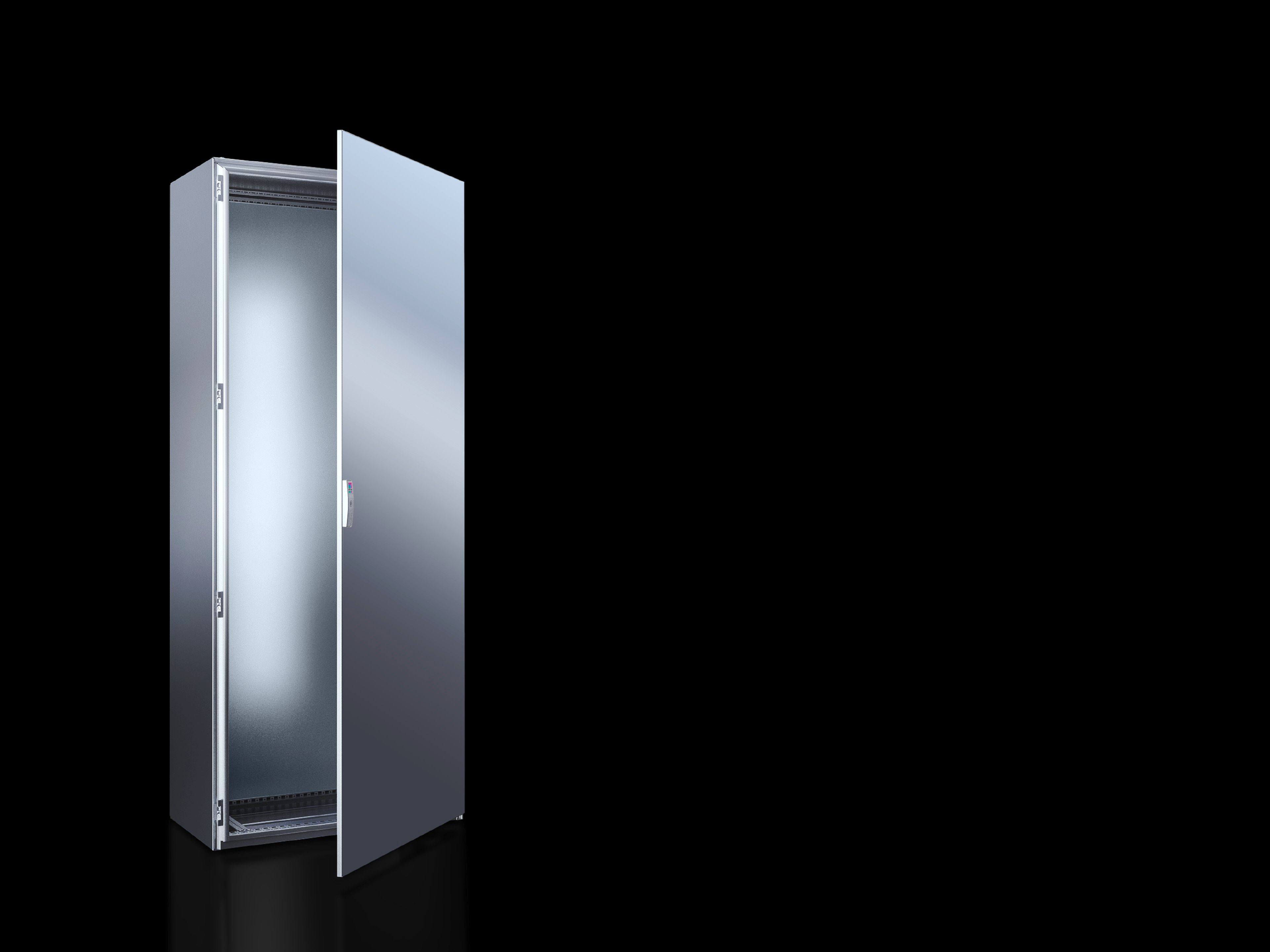

Rittal 5852680 VX SE Enclosure - IP66 / NEMA 4X
Part Number: 5852680
Manufacturer
Rittal
Part number
5852680
Alt Part Number
SE 5852.680
Quick Summary
Rittal 5852680 VX SE Enclosure is a free-standing stainless steel cabinet designed to protect control panels in harsh industrial environments. It provides robust, corrosion-resistant housing with a front door and detachable rear panel to simplify wiring and maintenance, reducing downtime on demanding production lines. This enclosure is engineered to endure complex plant conditions, helping facilities meet uptime targets while safeguarding critical electronics. The design incorporates IP66 and NEMA 4X protection, IK10 impact resistance, and UL 50E Type 1 compliance, delivering reliable performance across varying regulatory regimes. In addition to its rugged core, the VX SE system offers mounting plate compatibility and scalable baying capability, supporting efficient layout optimization and long-term cost of ownership for modern automation projects.
Product Information
Extended Description
5852680 Rittal: VX SE Free-standing enclosure system, WHD: 800x1800x500 mm, Stainless Steel, 1.4301, with mounting plate, single door at the front
Article number
SE 5852.680
Material
Enclosure: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed | Door: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed | Rear panel: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed | Mounting plate: Sheet steel, 3.0Â mm | Base: Stainless steel 1.4301 (AISI 304), 1.5 mm
Surface finish
Enclosure, rear panel and door: Brushed, grain size 400 | Mounting plate: Zinc-plated | Base: Uncoated
Supply includes
Enclosure, solid top and sides | Door(s) | Door hinged on the right, may be swapped to the left | Rear panel, detachable | Mounting plate | Base, gland plate(s) | Lock: 3 mm double-bit | 2 punched rails 18 x 39 mm
Dimensions
Width:Â 800 mm | Height:Â 1,800 mm | Depth:Â 500 mm
Dimensions mounting plate (W x H)
699 mm x 1,696 mm
Protection category to IEC 60 529
IP 66
Protection category NEMA
NEMA 4X
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
1
Note
Due to the hardness of the material, we recommend using metal multi-tooth screws 2486.400 for the interior installation.
Basic material
Stainless steel 1.4301 (AISIÂ 304)
Packs of
1 pc(s).
Weight/pack
134 kg
EAN
4028177959408
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
VX SE Free-standing enclosure system, WHD: 800x1800x500 mm, Stainless Steel, 1.4301, with mounting plate, single door at the front
Feature → Business Impact → Application: Stainless steel construction using 1.4301 (AISI 304) delivers excellent corrosion resistance in wet, dusty, or chemically challenging environments, extending enclosure life and reducing intervening maintenance. This directly lowers total cost of ownership for process automation installations in manufacturing plants and food/pharma environments where hygiene and durability matter. Feature → Business Impact → Application: IP 66 and NEMA 4X protection, IK10 impact resistance, and UL 50E Type 1 classification provide robust, regulatory-aligned protection for control gear, enabling installation in exposed areas or near production lines without enclosure failures or downtime. Feature → Business Impact → Application: Two integral mounting levels, a detachable rear panel, and a 2.0 mm door with a 1.5 mm rear panel enable fast wiring, easier service access, and simplified component upgrades during plant modifications. Feature → Business Impact → Application: Mounting plate included with dimensions 699x1696 mm and 18x39 mm punched rails support quick, secure internal wiring and modular component layout, improving commissioning speed and reducing field wiring errors. Feature → Business Impact → Application: VX25 baying system compatibility provides scalable expansion and cost-effective system integration for growing control architectures, helping engineers plan future capacity without replacing enclosures. Feature → Business Impact → Application: Front-door orientation (hinged on right, swap to left) and lock with 3 mm double-bit offer flexibility for various installation configurations and security requirements across diverse production floors.
Get a Quick Quote for a Rittal 5852680
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5852680?
Enquire Now
FAQs
Installers should anchor the enclosure using the base and gland plates, attach the mounting plate included with the unit, and connect field wiring through the detachable rear panel. The door is hinged on the right and may be swapped to the left; use metal multi-tooth screws (part 2486.400) for interior mounting due to the hard stainless steel. The VX25 baying system compatibility allows you to join multiple enclosures without gaps, enabling scalable, space-efficient control installations.
The enclosure is IP66 and NEMA 4X rated, offering dust-tight protection and water ingress resistance for harsh environments. IK10 indicates high impact resistance, improving durability in dynamic plant settings. UL 50E Type 1 confirms suitability for electrical equipment enclosures in commercial and light industrial applications; together these ratings support compliance and safer operation of control gear.
Yes, the stainless steel 1.4301 body is designed for corrosive or wet environments, and the IP66/NEMA 4X protection makes it suitable for outdoor or partially sheltered indoor installations subject to dust, jets of water, and washdowns. Its robust construction and mounting options support reliable service in manufacturing, process automation, and packaging lines.
UL 50E Type 1 compliance confirms the enclosure is appropriate for electrical equipment in defined environments. While CE marking is often associated with European compliance, you should verify specific local certifications for your site; the enclosure’s rugged build and IP66/NEMA 4X ratings support many EU and US regulatory contexts when installed according to manufacturer guidelines.
The stainless steel construction minimizes corrosion-related maintenance, reducing downtime and replacement costs. Detachable rear panels and easy wiring access speed up service actions, while mounting plate and rails enable straightforward upgrades. Compatibility with the VX25 baying system supports future capacity expansion without new enclosures, delivering a favorable total cost of ownership over the equipment lifecycle.
