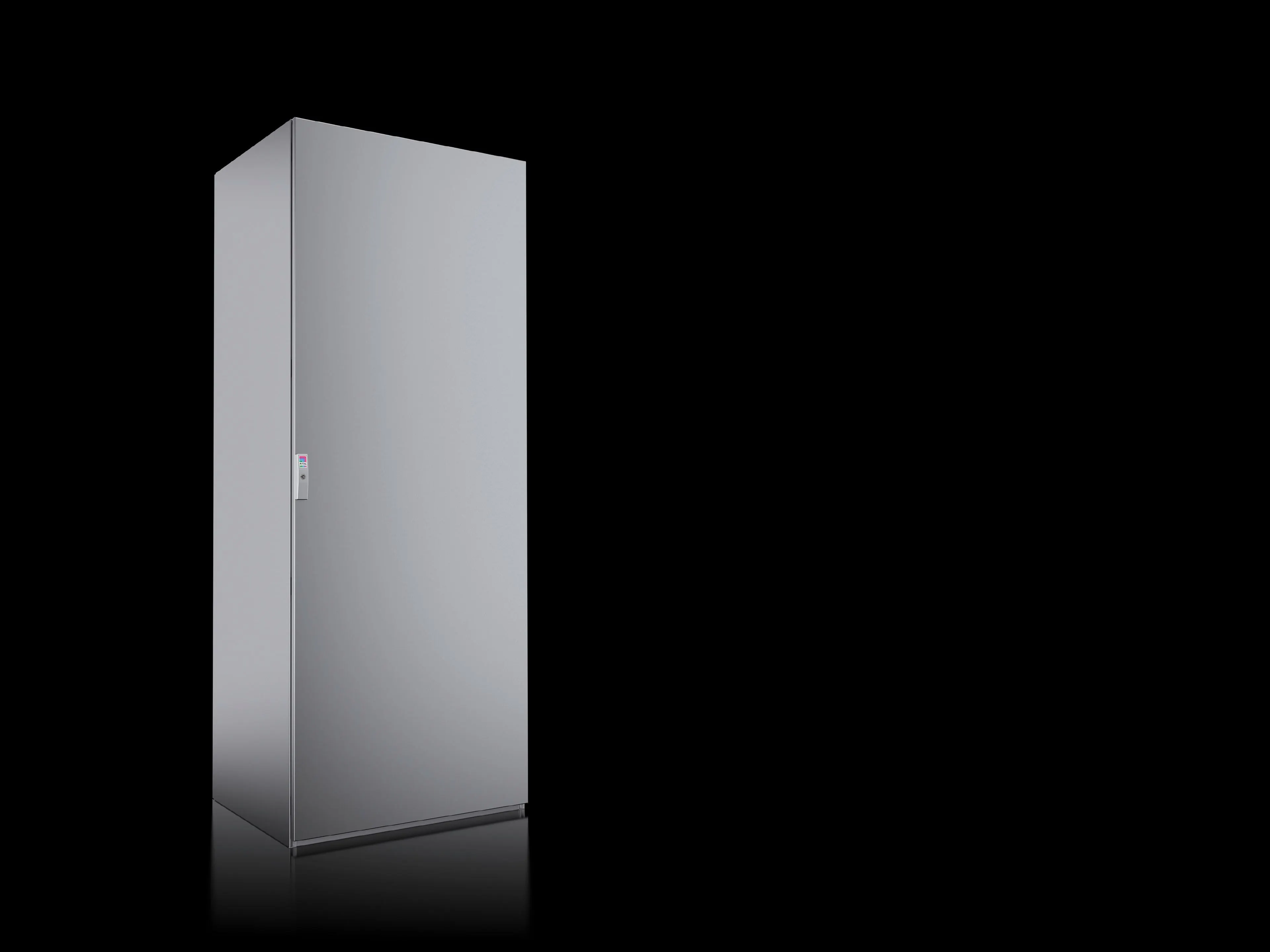

Rittal 5853600 Free-standing Enclosure - IP55, IK10
Part Number: 5853600
Manufacturer
Rittal
Part number
5853600
Alt Part Number
SE 5853.600
Quick Summary
Rittal VX SE Free-standing enclosure protects control panels in harsh industrial environments. Engineers often struggle with corrosion resistance, moisture ingress, and rigid field installations when integrating enclosures with VX25 baying systems. This model achieves IP55, NEMA 12, and IK10 protection plus UL 50E Type 1 compliance, ensuring long service life and regulatory alignment. Built from stainless steel 1.4301, it includes a detachable rear panel, mounting plate, gland plates, and a practical door hinge setup that speeds assembly. By delivering rugged protection and VX SE compatibility, it supports durable automation layouts, faster commissioning, and lower total cost of ownership.
Product Information
Extended Description
5853600 Rittal: VX SE Free-standing enclosure system, WHD: 800x2000x600 mm, Stainless Steel, 1.4301, with mounting plate, single door at the front
Article number
SE 5853.600
Material
Enclosure: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed | Door: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed | Rear panel: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed | Gland plates: Stainless steel 1.4301 (AISI 304), 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure, door and rear panel: Brushed, grain size 400 | Gland plates: Uncoated | Mounting plate: Zinc-plated
Supply includes
Enclosure, solid top and sides | Door(s) | R/h door hinge with single-door enclosures, may be swapped to opposite side | Rear panel, detachable | Mounting plate | Gland plates | Lock: 3 mm double-bit | 2 punched rails 18 x 39 mm
Dimensions
Width: 800 mm | Height: 2,000 mm | Depth: 600 mm
Dimensions mounting plate (W x H)
699 mm x 1,896 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
1
Note
Due to the hardness of the material, we recommend using metal multi-tooth screws 2486.400 for the interior installation.
Basic material
Stainless steel 1.4301 (AISI 304)
Packs of
1 pc(s).
Weight/pack
144 kg
EAN
4028177959385
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX SE Free-standing enclosure system, WHD: 800x2000x600 mm, Stainless Steel, 1.4301, with mounting plate, single door at the front
Feature: Stainless steel construction 1.4301 provides superior corrosion resistance and durability in aggressive environments. Impact: Extends cabinet lifespan and reduces maintenance intervals for critical automation panels. Application: Ideal for process automation, water/wastewater, and food-grade or hygienic environments where a robust enclosure is required. Long-tail keywords: stainless steel enclosure, AISI 304, corrosion-resistant cabinet. Business impact: lowers lifecycle costs while improving reliability and hygiene standards. Feature: Protection ratings IP55, NEMA 12, IK10 ensure robust ingress protection and impact resistance. Impact: Minimizes downtime due to dust, water splash, and physical shock. Application: Suitable for outdoor installations and factory floors with frequent handling of equipment. Long-tail keywords: IP55 enclosure, NEMA 12 cabinet, IK10 rating. Business impact: enhances safety compliance and uptime for critical equipment.Feature: VX SE compatibility with VX25 baying system enables scalable installations. Impact: Reduces field rework and sequence changes when expanding control architectures. Application: Modular automation cabinets in growing production lines. Long-tail keywords: VX SE free-standing enclosure, VX25 baying, modular cabinet. Business impact: lowers capital expenditures and speeds time-to-market for new lines.Feature: Front door access with detachable rear panel, mounting plate, gland plates, and two punched rails. Impact: Simplifies installation, wiring, and future reconfigurations. Application: Panel mounting and wiring in control rooms or machine enclosures. Long-tail keywords: mounting plate, gland plates, punched rails 18x39 mm. Business impact: reduces commissioning time and labor costs during upgrades.Feature: Material and finish details—1.5 mm rear panel, 2.0 mm door, brushed exterior, zinc-plated mounting plate. Impact: Consistent aesthetics and protected surfaces for long-term use. Application: Industrial environments demanding durable finishes and easy cleaning. Long-tail keywords: brushed stainless steel, surface finish, zinc-plated mounting plate. Business impact: lowers maintenance effort and improves lifecycle performance.
Get a Quick Quote for a Rittal 5853600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5853600?
Enquire Now
FAQs
The SE 5853.600 uses an 800 mm width, 2000 mm height, and 600 mm depth with a mounting plate sized 699 x 1,896 mm. It includes two punched rails (18 x 39 mm) and a detachable rear panel, enabling straightforward alignment with VX25 baying. Front door orientation is adjustable, and the weight is 144 kg per pack to support stable installations.
This enclosure is made from stainless steel 1.4301 (AISI 304). It provides IP55 protection and NEMA 12 rating, with IK10 impact resistance. The door is 2.0 mm thick, rear panel 1.5 mm, and gland plates 1.5 mm, all with brushed finishes. UL 50E Type 1 compliance also applies, supporting electrical safety and enclosure performance.
The SE 5853.600 uses stainless steel 1.4301 with brushed exterior surfaces suitable for many hygienic and industrial applications. While it offers corrosion resistance and easy cleaning, confirm your industry-specific hygiene or certification requirements (such as HACCP) with Rittal for precise suitability and any additional coatings or finishes.
Key benefits include VX SE compatibility with VX25 baying for scalable layouts, a detachable rear panel for quick wiring, and an integrated mounting plate with gland plates to streamline installation. The included rails and single-door access minimize field rework, while the stainless steel construction reduces maintenance costs over the cabinet’s life cycle.
The enclosure carries IP55 and NEMA 12 protection, IK10 impact resistance, and UL 50E Type 1 compliance. These certifications support regulatory alignment for safety and performance in industrial environments, including automated control panels and process equipment enclosures.
