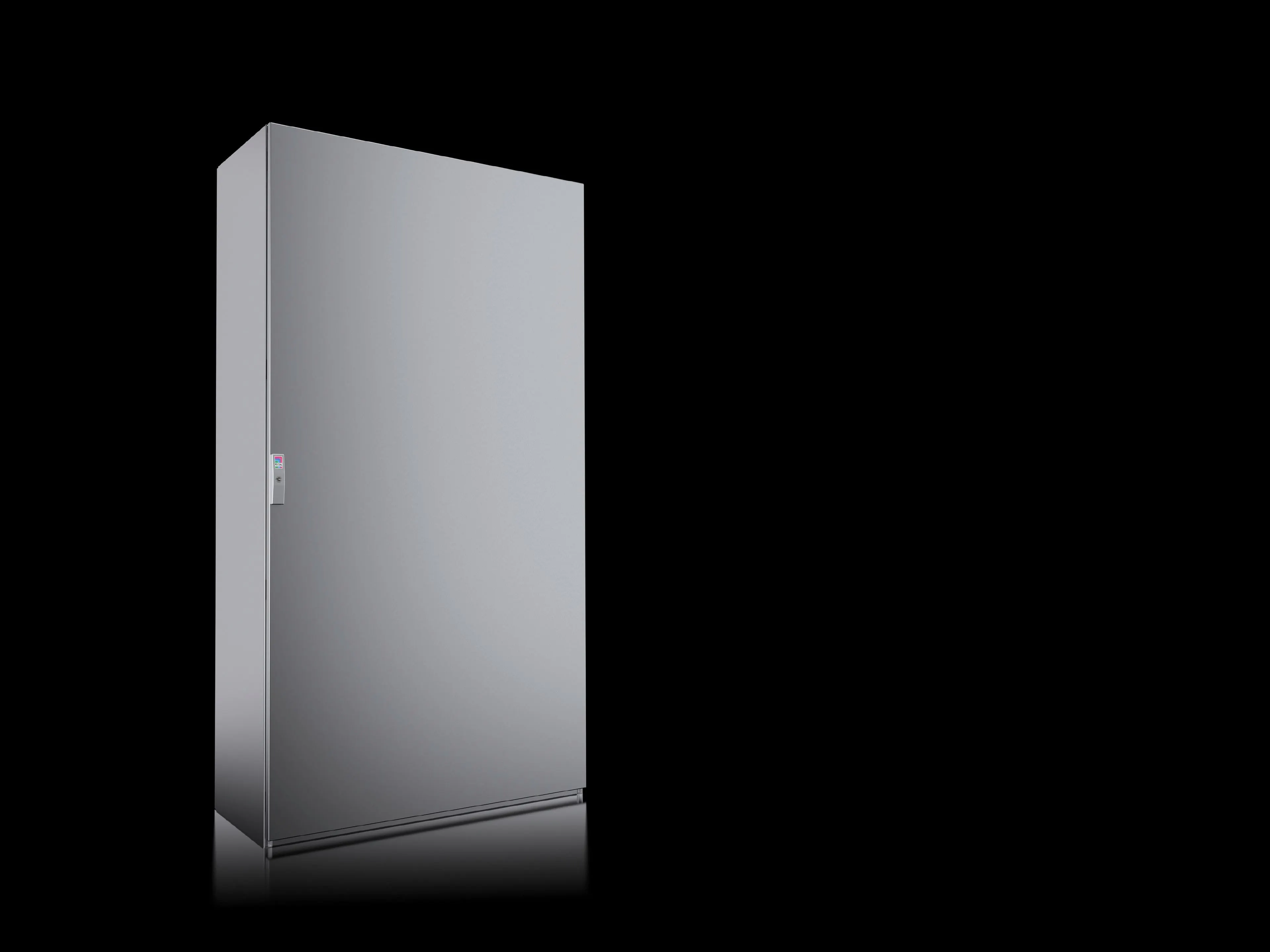

Rittal 5854600 Enclosure - IP55, NEMA 12, IK10
Part Number: 5854600
Manufacturer
Rittal
Part number
5854600
Alt Part Number
SE 5854.600
Quick Summary
Rittal 5854600 Enclosure is a free-standing stainless-steel cabinet designed for rugged industrial control panels. It addresses installation downtime by integrating roof and side panels into a single-piece construction and providing two integral mounting levels. The enclosure delivers robust protection with IP55, NEMA 12, and IK10 ratings, ensuring reliable operation in demanding environments. As a VX SE compatible cabinet, it supports scalable automation layouts while simplifying maintenance. This combination of durable material, certified protection, and VX SE compatibility translates into reduced total cost of ownership and streamlined project timelines for engineering and procurement teams.
Product Information
Extended Description
5854600 Rittal: VX SE Free-standing enclosure system, WHD: 1000x1800x400 mm, Stainless Steel, 1.4301, with mounting plate, single door at the front
Article number
SE 5854.600
Material
Enclosure: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed | Door: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed | Rear panel: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed | Gland plates: Stainless steel 1.4301 (AISI 304), 1.5 mm | Mounting plate: Sheet steel, 3.0Â mm
Surface finish
Enclosure, door and rear panel: Brushed, grain size 400 | Gland plates: Uncoated | Mounting plate: Zinc-plated
Supply includes
Enclosure, solid top and sides | Door(s) | R/h door hinge with single-door enclosures, may be swapped to opposite side | Rear panel, detachable | Mounting plate | Gland plates | Lock: 3 mm double-bit | 2 punched rails 18 x 39 mm
Dimensions
Width:Â 1,000 mm | Height:Â 1,800 mm | Depth:Â 400 mm
Dimensions mounting plate (W x H)
899 mm x 1,696 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
1
Note
Due to the hardness of the material, we recommend using metal multi-tooth screws 2486.400 for the interior installation.
Basic material
Stainless steel 1.4301 (AISIÂ 304)
Packs of
1 pc(s).
Weight/pack
140 kg
EAN
4028177959330
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX SE Free-standing enclosure system, WHD: 1000x1800x400 mm, Stainless Steel, 1.4301, with mounting plate, single door at the front
Feature → Business Impact → Application: The SE free-standing enclosure uses a one-piece roof and sides, reducing assembly time and minimizing leak paths, which translates into faster installation and lower field labor costs for machine builders. It is manufactured from stainless steel 1.4301 (AISI 304) with brushed finishes, ensuring long-term corrosion resistance in washdown and industrial settings; ideal for process automation cabinets in food, pharma, and water treatment. The enclosure includes a mounting plate and two punched rails, enabling quick equipment mounting and modular expansion for evolving control systems. With IP55, NEMA 12, and IK10 ratings, engineers can maintain safety compliance while protecting sensitive electronics in harsh environments. The unit is compatible with the VX25 baying system, improving scalability for multi-cabinet installations in panel houses and OEM assemblies. A detachable rear panel and swap-enabled door hinge provide installation flexibility and reduced downtime when reconfiguring layouts.
Get a Quick Quote for a Rittal 5854600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5854600?
Enquire Now
FAQs
The SE 5854.600 is designed for seamless VX SE compatibility, featuring a mounting plate and rails that align with VX25 baying configurations. It supports rear-panel detachability and a configurable door hinge, enabling side-swap installation and ease of integration into multi-cabinet arrays for scalable automation architectures.
This enclosure uses stainless steel 1.4301 (AISI 304) with brushed exterior surfaces. It carries IP55 and NEMA 12 protection ratings, and IK10 impact resistance, making it suitable for damp, dusty, and mechanically demanding environments while protecting internal electronics.
Yes. With IP55/NEMA 12 protection, IK10 impact resistance, and corrosion-resistant stainless steel construction, it is well-suited for factories, water treatment, food and beverage processing, and other demanding sectors where reliability and easy maintenance are critical.
The unit aligns with ETIM EC000261, ETIM 9/8 standards, and ECLASS 8.0 27180101 classifications. UL 50E Type 1 compatibility is noted in the product data, supporting electrical panel applications in certified environments.
Key benefits include a detachable rear panel, a mounting plate, and two punched rails for flexible internal layouts. The single-piece roof and sides reduce assembly time, while VX SE compatibility ensures scalable layouts, lowered field labor, and easier long-term maintenance for OEMs and end-users.
