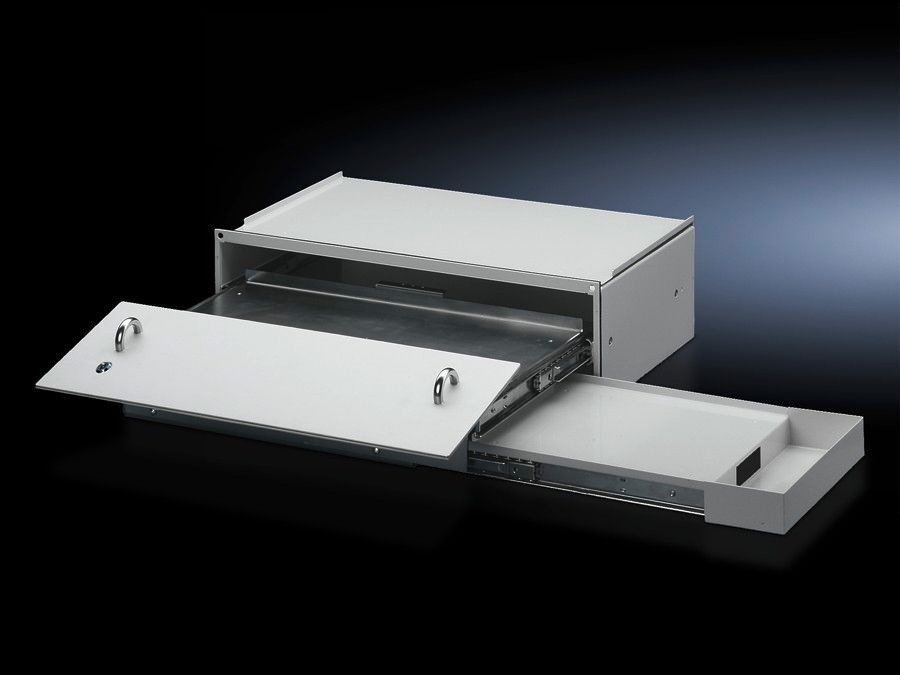

Rittal CP 6003.000 Keyboard/Mouse Drawer - IP54
Part Number: 6003000
Manufacturer
Rittal
Part number
6003000
Category
Alt Part Number
CP 6003.000
Quick Summary
The Rittal CP 6003.000 keyboard and mouse drawer offers a robust, integrated input station for 19'' racks and cabinet interiors. In tight automation panels, engineers struggle with space, misaligned peripherals, and awkward access. With IP54 protection, CE conformity, and ETIM 9 / ECLASS 8.0 classifications, the unit combines safety, interoperability, and scalable procurement. The solution supports a max keyboard of 460x42x170 mm and includes a mousepad, enabling ergonomic use without compromising panel integrity. This translates to faster device setup, reduced operator fatigue, and clearer, standards-aligned purchasing in building and infrastructure systems.
Product Information
Extended Description
6003000 Rittal: CP Drawer for keyboard and mouse, with mousepad support, 19"/3.5 U
Article number
CP 6003.000
Design
Drawer and housing: With side pull-out mousepad support and tray | Front panel: With 3 mm double-bit lock insert, folds out as handrest
Product description
May be installed in any sufficiently large surface (e.g. door, side panel) and front panels. Suitable to accommodate keyboards, standard mouse or pad.
Material
Drawer and enclosure: Sheet steel | Front panel: Aluminium
Surface finish
Drawer and housing: Painted | Front panel: Natural anodised
Supply includes
Assembly parts
Dimensions
Width:Â 482.6 mm | Depth:Â 261 mm
Max. keyboard dimensions (WxHxD)
460 x 42 x 170 mm
Note
Not suitable for installation in a 482.6 mm (19") frame
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
10.7 kg
Customs tariff number
94039910
EAN
4028177185272
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
CP Drawer for keyboard and mouse, with mousepad support, 19"/3.5 U
Feature → Business Impact → Application: Drawer and housing with side pull-out mousepad support and tray deliver an ergonomic, space-efficient input station that keeps keyboards and mice organized within 19" / 3.5U footprints, enabling quick operator access and reducing reach strain in control rooms and manufacturing lines. Application: Control panels, telecom racks, and industrial enclosures where efficient workstations matter. Feature → Business Impact → Application: Front panel with a 3 mm double-bit lock insert that folds out as a handrest provides secure access and a comfortable resting point, improving operator confidence and reducing unauthorized access in harsh environments; use in protected control stations or critical infrastructure cabinets. Feature → Business Impact → Application: Drawer and enclosure constructed from sheet steel with a aluminium front panel delivers durability and corrosion resistance, translating to lower maintenance costs and longer service life in harsh factory floors and outdoor installations. Feature → Business Impact → Application: Painted drawer housing with natural anodised front panel offers wear resistance and easy cleaning, supporting long-term aesthetics and reduced downtime in high-traffic environments. Feature → Business Impact → Application: Dimensions of width 482.6 mm and depth 261 mm with max keyboard 460 x 42 x 170 mm ensure precise fitment in large surface installations; note the unit is suitable for installing in surfaces like doors or side panels, not in a 482.6 mm (19") frame, aiding accurate space planning. Feature → Business Impact → Application: IP54 protection protects sensitive peripherals from dust and water spray, enabling reliable operation in less-controlled environments and extending the life of input devices across production lines. Feature → Business Impact → Application: Supply includes assembly parts and a 10.7 kg weight per pack, simplifying on-site installation and reducing total installation time, factory floor downtime, and project cost.
Get a Quick Quote for a Rittal 6003000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6003000?
Enquire Now
FAQs
The CP 6003.000 is designed for installation in any sufficiently large surface such as doors, side panels, or front panels, and it specifically notes it is not suitable for installation in a 482.6 mm (19") frame. This gives system integrators flexibility to place the drawer in bespoke control enclosures while preserving a clean operator workspace. Assembly parts are included to simplify on-site mounting and alignment with adjacent components.
The unit accommodates keyboards up to 460 x 42 x 170 mm and provides IP54 protection, meaning it is protected against limited dust ingress and water spray from any direction. The overall enclosure width is 482.6 mm with a depth of 261 mm, and the weight per pack is 10.7 kg, supporting stable operator interfaces in busy environments.
Yes. Built with sheet steel for the drawer and enclosure and a front panel of aluminium, plus painted/durable finishes, the CP 6003.000 is designed for rugged use. The IP54 rating adds protection against dust and spray, making it suitable for manufacturing floors, automation panels, and outdoor or semi-outdoor installations where reliability is critical.
The unit carries IP54 protection and participates in ETIM 9 and ECLASS 8.0 classifications, aiding interoperability and standardized procurement. The front panel design includes a 3 mm double-bit lock, enhancing security in controlled environments. While designed for EU markets and general industry use, always confirm CE conformity in your regional specification to ensure full regulatory alignment.
By delivering a stable, ergonomic input station with a secure, easy-access lock and durable materials, the drawer reduces operator fatigue and simplifies panel maintenance. The integrated mousepad support keeps peripherals aligned, while the robust construction lowers replacement and repair costs in long-run MTBF improvements, contributing to lower total cost of ownership for control rooms and building infrastructure systems.
