Rittal 6016200 CP Enclosure connectors - ±105° adjustable
Part Number: 6016200
Quick Summary
Rittal CP Enclosure connectors for adjustable mounting between command panels, terminal boxes, compact enclosures, and adjacent surfaces. When wiring control panels, misalignment and rework are common pain points; pre-mounting halves on both sides and securing with a locking screw helps speed up installation and ensure accurate alignment. In many European and global applications, devices like CP connectors are used in CE-compliant, IP-rated environments and SIL-capable control systems; verify the exact certifications for your project requirements. By standardizing on this Rittal accessory, system integrators gain predictable assembly times and long-term reliability, while purchasing teams benefit from consistent compatibility with CP 6016.200 family and compatible enclosure interfaces. This combination supports faster commissioning, reduced field adjustments, and easier maintenance, delivering measurable total cost of ownership improvements for panel builders and OEMs.
Product Information
Extended Description

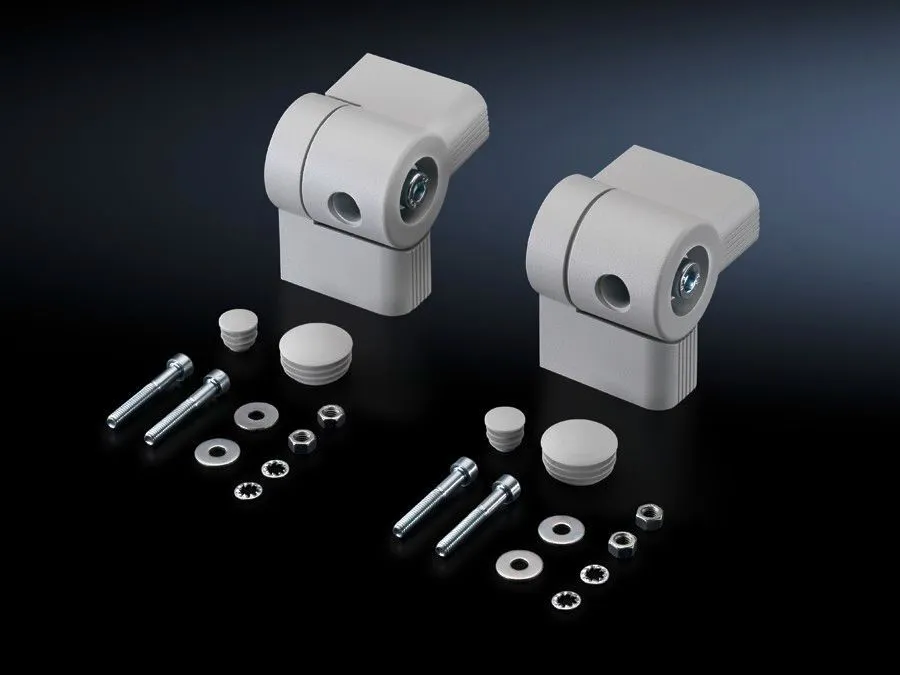

6016200 Rittal: CP Enclosure connectors, adjustable
Article number
CP 6016.200
Product description
For use between Command Panels, terminal boxes, compact enclosures and horizontal or vertical surfaces. Pre-mount the connector halves on both sides, screw together and secure with a locking screw, and/or adjust the angle of rotation.
Material
Die-cast zinc
Surface finish
Powder-coated
Colour
RAL 7035
Supply includes
Assembly parts for both sides.
Note
The locking screws may be exchanged for standard, commercially available clamping levers (M10 x 50 mm).
Rotation angle/swivel area
±105° adjustable in 7.5° stepped increments.
Packs of
2 pc(s).
Weight/pack
1.854 kg
Customs tariff number
79070000
EAN
4028177319509
ETIM 9
EC002622
ECLASS 8.0
27189263
Product description
CP Enclosure connectors, adjustable
Feature: The connector halves pre-mount on both sides to simplify assembly; Benefit: Reduces on-site handling steps and misalignment risk, saving commissioning time; Application: Use when mounting between command panels, terminal boxes, and enclosure surfaces. Feature: Rotation angle of ±105° in 7.5° steps; Benefit: Precise alignment and flexible layout without disassembly, improving cable routing and panel fit. Application: Ideal for adaptable control-panel interfaces in tight spaces. Feature: Die-cast zinc construction with powder-coated finish in RAL 7035; Benefit: High mechanical strength and corrosion resistance, lowering maintenance costs over the life of the installation. Application: Suitable for harsh industrial environments and long service intervals. Feature: Includes assembly parts for both sides and a locking screw; Benefit: Quick, secure fastening with consistent torque and repeatable results. Application: Fastens reliably in production lines, reducing rework. Feature: Optional clamping levers (M10 x 50 mm) replacement; Benefit: Customizable actuation for hands-on adjustments or tool-free operations. Application: Supports operator-friendly maintenance in OEM setups.
Get a Quick Quote for a Rittal 6016200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6016200?
Enquire Now
FAQs
Yes, the CP 6016.200 connectors are designed for use between command panels, terminal boxes, and compact enclosures, with pre-mounted halves on both sides for quick, repeatable assembly. They fit standard CP enclosure interfaces and support reliable alignment when used with Rittal systems.
The connector offers a swivel area of ±105° that is adjustable in 7.5° increments. This enables precise alignment during commissioning and allows on-site fine-tuning without disassembling the assembly, which reduces rework and downtime.
Yes. The CP enclosure connectors are specified for use between command panels, terminal boxes, and both horizontal and vertical surfaces, providing flexible mounting options in compact control panels and cabinet installations.
This accessory is commonly used in CE-compliant workflows and in environments where IP-rated enclosures and SIL-capable configurations are considered. Verify the exact certifications with your regional compliance team and Rittal documentation for your specific project and region.
The die-cast zinc construction with powder coating provides corrosion resistance and durability, reducing maintenance frequency. Pre-mounted halves and locking screws shorten installation time, lowering labor costs and improving uptime during commissioning and routine servicing.
