Rittal 6052500 CP Cable gland module - IP55 rated
Part Number: 6052500
Quick Summary
CP Cable gland module 6052500 provides sealed cable entry for wall-mounted enclosures with Ø130 mm support arm connections. For engineers tackling retrofits, retrofitting existing installations without ripping out wiring is a common challenge that causes downtime and safety concerns. It achieves IP55 protection with correct installation and cable entry, and aligns with ETIM EC000879 and ECLASS 27069216, easing specification, procurement, and data management. Constructed from sheet steel and zinc-plated for durability, the unit ships with assembly parts to accelerate on-site installation while delivering reliable long-term performance in harsh industrial environments.
Product Information
Extended Description

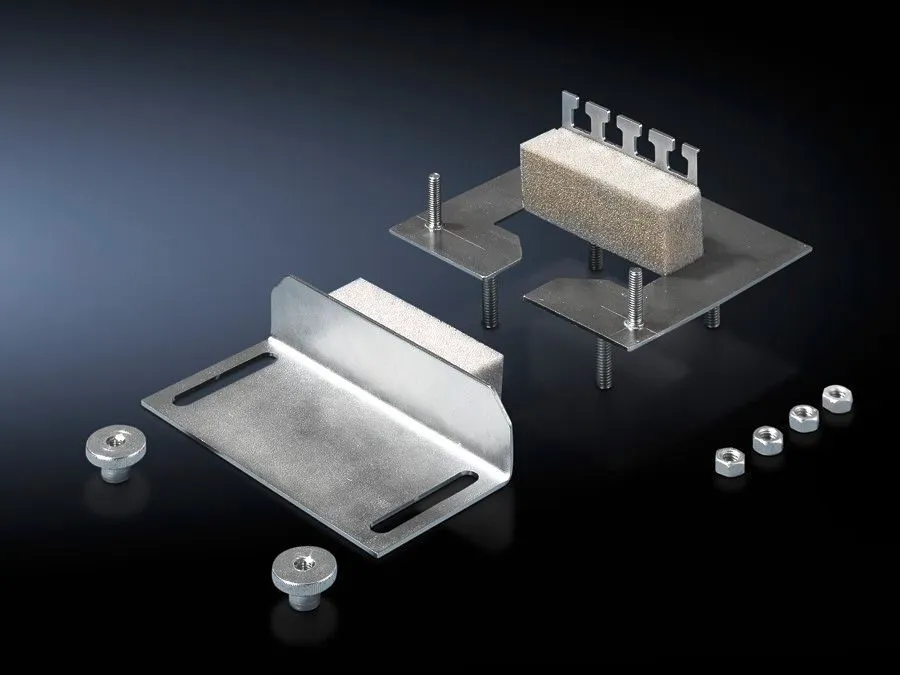

6052500 Rittal: CP Cable gland module, for support arm connection Ø 130 mm
Article number
CP 6052.500
Product description
Use of the mounting cut-out for support arm connection Ø 130 mm, round, with enclosures mounted on the wall, for sealed cable entry. May also be mounted retrospectively with the cables already inserted. Fitted with T-heads for cable clamping. Particularly well-suited to cables with identical crosssections.
Benefits
May also be mounted retrospectively with the cables already inserted.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
IP protection category to IEC 60 529
IP 55 with correct installation and cable entry
Packs of
1 pc(s).
Weight/pack
0.34 kg
PCF per pack (cradle-to-gate)
1.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177305786
ETIM 9
EC000879
ECLASS 8.0
27069216
Product description
CP Cable gland module, for support arm connection Ø 130 mm
The CP Cable gland module provides a round Ø130 mm support arm connection designed for wall-mounted enclosures and sealed cable entry. This arrangement simplifies the integration of the enclosure with a dedicated mounting cut-out, enabling tidy cable routes and reliable strain relief. Fitted with T-heads for cable clamping, it ensures consistent grip on cables, even when individual conductors share identical cross-sections. The design supports retrofits and new builds alike, allowing installation when the cables are already inserted or when they are added during mounting, reducing retrofit downtime and rework. Retrofitting flexibility translates directly into reduced downtime and lower field risk when updating existing installations. This module can be mounted retrospectively with cables already inserted, which is particularly valuable in busy production lines or regulated environments where panel access is restricted. Material and protection features include sheet steel construction and a zinc-plated finish, delivering mechanical strength and corrosion resistance in damp or dusty environments. When installed correctly, the unit achieves IP55 protection, guarding against dust ingress and water jets from directed sources. The rugged construction supports long service life in industrial settings. Compatibility and packaging considerations: the CP 6052.500 includes assembly parts in each pack, with a weight of 0.34 kg per pack and one unit per pack. It aligns with ETIM EC000879 and ECLASS 27069216 classifications and uses customs tariff code 73269098, simplifying procurement and cross-supply chain integration. The PCF (cradle-to-gate) value is 1.3 kg CO2 eq (Category B), reflecting a modest environmental footprint for this component as part of a modern industrial assembly.
Get a Quick Quote for a Rittal 6052500
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6052500?
Enquire Now
FAQs
The CP 6052.500 is designed for Rittal wall-mounted enclosures with a round Ø130 mm support arm connection. It installs in the mounting cut-out and provides a sealed cable entry. The unit ships with assembly parts and is compatible with standard enclosure frames that accept the 130 mm diameter gland module, facilitating straightforward upgrades and new builds alike.
The module achieves IP55 protection when installed correctly, offering protection against dust ingress and water jets from directed sources. This rating supports reliable operation in damp or dusty factory environments and is appropriate for most panel-mounted electrical installations requiring sealed cable entry.
Yes. One of the key benefits is retrospective mounting capability. The CP 6052.500 may be mounted after cables are already in place, enabling upgrade projects to proceed with minimal disassembly and reduced downtime, which is ideal for busy production lines and facilities undergoing incremental improvements.
The product aligns with IP55 protection under IEC 60529 when installed correctly and cable entry is sealed. It also adheres to industry classifications such as ETIM EC000879 and ECLASS 27069216, which support data-driven procurement and cross-system compatibility in industrial environments.
Installation benefits include reduced wiring work, fewer components, and included assembly parts, which shorten commissioning times. Lifecycle advantages stem from robust sheet steel construction, a zinc-plated finish for corrosion resistance, and predictable maintenance needs, contributing to lower total cost of ownership in harsh or long-term installations.
