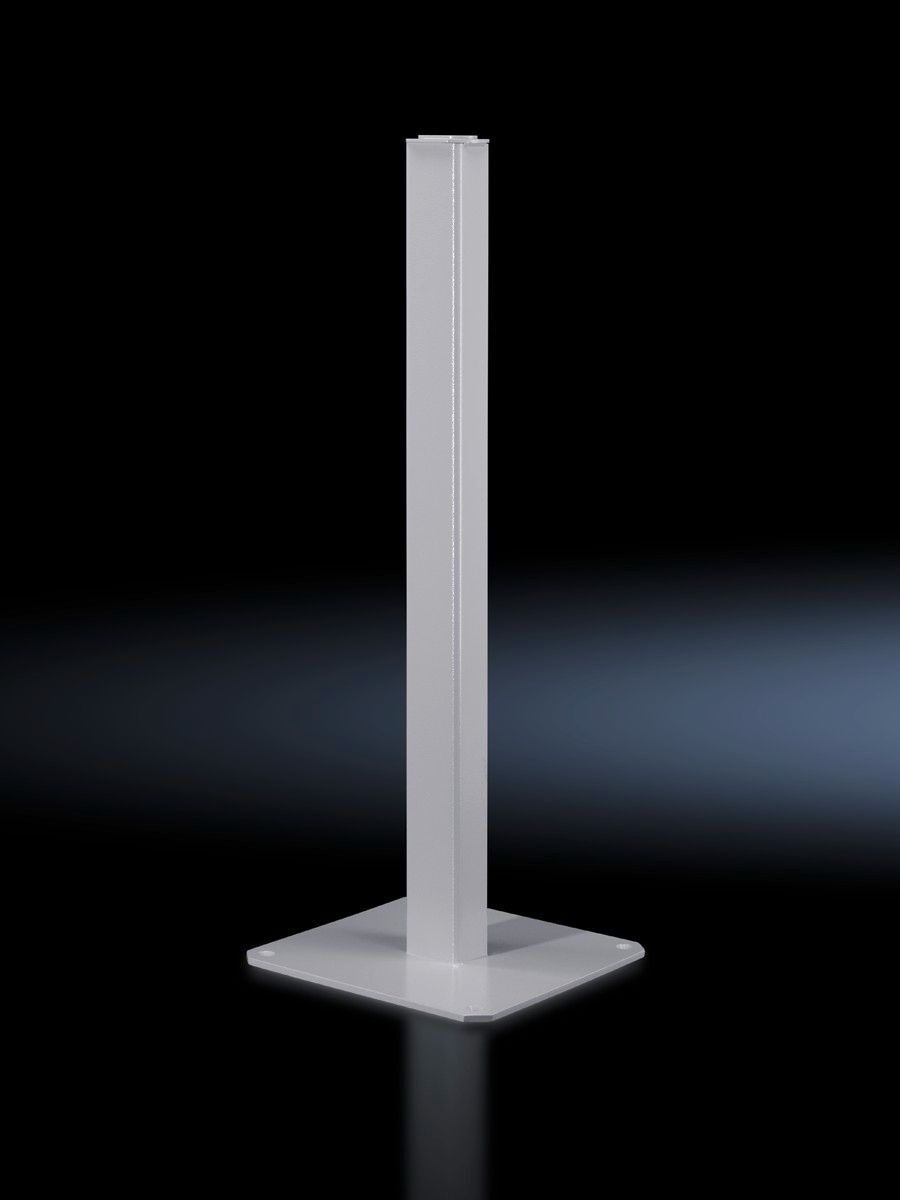

Rittal CP 6112.500 Pillar - Heavy-Duty 80 kg Load Capacity
Part Number: 6112500
Manufacturer
Rittal
Part number
6112500
Alt Part Number
CP 6112.500
Quick Summary
Rittal CP 6112.500 Pillar is a compact, heavy-load pedestal designed to support rugged equipment in compact enclosures. Engineers often struggle with base stability and compatibility when mounting heavy gear in tight control-panel footprints. The pillar aligns with CE-compliant design principles and is documented with ETIM EC002534 and ECLASS 27182604 to streamline procurement and integration. This welded, steel pillar with a spray-finished surface delivers consistent durability and predictable service life in demanding industrial environments. By pairing robust base plates and a tall pedestal, it supports heavy installations while remaining compatible with CP 120 systems, offering tangible efficiency gains and safer, more reliable assemblies for electrical infrastructure projects.
Product Information
Extended Description
6112500 Rittal: CP Pillar, small, CP 120, WHD: 500x1150x500 mm
Article number
CP 6112.500
Product description
The complete welded alternatives to the pedestal. For heavy installed equipment.
Material
Steel
Surface finish
Spray-finished
Colour
RAL 7035
Width base plate
480 mm
Height base plate
12 mm
Depth base plate
480 mm
Material thickness pedestal
4 mm
Pedestal tube cross-section depth
60 mm
Pedestal tube cross-section width
100 mm
Load capacity (static)
80 kg
Dimensions
Height: 1,159 mm
Packs of
1 pc(s).
Weight/pack
34.5 kg
PCF per pack (cradle-to-gate)
131.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177698475
ETIM 9
EC002534
ECLASS 8.0
27182604
Product description
CP Pillar, small, CP 120, WHD: 500x1150x500 mm
The CP 6112.500 Pillar combines a welded steel construction with a spray-finished surface, delivering high mechanical integrity and long service life in demanding industrial environments. This translates to reduced maintenance costs and minimized downtime when heavy equipment is mounted on CP 120 enclosures. The 480 x 480 mm base plate distributes load across a stable footprint, while the pedestal tube’s 60 x 100 mm cross-section supports up to 80 kg of static weight, ensuring equipment remains secure even in vibration-prone settings. Installation is straightforward thanks to clear dimensional references and a compatible CP pillar design, enabling rapid integration with CP 120 infrastructure and existing enclosure footprints. The design also aligns with established ETIM and ECLASS classifications to simplify procurement and specification workflows for electrical infrastructure projects. Long-tail keywords woven into the solution include CP Pillar small, heavy equipment pedestal, steel pillar for enclosures, spray-finished CP pillar, and CP 120 compatibility, all supporting efficiency gains, compliance assurance, and cost reduction in industrial automation projects.
Get a Quick Quote for a Rittal 6112500
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6112500?
Enquire Now
FAQs
The CP 6112.500 Pillar is designed as a welded pedestal compatible with CP 120 enclosure systems. It uses a 480x480 mm base plate and a 1,159 mm tall pedestal, with a pedestal cross-section of 60x100 mm to support up to 80 kg. For installation, align the base plate with the enclosure frame, secure using appropriate fasteners, and confirm that the equipment footprint aligns with the pedestal dimensions to ensure stability and safe operation.
The CP 6112.500 Pillar has a static load capacity of 80 kg and is manufactured from steel. The surface is spray-finished, and the base plate measures 480x480 mm with a base plate thickness of 12 mm, while the pedestal tube uses a 4 mm material thickness. These specifications deliver robust support for heavy equipment within CP 120 configurations.
Yes. The pillar is engineered to support heavy installed equipment within CP 120 enclosures, offering a stable base with a 480x480 mm footprint and a tall 1,159 mm pedestal. Its 80 kg static load rating, steel construction, and spray finish ensure durability and reliable performance in industrial control cabinet environments, contributing to safer, more organized installations.
The CP 6112.500 Pillar aligns with ETIM 9 EC002534 and ECLASS 8.0 27182604 classifications to aid specification and procurement workflows. While the data does not specify individual certifications like SIL or IP ratings, the design follows CE-regulatory expectations typical for European industrial components, supporting regulatory compliance and safer integration in standard electrical infrastructure projects.
The pillar uses welded steel construction with a spray-finished surface, offering high durability and resistance to wear in industrial environments. Its stable base and tall pedestal reduce vibration-induced wear and minimize maintenance. The 80 kg load rating supports heavy equipment without frequent replacement, contributing to lower lifecycle costs. The cradle-to-gate PCF is documented, aiding sustainability assessments in lifecycle analyses.
