Rittal CP 6143.310 Enclosure reinforcement - stainless steel 1.4301
Part Number: 6143310
Manufacturer
Rittal
Part number
6143310
Alt Part Number
CP 6143.310
Quick Summary
CP Enclosure reinforcement strengthens CP 40 enclosures for robust protection in industrial environments. When mounting heavy components or operating in high-vibration applications, unreinforced doors can warp or fail, increasing downtime. This product aligns with industry classifications ETIM EC002535 and ECLASS 27189271, supporting data exchange and procurement workflows. Designed for CP 40 cabinets, it enables straightforward retrofits and durable performance, reducing maintenance costs and extending cabinet life.
Product Information
Extended Description

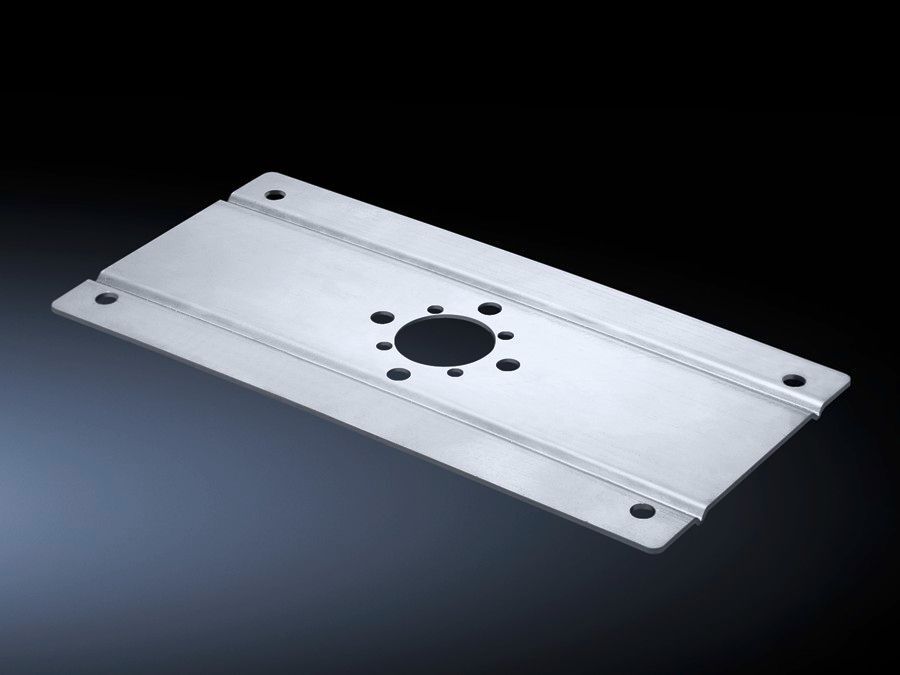

6143310 Rittal: CP Enclosure reinforcement, for CP 40, stainless steel, 1.4301
Article number
CP 6143.310
Product description
For external or internal reinforcement of enclosures of a corresponding size. Smaller enclosures may also be mounted directly without reinforcement.
Material
Stainless steel 1.4301 (AISI 304)
Supply includes
Assembly parts for the enclosure and support section plus 2 seals.
Installation options
for support arm connection stainless steel Ø 40 mm
Support arm connection (type)
CP 40
To fit
Width: ≥ 300 mm | Depth: ≥ 150 mm
Packs of
1 pc(s).
Weight/pack
0.9 kg
PCF per pack (cradle-to-gate)
3.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
83024900
EAN
4028177305748
ETIM 9
EC002535
ECLASS 8.0
27189271
Product description
CP Enclosure reinforcement, for CP 40, stainless steel, 1.4301
Feature: External or internal reinforcement for CP 40 enclosures. Business impact: Increases rigidity and load-bearing capacity, reducing door misalignment and panel flex that can cause leaks or ingress. Application: Ideal for cabinets that house heavy drives or heat-intensive electronics in demanding environments. Feature: Stainless steel 1.4301 (AISI 304) construction. Business impact: Corrosion resistance and long-term durability translate to lower maintenance and fewer part replacements. Application: Suitable for indoor and outdoor electrical infrastructure applications where exposure to humidity is a concern. Feature: Includes assembly parts and seals for a complete retrofit. Business impact: Minimizes downtime and eliminates the need for sourcing separate components, enabling faster upgrades. Application: Retrofit projects in production lines where uptime is critical. Feature: Installation options for CP 40 support arm connection Ø 40 mm. Business impact: Flexible mounting and reliable attachment reduce installation complexity and variability between sites. Application: Retrofit of CP 40 enclosures in existing installations with standardized Ø 40 mm support arms. Feature: Packs of 1 with weight 0.9 kg and PCF 3.4 kg CO2 eq (Cat B). Business impact: Lightweight module simplifies handling and transport; environmental footprint is quantified for sustainability reporting. Application: Procurement planning and lifecycle assessments for modular enclosure reinforcement. Feature: To fit widths ≥ 300 mm and depths ≥ 150 mm. Business impact: Clear dimensional criteria minimize misfit risk and ensure compatibility across CP 40 variants. Application: Specification checks during design reviews and BOM preparation.
Get a Quick Quote for a Rittal 6143310
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6143310?
Enquire Now
FAQs
Install the reinforcement using the provided assembly parts for the enclosure and the CP 40 support section. The kit supports a stainless steel Ø40 mm connection and includes seals to ensure a tight, corrosion-resistant seal. The process is straightforward for technicians familiar with CP 40 assemblies, and it minimizes downtime during retrofit.
The reinforcement is made from stainless steel 1.4301 (AISI 304), offering excellent corrosion resistance and structural integrity. With a weight of 0.9 kg per pack, the module provides durable support for CP 40 cabinets and helps maintain alignment under load, reducing long-term maintenance needs.
Yes, it is designed for CP 40 enclosures and specifies fitment for widths of at least 300 mm and depths of at least 150 mm. This ensures compatibility with a range of CP 40 variants, enabling standardized retrofits across multiple locations without custom engineering.
The package provides PCF data: 3.4 kg CO2 eq per pack (Category B). This cradle-to-gate estimate helps you assess environmental impact in lifecycle assessments and sustainability reporting for enclosure upgrades.
Consider rigidity improvement, reduced door misalignment, and lower downtime due to quicker retrofits. The kit includes all necessary parts, seals, and a straightforward installation path, which can translate to lower maintenance costs and predictable long-term return on investment in production environments.
