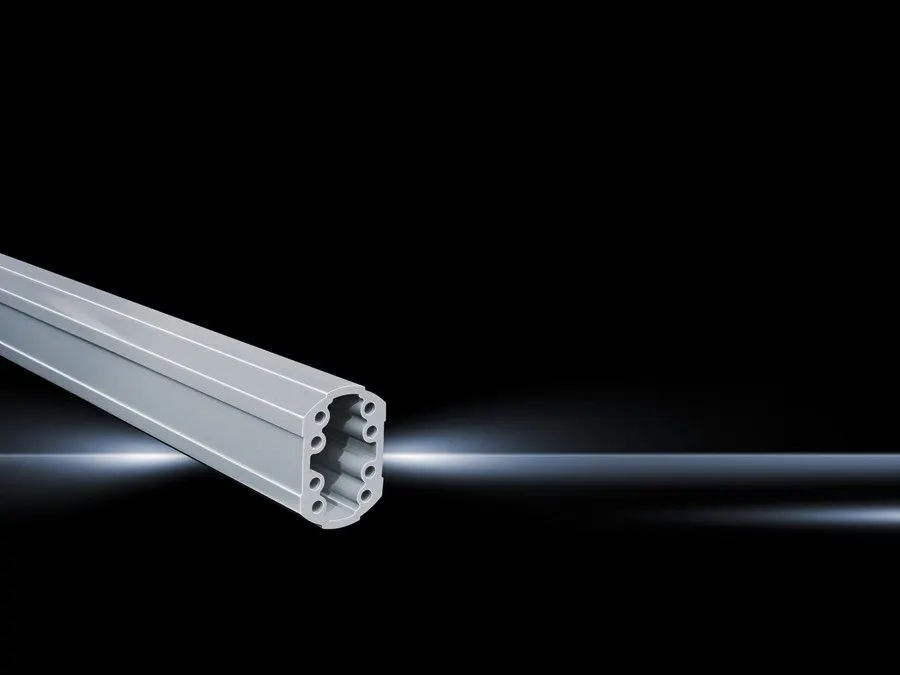

Rittal CP 6206.050 CP Support Section - Solid 500 mm

CP 60 CP Support Section uses an extruded aluminium section, is 500 mm long with a width of 59 mm and height of 85 mm, finished in RAL 7035, and supplied as a single support section. This combination provides a rigid, durable backbone for neat, repeatable cable routing in automation panels, delivering corrosion resistance and a professional finish across control cabinets. The attachment method uses four self-tapping screws in a dedicated screw channel, and the part can be cut to length on site without thread tapping, enabling fast field customization and reducing on-site tooling needs. A closed cable duct with a large cross-section supports higher cable density, improving organization, reducing crosstalk, and managing heat in compact panel layouts. Weighing 2.5 kg per pack and supplied as 1 pc, the CP 60 section simplifies logistics, installation planning and inventory management for engineering teams. Material consistency and color, plus ETIM EC000882 and ECLASS 27400556 alignment, ensure smooth BOM integration and procurement accuracy, helping procurement teams minimize part mismatches in automated plants. If you need longer spans, simply cut to length—no costly threading or rework required—extending the practical usability of this CP60 accessory across varied enclosure footprints.
