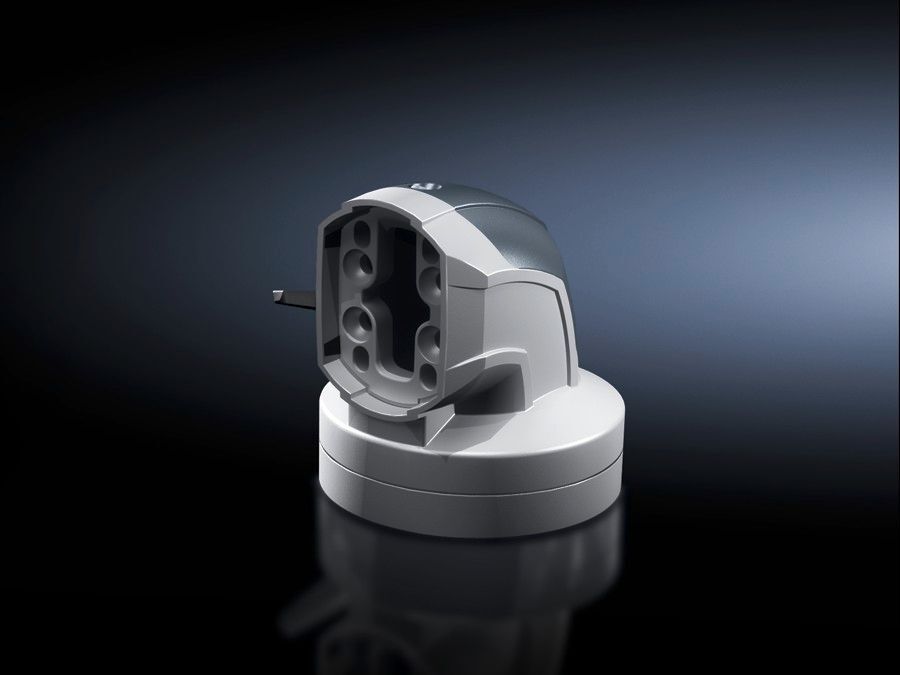

Rittal 6206380 CP Angle Coupling - 310° Swivel
Part Number: 6206380
Manufacturer
Rittal
Part number
6206380
Alt Part Number
CP 6206.380
Quick Summary
Rittal 6206380 CP Angle Coupling enables swivel mounting of an enclosure on the horizontal part of the support arm system. It is suitable for enclosures that may be suspended or top-mounted, addressing the challenge of reorienting cabinets without sacrificing cable management. This solution features a rotation capability of approximately 310° and a lockable mechanism to maintain position, along with a removable cover for straightforward cable entry. Designed for CE conformity in typical industrial deployments, it integrates with standard enclosure families to minimize custom fabrication. By standardizing mounting hardware and compatible components, you gain faster installation, easier maintenance, and improved layout flexibility, delivering higher uptime and predictable performance in control cabinet installations.
Product Information
Extended Description
6206380 Rittal: CP Angle coupling 90°, CP 60, for support arm connection Ø 130 mm
Article number
CP 6206.380
Product description
For swivel mounting of the enclosure on the horizontal part of the support arm system. Enclosure may be suspended or top-mounted. Removable cover for simple cable entry.
Material
Angle coupling: Cast aluminium/die-cast zinc | Cover: Plastic
Colour
Angle coupling: RAL 7035 | Cover: RAL 7024
Supply includes
Seals | Grub screws | Adjusting screws | Self-tapping screws for support section attachment
Rotating/tilting
Yes
Rotation angle/swivel area
approx. 310°, lockable via clamping levers
Packs of
1 pc(s).
Weight/pack
1.8 kg
Customs tariff number
79070000
EAN
4028177684393
ETIM 9
EC000882
ECLASS 8.0
27400556
Product description
CP Angle coupling 90°, CP 60, for support arm connection Ø 130 mm
Feature → Business Impact → Application: The CP Angle Coupling provides a 310° swivel with a lockable clamping lever, enabling dynamic orientation of enclosures as line layouts change, which reduces rework and downtime in machine frames and control panels. This translates to faster commissioning and simpler future reconfigurations in manufacturing cells and automation racks. Feature → Business Impact → Application: Constructed from cast aluminium and die-cast zinc with a plastic cover, the assembly offers durability with reduced weight, improving handling during installation and service work in harsh industrial environments. This combination supports long service life and easier field retrofits for control cabinets across packaging, material handling, and assembly lines. Feature → Business Impact → Application: The removable cover facilitates quick cable entry and routing, cutting installation time and preventing cable damage during rework or expansion projects. Feature → Business Impact → Application: Seals, screws, and adjusting hardware included streamline procurement and reduce field sourcing risk, simplifying retrofits and ensuring consistent mounting quality in existing enclosures. Feature → Business Impact → Application: Packaging and weight at 1.8 kg per pack (1 pc) allow safe, efficient handling by technicians on-site, enabling rapid deployment in limited-access installations and space-constrained panels.
Get a Quick Quote for a Rittal 6206380
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6206380?
Enquire Now
FAQs
The CP 6206380 is designed for CP 60 support arms with Ø130 mm connections. Align the angle coupling with the arm, attach using the included screws and seals, then tighten the adjusting screws to fix position. The removable cover simplifies initial cable entry during retrofit.
The assembly provides approximately 310° of rotation and is lockable via clamping levers. This allows precise orientation during installation and easy reorientation without disassembly.
Yes. The CP Angle Coupling supports both suspended and top-mounted configurations, enabling flexible cabinet presentation while maintaining cable integrity and access.
The product aligns with CE-oriented industrial practices and is compatible with ETIM EC000882 and ECLASS 27400556 classifications. For specific regulatory certifications, consult the current datasheet or contact Rittal directly.
By enabling rapid reorientation and straightforward cable entry with a removable cover, downtime during reconfigurations is reduced. Standardized hardware and readily available seals and screws shorten procurement cycles and improve long-term maintenance planning.
