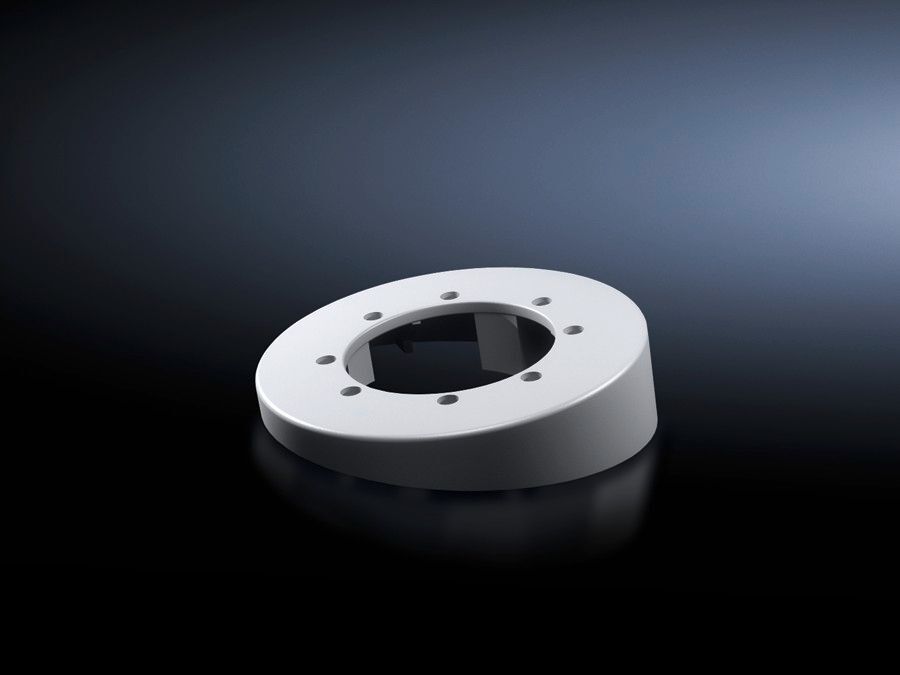

Rittal CP 6206.400 Tilting Adaptor - Die-cast Zinc
Part Number: 6206400
Manufacturer
Rittal
Part number
6206400
Alt Part Number
CP 6206.400
Quick Summary
Rittal CP 6206.400 Tilting Adaptor enables a precise 10° tilt between CP 60/120 couplings and the command panel in control enclosures. This helps technicians avoid misalignment during panel mounting, reducing commissioning time and rework. The part uses durable die-cast zinc and finishes in RAL 7035, contributing to enclosure longevity, while RFID-ready options support smarter asset tracking. Note that explicit CE or IP ratings aren’t listed in the provided data, but the adaptor is designed to integrate with standard CP 60/120 assemblies, preserving enclosure integrity. For procurement, it delivers predictable fit with CP 60/120 families, supporting fast installation and reliable long-term operation in automation panels.
Product Information
Extended Description
6206400 Rittal: CP Tilting adaptor 10°, CP 60/120, for support arm connection Ø 130 mm
Article number
CP 6206.400
Design
For mounting between the command panel and | Coupling CP 60/120/180 for support arm connection Ø 130 mm, 6206.300, 6212.300, 6218.300 | Attachment CP 60/120 for support arm connection Ø 130 mm, 6206.320, 6212.320 | Angle coupling 90°, system 60/120 for support arm connection Ø 130 mm, CP 6206.380, 6212.380
Product description
For mounting between coupling, system 60/120 or attachment, system 60/120 or angle coupling, system 60/120, and the command panel
Material
Die-cast zinc
Colour
RAL 7035
Supply includes
Seals | Assembly parts
Rifid y/n
Yes
Packs of
1 pc(s).
Weight/pack
0.6 kg
Customs tariff number
79070000
EAN
4028177684423
ETIM 9
EC000882
ECLASS 8.0
27400556
Product description
CP Tilting adaptor 10°, CP 60/120, for support arm connection Ø 130 mm
Feature: The CP 6206.400 delivers a 10° tilt between CP 60/120 couplings and the command panel, enabling precise alignment. Business impact: this reduces commissioning time and minimizes rework caused by misaligned panels. Application: ideal for control enclosures using Ø130 mm support-arm connections to maintain consistent geometry across mounting interfaces. Feature: Die-cast zinc construction provides a robust mounting interface with high rigidity. Business impact: the durable material resists deformation under vibration and temperature variations common in automation environments. Application: compatible with CP 60/120 assemblies and related variants to preserve enclosure integrity over the product life cycle. Feature: Supplied seals and assembly parts ensure a complete installation package. Business impact: simplifies procurement and reduces downtime by removing the need for separate accessory orders. Application: supports reliable sealing and consistent fit when joining the command panel to coupling and attachment components. Feature: Finish in RAL 7035 and RFID-ready options enhances compatibility and asset tracking. Business impact: maintains standardized appearance and enables proactive maintenance planning. Application: suitable for environments where visual consistency and inventory control are important across CP 60/120 systems. Feature: Pack size is 1 piece and weight is 0.6 kg per pack. Business impact: enables straightforward stocking and predictable logistics. Application: easy to slot into replenishment cycles and field kits for control cabinets. Feature: ETIM 9 EC000882 and ECLASS 8.0 classifications ensure procurement data quality. Business impact: improves ERP/PLM integration, reduces data mismatches, and accelerates BOM generation. Application: supports automated catalog syncing with standard industry taxonomies for CP 60/120 accessories. Feature: RFID-ready integration supported by the product design. Business impact: enables asset tagging and lifecycle tracking in maintenance programs. Application: ideal for plant-wide cabinet inventories and warranty management.
Get a Quick Quote for a Rittal 6206400
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6206400?
Enquire Now
FAQs
To install, align the adaptor between the CP 60/120 coupling and the command panel, insert seals, and secure with the appropriate fasteners. Ensure the Ø130 mm arm connection is clean and free of debris, then tighten to the manufacturer’s torque recommendations. Verify the 10° tilt before commissioning to prevent misalignment delays.
Yes. The CP 6206.400 is designed for CP 60/120 systems with a support-arm connection Ø130 mm, providing a precise 10° tilt to optimize alignment between the panel and coupling components.
The adaptor is made from die-cast zinc and finished in RAL 7035. It ships with seals and assembly parts included, and its 0.6 kg unit weight supports easy handling and stocking in standard field kits.
The package includes seals and assembly parts required for installation. This eliminates the need to source additional accessories separately and ensures a complete mounting solution for CP 60/120 configurations.
Use it to create a controlled 10° tilt between the CP 60/120 mounting interface and the command panel, particularly where Ø130 mm arm connections are used. It improves panel accessibility, reduces commissioning time, and supports robust, durable installation within standard enclosure ecosystems.
