Rittal CP 6206.460 Tilting Adaptor - +100° for CP 60/120
Part Number: 6206460
Manufacturer
Rittal
Part number
6206460
Alt Part Number
CP 6206.460
Quick Summary
Rittal CP 6206.460 tilting adaptor enables adjustable mounting on CP 60/120 support arms for on-top IW workstations. Engineers often contend with cramped enclosures where cable routing and access to components become time-consuming, impacting maintenance windows. Verify CE conformity, IP protection for mounting accessories, and SIL safety considerations to ensure compliant installations. Designed to integrate with CP enclosures and a 120 x 65 mm arm, it provides a 130 mm diameter cable entry and a VESA standard interface for approved displays, enabling flexible orientation and reliable cable management. By delivering precise tilt control and straightforward installation, it reduces downtime and accelerates service routines while staying compatible with standard CP assembly methods.
Product Information
Extended Description

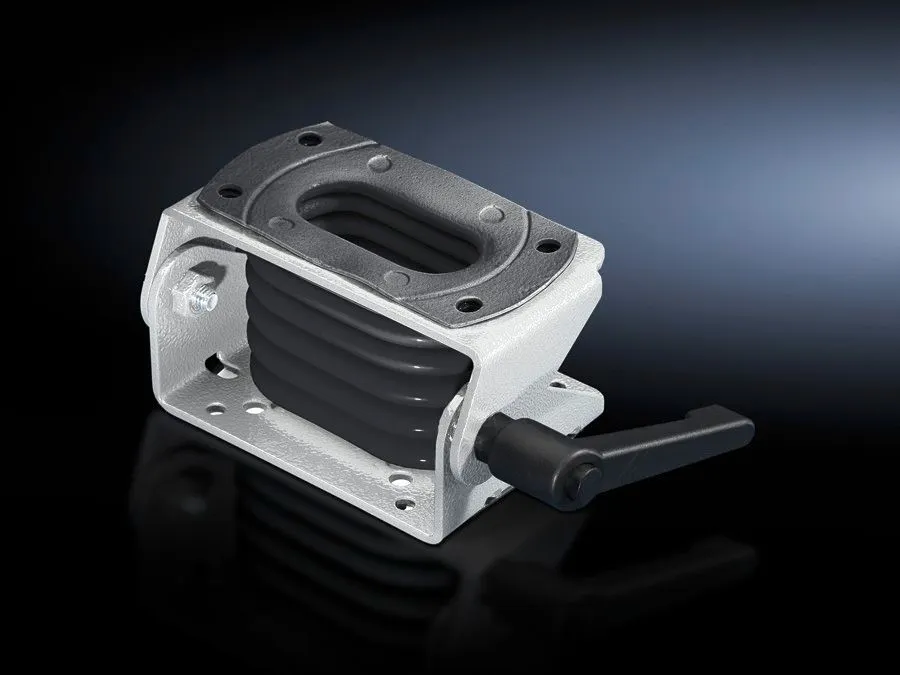

6206460 Rittal: CP Tilting adaptor +100°/-60°, CP 60/120, for support arm connection 120 x 65 mm
Article number
CP 6206.460
Design
For mounting on | IW worktop, prepared for attachment of 130 mm diameter | Surfaces | Attachment/coupling with support arm connection 120 x 65 mm | To fit enclosures up to 20 kg with support arm connection | 90 x 71 mm | Ø 130 mm | 120 x 65 mm | VESA Standard 75 | With cable tube for protected cable entry
Product description
Tilting angle adjustable in 7.2° increments via clamping lever and may be limited to +100°/–15° using the stop screw supplied loose.
Material
Tilting adaptor: Sheet steel, spray-finished | Concertina section: Plastic
Colour
Tilting adaptor: RAL 7035 | Concertina section: RAL 7024
Supply includes
Assembly parts | Concertina section
Rotating/tilting
Yes
Tilt angle note
Adjustable in 7.2° increments via clamping lever and may be limited to +100°/-15° using the stop screw supplied loose
Packs of
1 pc(s).
Weight/pack
0.8 kg
PCF per pack (cradle-to-gate)
3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177684454
ETIM 7.0
EC000882
ECLASS 8.0
27400556
Product description
CP Tilting adaptor +100°/-60°, CP 60/120, for support arm connection 120 x 65 mm
Tilting range and adjustment deliver a precise orientation of mounted equipment. The CP 6206.460 offers a tilt range up to +100° and down to -60°, with 7.2° incremental positioning via a clamping lever. A stop screw allows limiting the motion to +100°/-15°, providing repeatable setpoints for repeated tasks. Structural durability and protection are achieved with a tilting adaptor made from sheet steel with a spray finish, while the concertina section is plastic for flexible cable protection. This combination supports rugged industrial use and reduces wear at moving joints. Mounting compatibility ensures effortless integration with CP 60/120 and IW worktops, with a 120 x 65 mm support arm connection and Ø130 mm cable entry. The product also aligns with VESA Standard 75, aiding multi-application configurations in workcells and control panels. Operational efficiency and sustainability: assembly parts are included, streamlining installation and reducing procurement steps. The unit weighs 0.8 kg per pack and ships as 1 piece, with cradle-to-gate PCF of 3 kg CO2 eq, supporting environmental goals. Installation and service considerations: the tilt range can be limited to prevent accidental movement; the design supports up to 20 kg loads on the arm connection, ensuring safe operation with typical enclosures.
