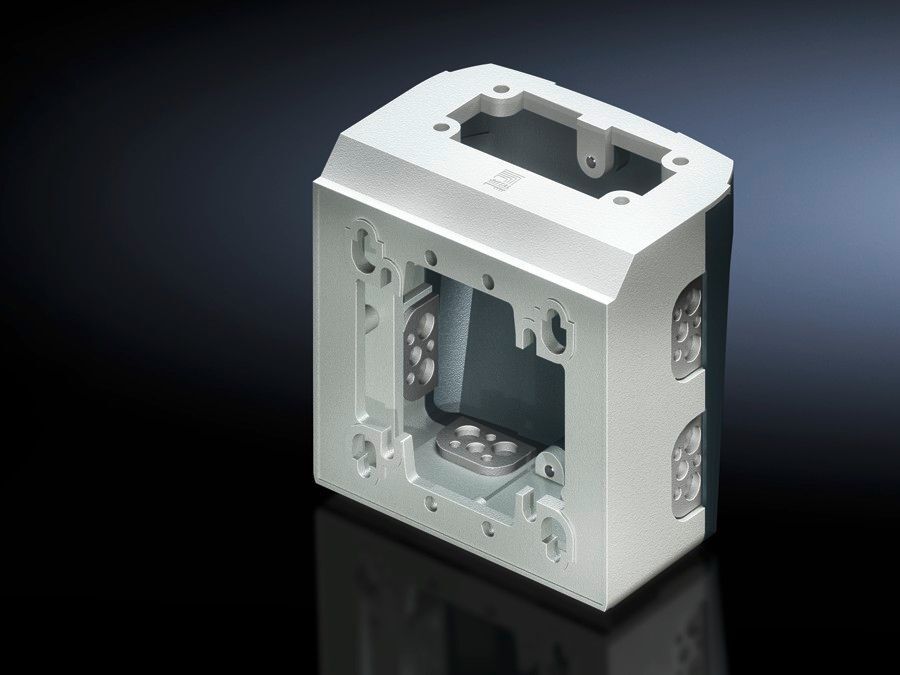

Rittal CP 6206.480 Connection Console VESA 75/100
Part Number: 6206480
Manufacturer
Rittal
Part number
6206480
Alt Part Number
CP 6206.480
Quick Summary
The CP connection console CP 6206.480 enables rear mounting of VESA 75/100 displays in control cabinets. This compact, one-person assembly solution addresses the challenge of precise alignment and secure mounting in tight enclosures. While not all certifications are listed in this data set, the design uses durable die-cast zinc and supports a robust 800 N load, underscoring suitability for industrial environments. The unit integrates seamlessly with Rittal CP 40, CP 60, and CP 120 support arm systems via adapters, and its color-coded components (console in RAL 7035; cover in RAL 7024) simplify installation and service. For procurement and integration, ETIM and ECLASS references help ensure consistent cataloging and downstream compatibility.
Product Information
Extended Description
6206480 Rittal: CP Connection console VESA 75/100
Article number
CP 6206.480
Design
Connection to Rittal support arm systems
Product description
For rear connection of flat command panels, standard TFTs and industrial PCs with VESA 75 / 100 connection.
Benefits
Fast, simple one-man assembly using machined keyholes
Material
Die-cast zinc
Colour
Connection console: RALÂ 7035 | Cover: RALÂ 7024
Supply includes
Seal and assembly parts | Cable ties for cable clamping
Rifid y/n
Yes
Note
Depending on the application, an attachment, coupling or adaptor are required
Load capacity
800 N
Packs of
1 pc(s).
Weight/pack
1.1 kg
Customs tariff number
79070000
EAN
4028177693920
ETIM 9
EC002622
ECLASS 8.0
27189263
Product description
CP Connection console VESA 75/100
Feature: VESA 75/100 rear connection enables clean panel integration. Business impact: reduces mounting time, eliminates misalignment, supports one-man installation. Application: rear mounting of flat command panels, standard TFTs, and industrial PCs in control cabinets. Feature: Compatibility with CP arm systems CP40/60/120 via adaptor. Business impact: scalable mounting for modular automation setups, improving room for future upgrades. Application: retrofit or expansion projects where panel ecosystems evolve over time. Feature: Die-cast zinc construction. Business impact: rugged durability and long life in harsh environments, lowering maintenance costs. Application: industrial cabinets with high vibration or frequent handling. Feature: High load capacity of 800 N. Business impact: supports heavier displays and equipment without compromise, reducing rework. Application: large TFTs and compact industrial PCs. Feature: Machined keyhole assembly for fast fit. Business impact: enables quick, one-person installation, shortening project timelines. Application: on-site mounting with minimal tools. Feature: Color-coded components (RAL 7035 console, RAL 7024 cover). Business impact: reduces installation errors, streamlines service, and improves traceability. Application: field service and maintenance routines. Feature: Supplied seals and cable ties. Business impact: cleaner cable management and fewer additional purchases. Application: integrated cabling during assembly. Feature: ETIM EC002622 and ECLASS 27189263 alignment. Business impact: consistent data classification across procurement systems. Application: ERP and purchasing workflows.
Get a Quick Quote for a Rittal 6206480
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6206480?
Enquire Now
FAQs
Installation starts with preparing the enclosure and ensuring a flat mounting surface for the VESA pattern. The CP 6206.480 uses machined keyholes for fast, one-person mounting, then aligns the rear connection to your display or panel. Attach via adapters when integrating with CP 40, CP 60, or CP 120 arms, secure with supplied seals, and finish with cable ties for tidy management. Expect a streamlined process even in confined spaces, thanks to its compact zinc die-cast design.
Yes. The CP 6206.480 is designed for connection to Rittal support arm systems and can be paired with CP 40, CP 60, and CP 120 using the appropriate adaptor. This compatibility provides scalable mounting for evolving automation layouts, enabling easy upgrades without replacing the console entirely.
Key specs include article number CP 6206.480, material die-cast zinc, finish console in RAL 7035 and cover in RAL 7024, load capacity 800 N, weight per pack 1.1 kg, and a packaging of 1 piece. It’s intended for rear mounting of VESA 75/100 panels, with seals and cable ties included for cable management.
This console excels in rear-mounting flat command panels, standard TFTs, and industrial PCs with VESA 75/100 compatibility. It supports tight cabinet configurations, improves accessibility for maintenance, and partners with Rittal arm systems to enable modular, upgrade-friendly control cabinets in factory automation and process automation environments.
The provided data does not list explicit CE or IP certifications for this item. For confirmation, consult the official Rittal datasheet or contact the supplier. You can also verify compliance through ETIM EC002622 and ECLASS 27189263 classifications referenced in the product data for procurement consistency.
