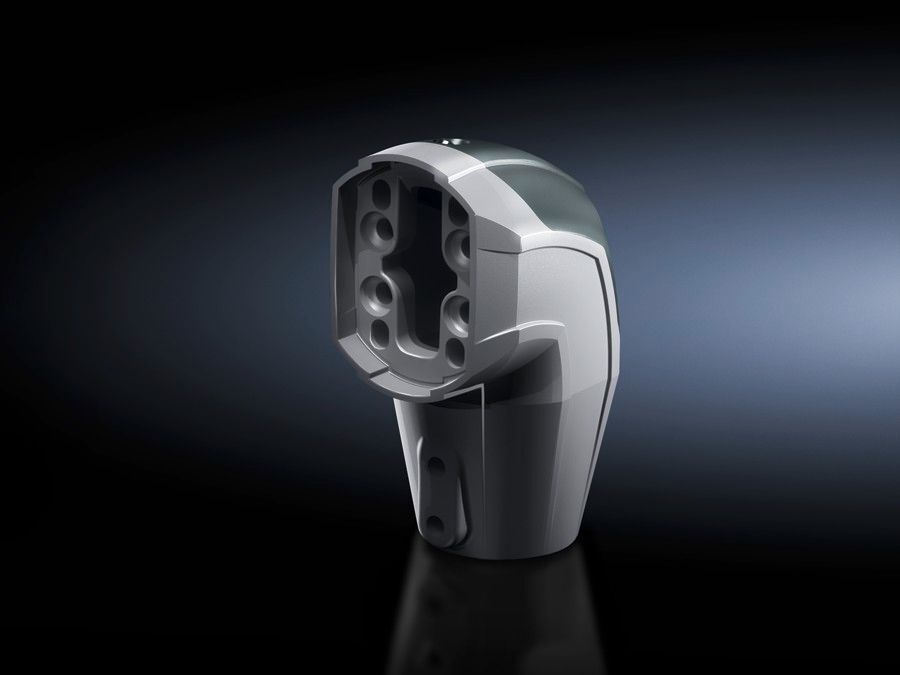

Rittal CP 6206.640 Angle Adaptor - Integral adjustment
Part Number: 6206640
Manufacturer
Rittal
Part number
6206640
Alt Part Number
CP 6206.640
Quick Summary
Rittal CP 6206.640 Angle Adaptor is a 90° connection accessory for linking CP 60 horizontal to CP 40 vertical support arms. It simplifies alignment and mounting, reducing commissioning time and field adjustments. The part supports integral adjustment facility for precise positioning without extra shims. While certification details such as CE or IP ratings are not provided in the data, verify with Rittal documentation for compliance. The adaptor uses cast aluminium for strength and a plastic cover, finished in contrasting RAL shades for visibility and durability. Designed for enclosure ecosystems, it enables repeatable installations, preserves mounting rigidity, and helps maintenance teams achieve consistent performance across multiple cabinets and lines.
Product Information
Extended Description
6206640 Rittal: CP Angle adaptor 90°, for support arm combination CP 60 to CP 40
Article number
CP 6206.640
Benefits
Integral adjustment facility
Applications
Connection component from CP 60 horizontal to CP 40 vertical
Material
Angle adaptor 90°: Cast aluminium | Cover: Plastic
Colour
Angle adaptor 90°: RAL 7035 | Cover: RAL 7024
Supply includes
Seals | Adjusting screws | Self-tapping screws and clamping screws for support section attachment
Rifid y/n
Yes
Packs of
1 pc(s).
Weight/pack
1 kg
Customs tariff number
79070000
EAN
4028177693913
ETIM 9
EC000882
ECLASS 8.0
27189263
Product description
CP Angle adaptor 90°, for support arm combination CP 60 to CP 40
Feature → Business Impact → Application: Integral adjustment facility enables quick, precise alignment, reducing commissioning time and labor costs on CP 60 to CP 40 assemblies, ideal for high-mix production lines. Feature → Business Impact → Application: 90° orientation supports space-efficient layouts in tight cabinet banks, enabling more compact enclosure configurations and easier cable routing in industrial environments. Feature → Business Impact → Application: Cast aluminium body with plastic cover provides rugged strength and durable appearance, increasing long-term reliability in vibration-prone manufacturing settings while preserving a clean enclosure aesthetic. Feature → Business Impact → Application: Seals, adjusting screws, self-tapping screws, and clamping screws included streamline installation, reducing field hardware sourcing and project lead times. Feature → Business Impact → Application: Compatibility with CP 60/CP 40 frames ensures repeatable installations across multiple enclosures, reducing training time for maintenance teams and enabling scalable infrastructure. Feature → Business Impact → Application: ETIM and ECLASS mappings (EC000882, 27189263) support accurate part classification in procurement systems, improving BOM accuracy and supplier collaboration.
Get a Quick Quote for a Rittal 6206640
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6206640?
Enquire Now
FAQs
Verify CP 60 horizontal and CP 40 vertical compatibility, align the adaptor correctly, fit seals, and secure with the supplied adjusting, self-tapping and clamping screws. Ensure orientation is 90°, then tighten and verify alignment before commissioning. This minimizes rework and ensures consistent mounting rigidity.
The part is a 90° angle adaptor with a cast aluminium body and a plastic cover. Finish colors are RAL 7035 for the body and RAL 7024 for the cover. It’s supplied with seals and fixing hardware; article number CP 6206.640; weight per pack is 1 kg; EAN 4028177693913.
Yes. It is specifically designed as a connection component to join CP 60 horizontal to CP 40 vertical arms, enabling robust, repeatable installations within typical Rittal enclosure ecosystems while preserving mounting integrity and alignment.
The provided data lists ETIM 9 EC000882 and ECLASS 8.0 27189263 classifications. Explicit CE, IP, or SIL certifications are not specified here; please consult official Rittal documentation or technical sheets to confirm regulatory compliance for your region and application.
By enabling integral adjustment and precise 90° connections, the adaptor reduces commissioning time and field adjustments, lowering labor costs. Its durable cast aluminium body withstands vibration, while seals and included hardware shorten installation time and improve long-term reliability across multiple cabinets and lines.
