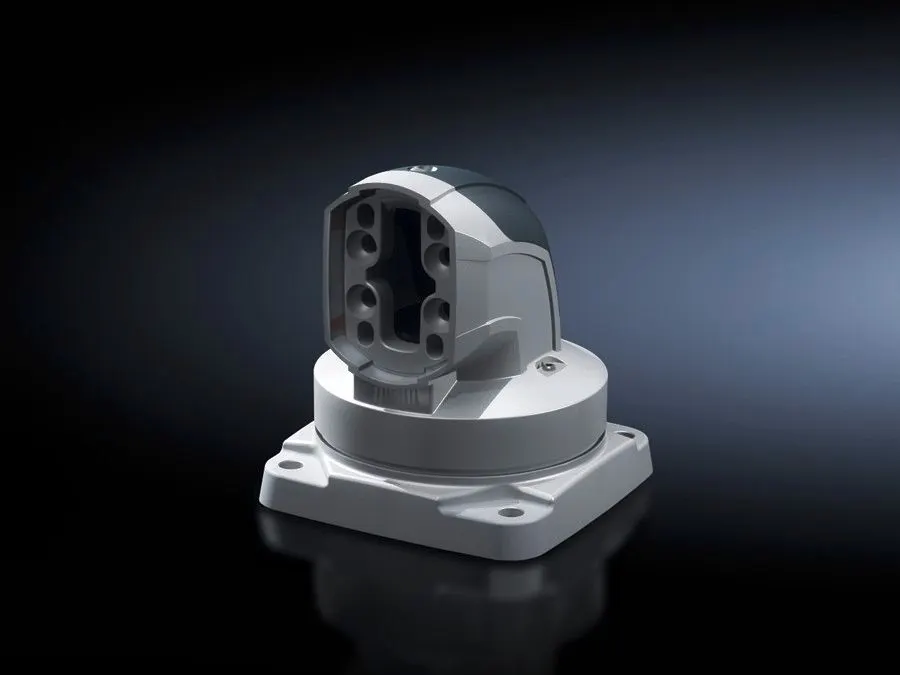

Rittal 6206700 CP Top-mounted joint CP 60 - 330° swivel
Part Number: 6206700
Manufacturer
Rittal
Part number
6206700
Alt Part Number
CP 6206.700
Quick Summary
CP Top-mounted joint CP 60 enables swivel mounting of the support arm system on horizontal surfaces for flexible enclosure installations. This accessory addresses the common challenge of routing cables cleanly while maintaining full range of motion in tight spaces. In typical industrial environments, reliability matters; the joint supports rotating/tilting with a swivel area of about 330°, and uses a durable cover and top-mounted aluminium joint, with color-coded components for easy orientation. Certifications for this specific part are not listed in the data; in standard practice CE conformity and IP-rated protection are often expected in enclosure accessories from Rittal, supporting safe operations, long service life, and compliance. When used with standard enclosures, you gain installation efficiency and scalable mounting options, translating into reduced downtime and easier maintenance.
Product Information
Extended Description
6206700 Rittal: CP Top-mounted joint CP 60, outlet horizontal
Article number
CP 6206.700
Product description
For swivel mounting of the support arm system on horizontal surfaces – also suitable for suspending from the ceiling. Removable cover for simple cable entry.
Material
Cover: Plastic | Top-mounted joint: Cast aluminium
Colour
Cover: RAL 7024 | Top-mounted joint: RAL 7035
Supply includes
Seals | Screws for restricting rotation range | Adjusting screws | Self-tapping screws for support section attachment
Rotating/tilting
Yes
Rotation angle/swivel area
approx. 330°.
Dimensions
Width: 146 mm | Height: 158 mm
Packs of
1 pc(s).
Weight/pack
2.2 kg
Customs tariff number
76169990
EAN
4028177684294
ETIM 9
EC000882
ECLASS 8.0
27400556
Product description
CP Top-mounted joint CP 60, outlet horizontal
Feature: Removable cover enables easy cable entry and clean cable management. Business impact: Speeds up installation and reduces risk of damage during wiring transitions. Application: Ideal for horizontal mounting on workbenches or under benches, and for ceiling-suspended configurations where access is constrained. Feature: Top-mounted joint made from cast aluminium with a durable plastic cover. Business impact: Delivers robust mechanical support with reduced wear, extending service life in vibration-prone environments. Application: Suitable for control panels in manufacturing lines and outdoor enclosures where protective contrast between components aids reliability. Feature: Rotating/tilting capability with a swivel angle of approximately 330°. Business impact: Improves accessibility and positioning accuracy of attached arms, enabling precise alignment and easier maintenance checks. Application: Versatile in automated systems requiring frequent reorientation of sensors, actuators, or cables without disassembly. Feature: Complete with seals and screws for restricting rotation range and mounting attachment. Business impact: Ensures safe, repeatable motion and simplifies initial setup, reducing commissioning time. Application: Works with standard support sections and enclosure frames to maintain consistent installation standards. Feature: Compact dimensions Width 146 mm, Height 158 mm, Weight 2.2 kg per pack. Business impact: Facilitates space planning and load distribution within compact enclosures, lowering cabinet footprint. Application: Suitable for compact control panels and modular enclosure clusters in automation lines.
Get a Quick Quote for a Rittal 6206700
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6206700?
Enquire Now
FAQs
Yes. The CP Top-mounted joint CP 60 is designed to integrate with standard enclosure frames and support sections. Its dimensions, 146 mm width and 158 mm height, are compatible with typical mounting footprints, and the supplied seals and screws simplify accurate alignment and secure attachment during the initial setup.
The joint provides rotating/tilting capability with an approximate 330° swivel range. Adjustments are performed using the included screws for restricting rotation and the supplied seals, which help set the desired movement stop. This ensures repeatable positioning while preventing over-rotation in tight spaces.
Best suited for horizontal mounting of support arm systems and for ceiling-suspended configurations in control cabinets and automation cells. It excels where cable routing is critical, space is limited, and frequent reorientation of sensors or actuators is required, enabling quicker service access and cleaner cable management.
The provided data does not specify explicit certifications such as CE or IP ratings. In typical industrial practice, enclosure accessories from Rittal align with CE conformity and protective ratings; verify the current certification status with the supplier or refer to formal documentation for confirmation on your installation.
The removable cover simplifies cable entry and routine inspection, reducing maintenance downtime. Durable aluminium construction plus seals maintains performance under vibration and temperature cycling, contributing to longer service life and lower replacement costs. The ease of installation also shortens commissioning time and supports ongoing system reliability.
