Rittal CP 6206.870 Pivot - integral rotation restricter
Part Number: 6206870
Manufacturer
Rittal
Part number
6206870
Alt Part Number
CP 6206.870
Quick Summary
Rittal CP 6206.870 Pivot enables direct, vertically hinged integration into machines and systems. Engineers often struggle with limited space, awkward clearance, and misalignment during panel installs. The solution aligns with CE conformity and leverages ETIM 9 EC002622 and ECLASS 8.0 27189263 for streamlined procurement and compliance workflows. It also supports standard machine-building practices, ensuring top-mounted or suspended installation. By simplifying installation and enabling safe, full-access operation, the design delivers faster commissioning and reduced downtime, while helping you standardize with existing enclosure ecosystems and improving total cost of ownership.
Product Information
Extended Description

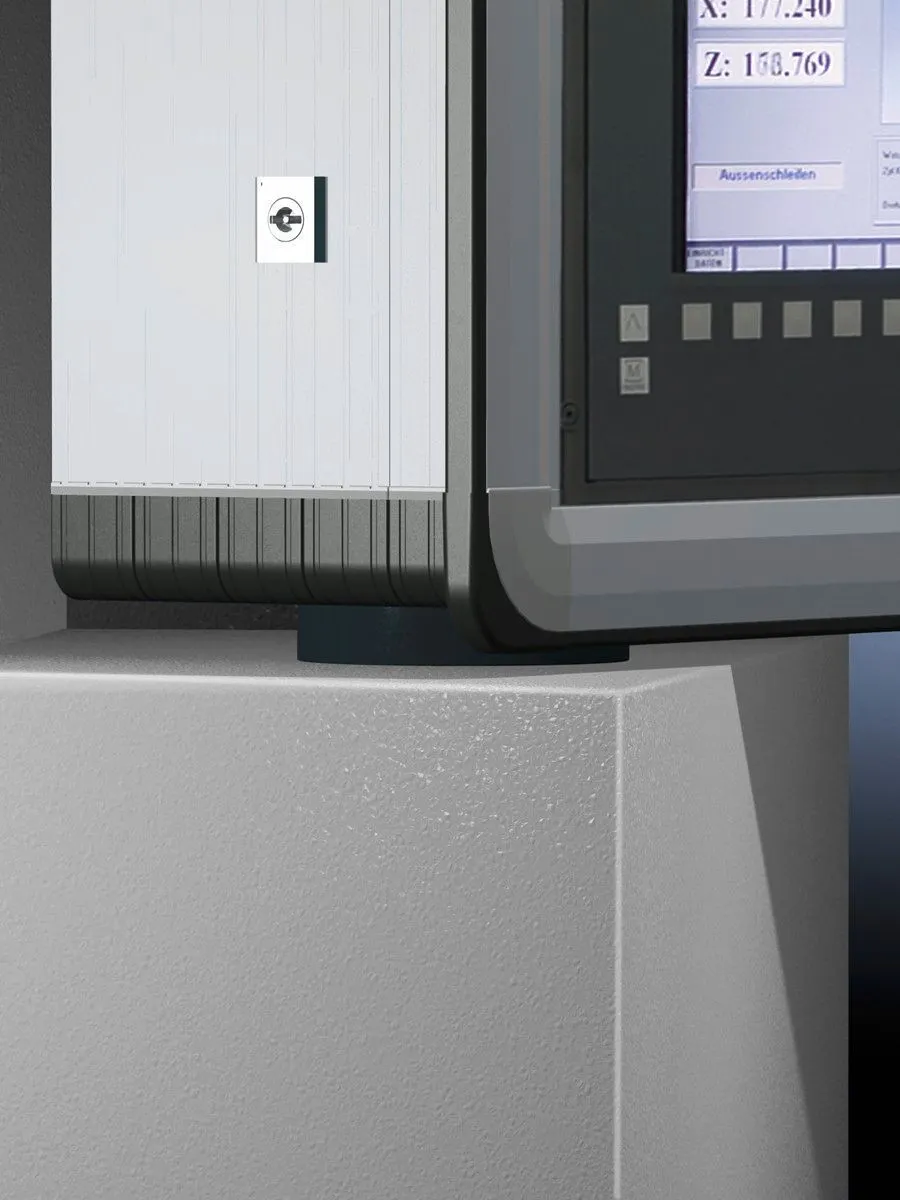

6206870 Rittal: CP Pivot without jib, for machine-integrated installation
Article number
CP 6206.870
Design
Pivot without jib
Product description
For direct, vertically hinged integration into machines and systems.
Benefits
With integral rotation range restricter
Applications
Enclosure suspended or top-mounted
Colour
RAL 7035
Installation options
To fit enclosures with support arm connection Ø 130 mm
Load capacity (static)
700 N
Rotation angle/swivel area
approx. 310°
Packs of
1 pc(s).
Weight/pack
1.46 kg
Customs tariff number
76169990
EAN
4028177707948
ETIM 9
EC002622
ECLASS 8.0
27189263
Product description
CP Pivot without jib, for machine-integrated installation
Pivot without jib design enables direct machine integration, reducing footprint and installation time, while minimizing misalignment during commissioning. This translates to faster time-to-value and easier daily operation in automated lines. Application: machine-integrated enclosures and systems. Integral rotation range restricter enhances safety by preventing over-rotation and protecting internal components during maintenance; benefit is predictable movement and reduced risk of damage. Application: automation panels and top-mounted or suspended installations. Load capacity of 700 N (static) supports heavier doors and components, reducing sag, wear, and the need for frequent adjustments. Application: durable installations in demanding environments. Rotation angle of approximately 310° provides broad access, simplifying cable management, inspection, and servicing. Application: robotics, packaging lines, and complex machinery. Installation options for Ø130 mm support arm ensure easy retrofits and compatibility with standard enclosure configurations; benefit is lower installation costs and faster upgrades. Application: modular systems and multi-bay installations. Finish in RAL 7035 delivers consistent aesthetics for serviceability and inventory planning. Application: integrated manufacturing environments.
Get a Quick Quote for a Rittal 6206870
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6206870?
Enquire Now
FAQs
Yes. The CP 6206.870 is designed to fit enclosures with a support arm connection of Ø130 mm, enabling straightforward retrofits or new builds. Its pivot-without-jib design supports direct machine installation and top-mounted or suspended configurations, simplifying alignment and reducing commissioning time.
Key performance specs are a rotation angle of approximately 310°, a static load capacity of 700 N, and a weight of 1.46 kg per pack. The integral rotation range restricter ensures safe, controlled movement, protecting components during maintenance and operation.
Yes. The pivot without jib design is well-suited for direct machine integration, enabling fast access to internal components in automation panels, packaging lines, and robotics enclosures while maintaining enclosure integrity and safety.
The product aligns with ETIM 9 EC002622 and ECLASS 8.0 27189263 for procurement data, and it supports CE conformity to European safety requirements, aiding compliance in European machine-building projects.
By enabling safer, faster access to interior components with predictable movement and fewer misalignments, maintenance is quicker, downtime is reduced, and total cost of ownership is lowered over the equipment lifecycle.
