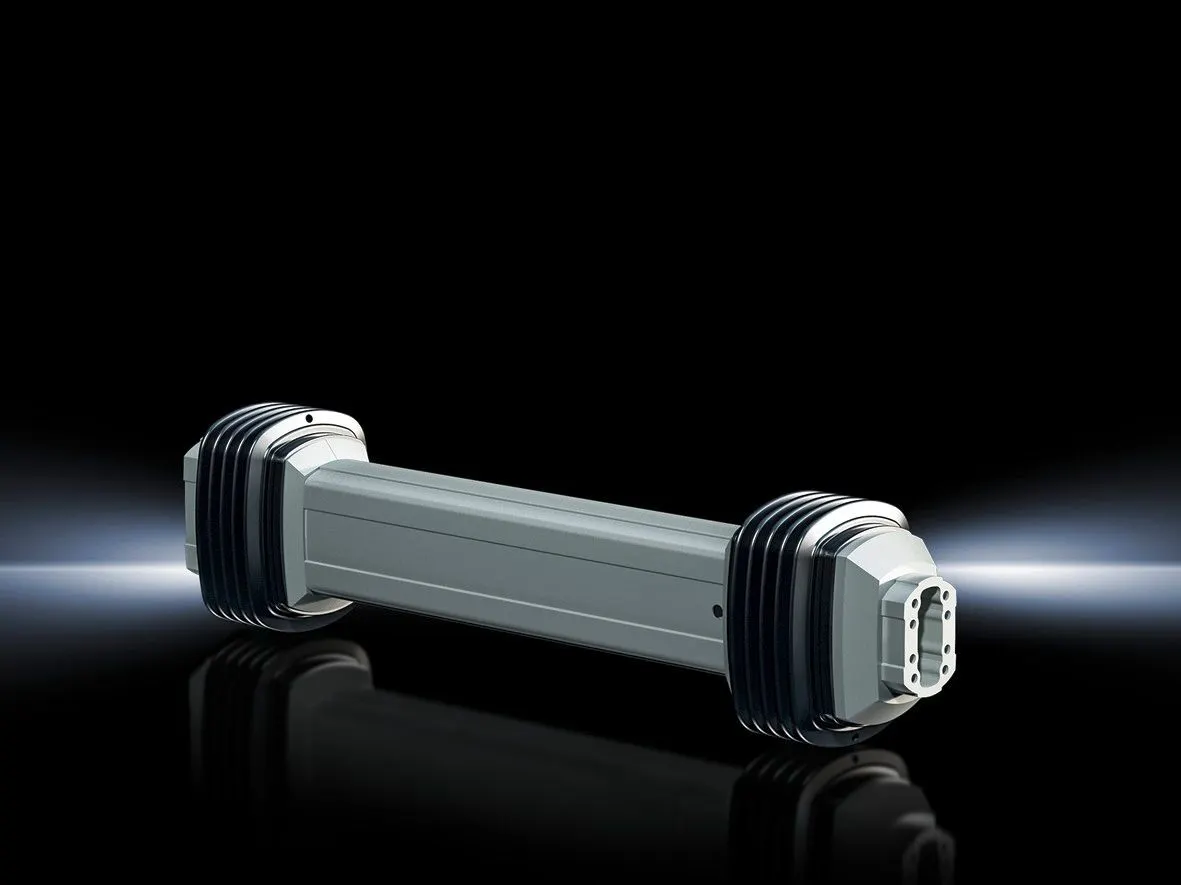

Rittal CP 6212.060 Height-Adjustable Support - 4-30 kg
Part Number: 6212060
Manufacturer
Rittal
Part number
6212060
Alt Part Number
CP 6212.060
Quick Summary
Rittal CP 6212.060 height-adjustable support section enhances visibility of key parameters in human/machine interfaces. It adapts to operator height variance and workflow, reducing time spent re-aiming displays and adjusting equipment. Designed for CE conformity and aligned with ETIM 9 EC000882 and ECLASS 8.0 27400556 standards, it supports reliable installation and ongoing maintenance data. By enabling direct mounting to CP 120/60 components without wall-side adaptation, it delivers ergonomic benefits and predictable positioning. This accessory helps engineers optimize line layouts, improve accessibility, and maintain consistent performance across CP-based control stations.
Product Information
Extended Description
6212060 Rittal: CP support section height-adjustable, CP 120/60, for weight range 4-30 kg
Article number
CP 6212.060
Product description
The new height-adjustable support section ensures that you always have a good view of the key parameters in human/machine interaction. The system can be fitted directly to the components in the CP 120 support arm system without any further adaptation on the wall side, and on the enclosure side on support arm system CP 60 or CP 120 depending on the model.
Benefits
Support arm holds securely in any position
Technical specifications
Cable tray: 36 x 11 mm (W x H), max. connector gland: 41 x 17 mm (W x H)
Applications
For tall and short operators
Material
Joint parts: Cast aluminium | Concertina section: Plastic
Colour
RAL 7035
Supply includes
Assembly parts
Length
741 mm
Connection options enclosure
CP 60
Connection options wall / machine
CP 120
Note
In combination with support support section, height adjustable observe: When using an intermediate hinge, the height-adjustable support section should always be inserted in the closest horizontal position to the enclosure.
Dimensions
Length:Â 741 mm
Load capacity
4 kg...30 kg
Note on Model No.
Maximum cross-section for cable entry 41 x 17 mm
Packs of
1 pc(s).
Weight/pack
11.8 kg
Customs tariff number
73269060
EAN
4028177924338
ETIM 9
EC000882
ECLASS 8.0
27400556
Product description
CP support section height-adjustable, CP 120/60, for weight range 4-30 kg
Feature: Height-adjustable design provides adjustable viewing angle and compatibility with CP 120/60 systems. Business Impact: Improves operator ergonomics and reduces time spent adjusting displays, aiding faster decision-making in HMIs. Application: Ideal for mixed-height workstations and high-traffic control panels where visibility matters. Feature: Load capacity of 4–30 kg ensures secure, balanced mounting. Business Impact: Minimizes sag or movement during operation, enhancing reliability and reducing maintenance checks. Application: Supports a wide range of attached components on CP 60 and CP 120 connections. Feature: Direct mounting to CP 60 enclosure and CP 120 wall/machine components—no extra wall-side adaptations. Business Impact: Speeds up installation, lowers assembly cost, and shortens project timelines. Application: Suitable for modular switchgear and control panels in CP-based layouts. Feature: Cable management capability with a 36 x 11 mm cable tray and a maximum 41 x 17 mm gland opening. Business Impact: Improves cable organization, reduces wear, and simplifies future upgrades. Application: Supports orderly cabling for tall and short operators in industrial environments. Feature: Durable materials—joint parts cast aluminium and concertina section plastic with RAL 7035 finish. Business Impact: Delivers long-term corrosion resistance and maintenance-friendly servicing. Application: Compatible with harsh factory environments and standard enclosure lines. Feature: Defined dimensions and packaging—length 741 mm, weight per pack 11.8 kg, packs of 1. Supply includes assembly parts. Business Impact: Predictable footprint for space planning and straightforward procurement. Application: Fits CP 60/CP 120 configurations with consistent installation practices.
Get a Quick Quote for a Rittal 6212060
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6212060?
Enquire Now
FAQs
Installation directly attaches to the CP 120/60 components without wall-side adaptation. Ensure alignment with CP 60 enclosure interfaces and CP 120 wall/machine connections. The pack includes assembly parts and the 741 mm long section with a 4-30 kg load range, enabling quick setup and repeatable positioning for consistent operator ergonomics.
The CP 6212.060 supports a load range of 4 to 30 kg, providing secure, stable mounting for attached equipment. This prevents sag or movement that could impact display readability and control access, contributing to reliable performance and reduced maintenance checks in CP-based configurations.
Yes. The unit is designed for CP 60 connection to enclosures and CP 120 connection to wall or machine interfaces, enabling straightforward integration within standard CP-based layouts. This compatibility minimizes additional hardware and simplifies installation workflows for modular control stations.
The system provides a cable tray of 36 x 11 mm (W x H) and supports a maximum gland opening of 41 x 17 mm (W x H). These dimensions help you manage cabling efficiently and accommodate typical control panel connectors without requiring rework.
The CP 6212.060 ships in packs of 1 piece, with a total weight of 11.8 kg per pack and color finished in RAL 7035. The package includes assembly parts, and the product is prepared for immediate integration into CP 60/CP 120 configurations, supporting rapid procurement and uptime.
