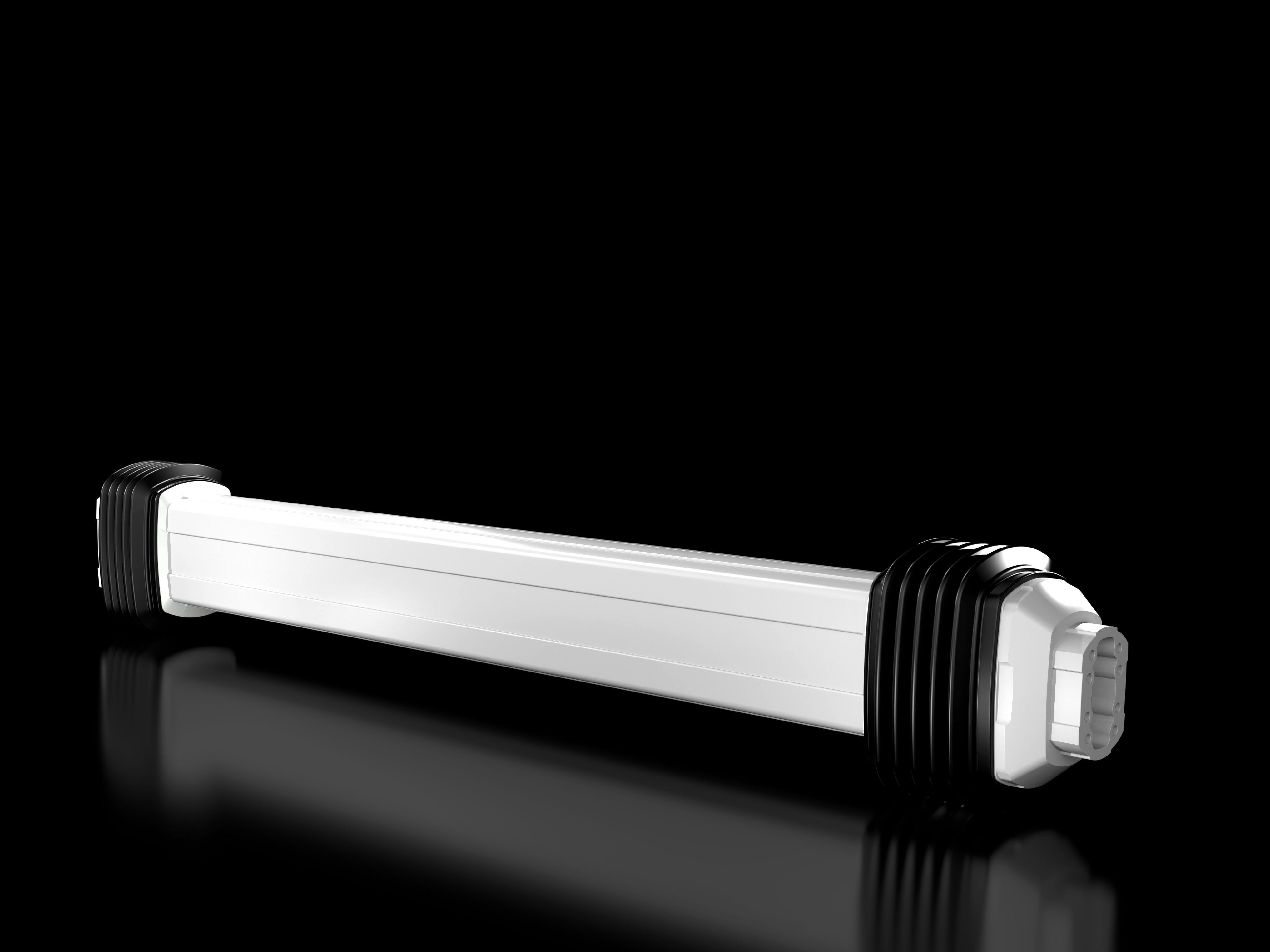

Rittal CP 6212.065 CP support section height-adjustable
Part Number: 6212065
Manufacturer
Rittal
Part number
6212065
Alt Part Number
CP 6212.065
Quick Summary
CP 6212.065 CP support section offers height-adjustable mounting for CP 120/60 in Rittal enclosures. The flexible design helps operators and engineers overcome view-angle limitations and rework during routine parameter checks. The system supports tall and short operators, reducing ergonomic strain and improving data visibility. This solution aligns with ETIM EC000882 and ECLASS 27400556 classifications, reinforcing compatibility with standard parts libraries; note that explicit CE/SIL/IP ratings are not listed in the provided data and should be verified on the official datasheet. By enabling direct fitting to CP 60 on the enclosure side and CP 120 on the wall side, it reduces installation time and enables scalable configurations, driving efficiency and consistent compliance in panel builds.
Product Information
Extended Description
6212065 Rittal: CP support section, height-adjustable, for CP 120/60, length 1050 mm
Article number
CP 6212.065
Product description
The new height-adjustable support section ensures that you always have a good view of the key parameters in human/machine interaction. The system can be fitted directly to the components in the CP 120 support arm system without any further adaptation on the wall side, and on the enclosure side on support arm system CP 60 or CP 120 depending on the model.
Benefits
Support arm holds securely in any position
Technical specifications
Cable tray: 36 x 11 mm (W x H), max. connector gland: 41 x 17 mm (W x H)
Applications
For tall and short operators
Material
Joint parts: Cast aluminium | Concertina section: Plastic
General colour
RAL 7035
Colour
RAL 7035
Supply includes
Assembly parts
Length
1,100 mm
Connection options enclosure
CP 60
Connection options wall / machine
CP 120
Note
In combination with support support section, height adjustable observe: When using an intermediate hinge, the height-adjustable support section should always be inserted in the closest horizontal position to the enclosure.
Dimensions
Length: 1,100 mm
Load capacity
4 kg...15 kg
Note on Model No.
Maximum cross-section for cable entry 41 x 17 mm
Packs of
1 pc(s).
Customs tariff number
73269098
EAN
4028177960275
ETIM 9
EC000882
ECLASS 8.0
27400556
Product description
CP support section, height-adjustable, for CP 120/60, length 1050 mm
Height-adjustable CP support section delivers ergonomic adjustment for CP 120/60 installations, reducing operator strain and enabling accurate parameter viewing in control panels. The direct-fit design minimizes wall-side adaptations, accelerating installation and reducing commissioning time in new builds and upgrades. With a 1100 mm length and a robust cast aluminium joint coupled with a plastic concertina section, the solution offers reliable load handling and durable operation in demanding environments, translating to fewer maintenance interventions. The integrated cable routing path (36 x 11 mm tray and 41 x 17 mm gland) simplifies wiring, improves heat management, and supports compliant cable management. Standard colour (RAL 7035) ensures consistent panel aesthetics, while supplied assembly parts streamline procurement and on-site assembly. Compatibility with CP 60 and CP 120 components enables scalable, modular configurations for evolving automation needs.
Get a Quick Quote for a Rittal 6212065
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6212065?
Enquire Now
FAQs
Begin by attaching the CP support section to the CP 60 enclosure side, then align and mount the CP 120 wall-side connection. Ensure the height is adjusted to the operator's ergonomic standing or seated position, lock the joint securely, and route cables through the 36 x 11 mm tray with glands no larger than 41 x 17 mm. Verify alignment and test the stability at all positions before operation.
The CP 6212.065 supports a load range of 4 kg to 15 kg. Cable entry is designed for a maximum gland size of 41 x 17 mm, with a cable tray of 36 x 11 mm, enabling tidy routing and adequate clearance for typical control cabling in CP 60/CP 120 configurations.
Yes. The height-adjustable design accommodates both tall and short operators, ensuring optimal viewing of key process parameters and reducing the need for manual repositioning during operation and parameter checks.
The data lists ETIM 9 EC000882 and ECLASS 8.0 27400556 classifications, which support standard part interoperability. Explicit SIL, CE, or IP ratings are not stated in the provided data and should be confirmed on the official datasheet for regulatory compliance in specific applications.
By reducing installation time, enabling ergonomic operator positioning, and improving cable management, the CP 6212.065 lowers commissioning costs, minimizes downtime during adjustments, and supports scalable, modular configurations for evolving automation needs, delivering measurable efficiency gains over project and lifecycle costs.
