Rittal CP 6212.100 CP Support - 1,000 mm Aluminium
Part Number: 6212100
Manufacturer
Rittal
Part number
6212100
Alt Part Number
CP 6212.100
Quick Summary

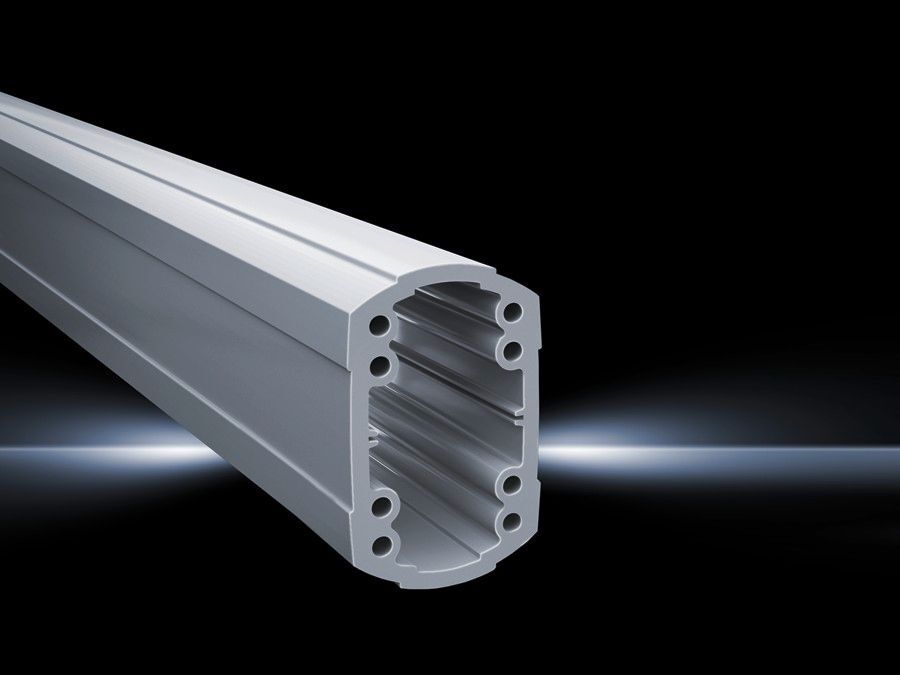

Rittal CP 6212.100 CP Support is a solid extruded aluminium rail used to extend CP 120 cable ducts within electrical enclosures. A common installation pain point is the need for taps or threading when adjusting length, which slows projects and increases part counts. It aligns with industry standards such as ETIM EC000882 and ECLASS 27400556, helping maintain data accuracy across procurement and engineering. With its 1,000 mm length, 75 mm width, 120 mm height, and RAL 7035 colour, it offers predictable form, fit, and long service life. This CP support improves cable routing efficiency and supports scalable enclosure upgrades for manufacturing and process automation.
Product Information
Extended Description
6212100 Rittal: CP Support section CP 120, solid, L: 1000 mm
Article number
CP 6212.100
Product description
Attachment to the connection components with 4 self-tapping screws in the screw channel. May be cut to any required length, no thread-tapping required. Closed cable duct with a large cross-section.
Material
Support section: Extruded aluminium section
Colour
Support section: RAL 7035
Supply includes
Support section
Length
1,000 mm
Dimensions
Width:Â 75 mm | Height:Â 120 mm | Length:Â 1,000 mm
Packs of
1 pc(s).
Weight/pack
7.8 kg
Customs tariff number
76042100
EAN
4028177683945
ETIM 9
EC000882
ECLASS 8.0
27400556
Product description
CP Support section CP 120, solid, L: 1000 mm
Feature → Business Impact → Application: Attachment to CP connection components with 4 self-tapping screws in the screw channel enables quick installation and reduces the need for thread-tapping, cutting installation time and labor costs on site. Application: Used to create custom, reliable extensions for CP 120 cable ducts in Rittal enclosure systems. Feature → Business Impact → Application: The CP 120 support section is made from extruded aluminium, providing a rigid, corrosion-resistant backbone with a lightweight profile. Application: Ideal for long cable runs and modular cabinet builds in industrial automation where durability and aesthetics matter. Feature → Business Impact → Application: Length of 1,000 mm with dimensions 75 x 120 mm and colour RAL 7035 ensures consistent fit and visual uniformity across multiple enclosures. Application: Streamlines multi-unit deployments in panels and server racks. Feature → Business Impact → Application: Included weight of 7.8 kg per pack supports safe handling while maintaining structural integrity. Application: Reduces risk during installation and transportation. Feature → Business Impact → Application: Supplied as CP 120 support section with clear specifications and standardised components. Application: Improves procurement accuracy and reduces variance in part selection. Feature → Business Impact → Application: No need for additional thread-tapping or bespoke fabrication, cutting costs and enabling rapid upgrades. Application: Supports quick retrofits and scalable cable management during plant modernization.
Get a Quick Quote for a Rittal 6212100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6212100?
Enquire Now
FAQs
The CP 6212.100 CP Support is designed as an attachment to CP connection components using four self-tapping screws in the screw channel, with a supply that includes the CP 120 support section. It is specified for 1,000 mm length and matches CP 120 cable duct systems in Rittal enclosures, delivering a straightforward, drill-free installation without thread tapping.
Key specifications include length 1,000 mm, width 75 mm, height 120 mm, and weight 7.8 kg per pack. The material is extruded aluminium, finished in RAL 7035. The product carries the GTIN 4028177683945 and is designed for robust, long-lasting cable management within enclosure installations.
Ideal for industrial automation, data centers, and process industries where CP 120 cable ducts require reliable extension within cabinets or enclosure systems. It supports scalable upgrades, streamlined cable routing, and consistent aesthetics across multiple enclosures, making it a preferred choice for retrofit projects and new builds in manufacturing environments.
While the product listing highlights ETIM 9 EC000882 and ECLASS 8.0 27400556 classifications, explicit CE certification is not stated. The CP 6212.100 adheres to recognized industry classification standards, ensuring compatibility with procurement and engineering data. For regulatory confirmation, consult your internal compliance team or Rittal documentation for CE-related requirements.
Benefits include reduced installation time due to no threading or tapping, predictable dimensions for quick planning, and durable aluminium construction for long service life. The 1,000 mm length minimizes joints and simplifies cable management, contributing to lower maintenance costs and faster project turnaround in enclosure upgrades and factory automation deployments.
