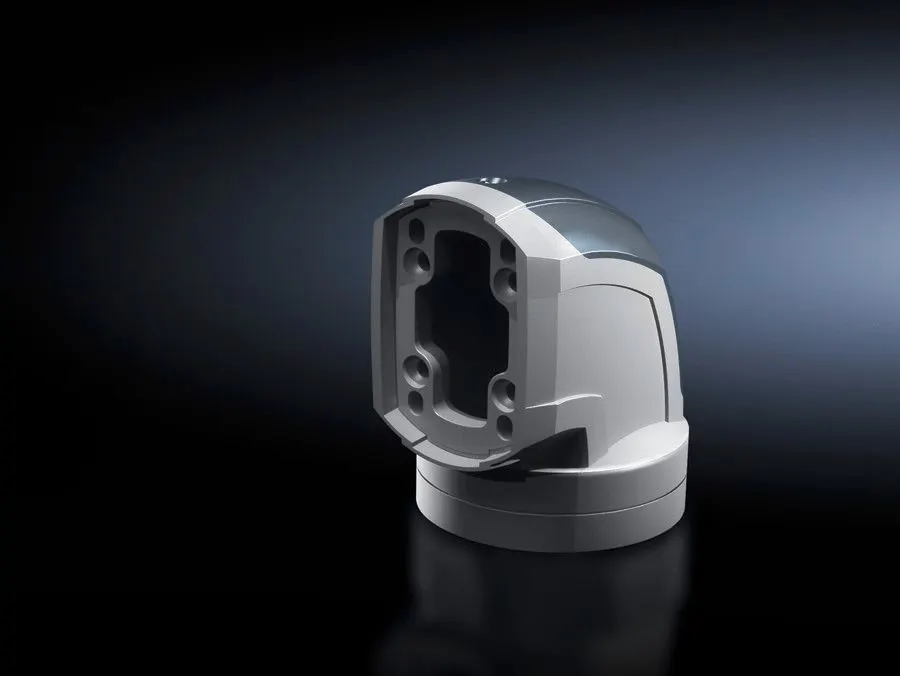

Rittal 6212380 CP Angle coupling - 310° swivel
Part Number: 6212380
Manufacturer
Rittal
Part number
6212380
Alt Part Number
CP 6212.380
Quick Summary
Rittal CP Angle coupling 90° enables swivel mounting of enclosures on support arms. In cramped installations, cable routing and access can become bottlenecks during assembly and maintenance. While certification details are not listed here, the part aligns with ETIM EC000882 and ECLASS 27400556 classifications for consistent data handling. This accessory is compatible with CP 120 systems, Ø130 mm support arms, and includes a removable cover to simplify cable entry. Together, these features translate to faster installation, easier field maintenance, and reliable enclosure orientation that supports uptime and predictable automation performance. The rugged aluminum and zinc alloy construction ensures durability in industrial environments, while the lockable swivel provides stable positioning.
Product Information
Extended Description
6212380 Rittal: CP Angle coupling 90°, CP 120, for support arm connection Ø 130 mm
Article number
CP 6212.380
Product description
For swivel mounting of the enclosure on the horizontal part of the support arm system. Enclosure may be suspended or top-mounted. Removable cover for simple cable entry.
Material
Angle coupling: Cast aluminium/die-cast zinc | Cover: Plastic
Colour
Angle coupling: RAL 7035 | Cover: RAL 7024
Supply includes
Seals | Grub screws | Adjusting screws | Self-tapping screws for support section attachment
Rotating/tilting
Yes
Rotation angle/swivel area
approx. 310°, lockable via clamping levers
Packs of
1 pc(s).
Weight/pack
2.1 kg
Customs tariff number
79070000
EAN
4028177684201
ETIM 9
EC000882
ECLASS 8.0
27400556
Product description
CP Angle coupling 90°, CP 120, for support arm connection Ø 130 mm
Swivel capability (rotation approx. 310°, lockable via clamping levers) → Improves access to rear cabling and reduces rework when equipment needs reorientation. This is ideal for machine building and control cabinet installations where precise cabinet alignment is critical and space is constrained. The CP angle coupling 90°, Ø130 mm arm connection offers flexible positioning that accelerates commissioning and lowers field labor. Removable cover for simple cable entry → Minimizes downtime during setup and maintenance, supporting faster factory ramp-up and easier routine service. Material choices—cast aluminum/die-cast zinc for the angle coupling, plastic cover—deliver robust durability in harsh industrial environments while keeping weight manageable. Supplying seals, screws, and fasteners with the unit reduces the need for additional procurement, speeding installation across multiple lines. Compatibility with CP 120 systems ensures scalable deployment without custom hardware, improving overall project ROI.
Get a Quick Quote for a Rittal 6212380
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6212380?
Enquire Now
FAQs
CP 6212380 is designed for Rittal CP 120 support arm systems with Ø130 mm connections. It ships as a 1 pc pack with seals, grub screws, adjusting screws, and self-tapping screws for support section attachment, making it straightforward to retrofit existing enclosures.
The device provides rotating/tilting capability with approx. 310° swivel area and is lockable via clamping levers. This permits precise positioning and solid retention during operation, while allowing quick readjustment when access or cable entry changes.
The angle coupling is cast aluminium/die-cast zinc and the cover is plastic; colors are RAL 7035 for the coupling and RAL 7024 for the cover. Seals are included to help maintain enclosure integrity, and all components are chosen for durability in industrial settings.
The removable cover simplifies cable entry and re-entry during installation and maintenance, reducing time spent routing cables in restricted spaces. This is especially advantageous for suspended or top-mounted configurations where access is limited.
By reducing installation time, enabling rapid reconfiguration, and improving cabinet accessibility, the CP 6212380 lowers field labor costs and increases uptime. Its standard CP 120 compatibility supports scalable deployments across multiple lines without bespoke hardware, improving project efficiency and total cost of ownership.
