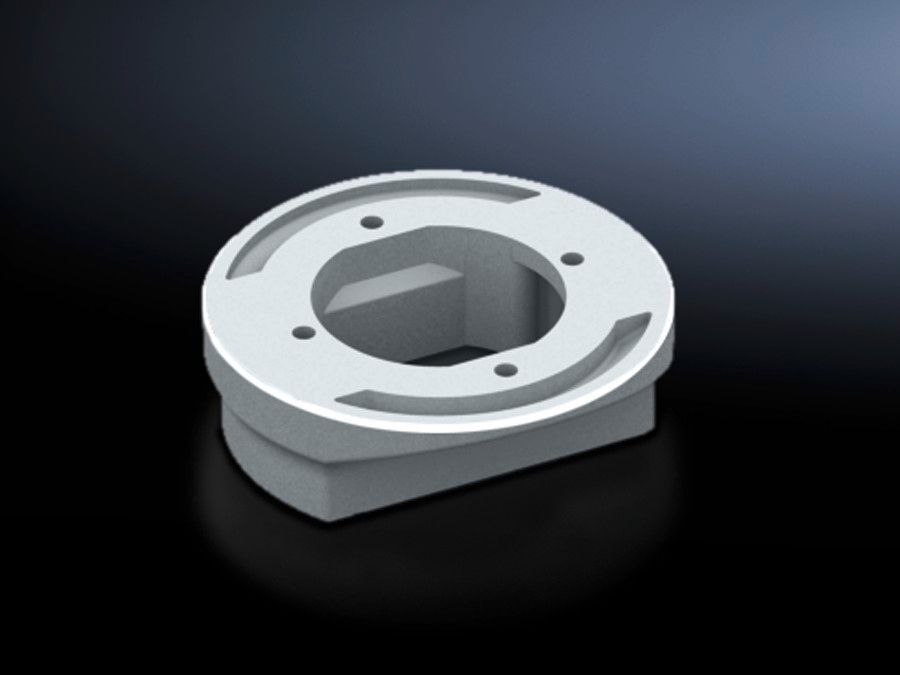

Rittal CP 6212.500 CP Adaptor - VESA 75/100 Mount
Part Number: 6212500
Manufacturer
Rittal
Part number
6212500
Alt Part Number
CP 6212.500
Quick Summary
Rittal CP 6212.500 CP Adaptor enables external mounting of operator panels. When space is tight, achieving a precise 120 x 65 mm cut-out and a reliable VESA 75/100 mounting can be a major challenge. This adaptor is constructed from cast aluminium in a durable RAL 7035 finish, comes with seals, and aligns with ETIM EC000882 and ECLASS 27400556 standards. Designed for Rittal enclosures and electrical infrastructure, it simplifies panel integration, shortens assembly time, and supports efficient maintenance across industrial environments. Its compatibility with CP 120 accessories such as 6212.300, 6212.320 and 6212.380 broadens installation options.
Product Information
Extended Description
6212500 Rittal: CP Adaptor CP 120/60, from support arm connection Ø 130 mm to 120 x 65 mm
Article number
CP 6212.500
Design
For external mounting of command panel with support arm cut-out 120 x 65 mm and connection console VESA 75/100 to: | Coupling CP 120, 6212.300 | Attachment CP 120, 6212.320 | Angle coupling 90°, CP 120, 6212.380 | Pivot with jib (6206.850) | Pivot for machine-integrated installation (6206.870)
Material
Cast aluminium
Colour
RAL 7035
Supply includes
Seals | Assembly parts
Rifid y/n
Yes
Dimensions
Height: 40 mm
Packs of
1 pc(s).
Weight/pack
0.5 kg
Customs tariff number
76169990
EAN
4028177684218
ETIM 9
EC000882
ECLASS 8.0
27400556
Product description
CP Adaptor CP 120/60, from support arm connection Ø 130 mm to 120 x 65 mm
Feature: External mounting and VESA compatibility. Business Impact: Enables flexible panel placement outside the enclosure and supports standard HMI interfaces, reducing the need for custom brackets. Application: Use on control cabinets where a 120 x 65 mm aperture and a VESA 75/100 pattern are required to mount a touchscreen or display unit. Feature: Cast aluminium body. Business Impact: Delivers rugged durability and good thermal stability in demanding environments, lowering maintenance costs and extending service life. Application: Suitable for industrial automation enclosures exposed to vibration, dust, and moisture. Feature: Integrated seals. Business Impact: Provides environmental protection during installation and operation, reducing ingress risks and preserving electronics. Application: Use with enclosure seals for added protection in harsh settings. Feature: Compact profile, 40 mm height, 0.5 kg per pack. Business Impact: Minimizes space consumption and shipping weight, enabling easier retrofits and inventory control. Application: Ideal for retrofitting existing panels in tight machine rooms. Feature: Compatibility with CP 120 accessories (6212.300, 6212.320, 6212.380) and varied pivot options. Business Impact: Expands mounting configurations and supports future upgrades without rework. Application: Used across multiple machine configurations in assembly lines. Feature: Standards alignment (ETIM EC000882, ECLASS 27400556). Business Impact: Streamlines procurement, data management, and cross-system integration. Application: Helpful for engineering data reuse and ERP integration. Feature: Supply includes seals and assembly parts. Business Impact: Speeds installation and reduces supplementary purchases, lowering total cost of ownership. Application: Field engineers can complete mounting in a single site visit.
Get a Quick Quote for a Rittal 6212500
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6212500?
Enquire Now
FAQs
The CP 6212.500 CP Adaptor supports external mounting of command panels with a 120 x 65 mm cut-out and VESA 75/100 interface. It is designed to work with CP 120 accessories such as 6212.300, 6212.320 and 6212.380, enabling multiple mounting orientations on Rittal enclosures.
The adaptor features a compact profile with a height of 40 mm. It is supplied as 1 piece per pack, with a weight of 0.5 kg per pack. The body is cast aluminium and finished in RAL 7035, with seals included to aid installation.
The CP Adaptor uses a cast aluminium body and includes seals to protect against ingress. While this improves environmental resilience, always verify your enclosure IP rating and apply appropriate seals or coatings for extreme outdoor conditions to ensure long-term reliability.
This adaptor is designed to be compatible with CP 120 accessories, including 6212.300, 6212.320, and 6212.380. This enables a range of mounting configurations, pivots, and attachment methods for diverse control panel installations.
ETIM EC000882 and ECLASS 27400556 alignment helps standardize data for cross-system procurement and cataloging. This supports easier data reuse in ERP, improves part tagging in PIM systems, and simplifies supplier comparisons and BOM management.
