Rittal CP 6212.540 CP Connection Plates - Ø130 mm arm
Part Number: 6212540
Manufacturer
Rittal
Part number
6212540
Alt Part Number
CP 6212.540
Quick Summary
CP 6212.540 connection plates from Rittal simplify locating and mounting a command panel onto a support arm or pedestal. Without precise alignment, installation delays can extend project timelines and increase service costs. Notable alignments with ETIM EC000882 and ECLASS 27400556 support cataloging and interoperability, while CE, IP, or SIL ratings are not specified in this data. The design integrates with CP 60/120 system components, speeding assembly and reducing field adjustments. In practice, installers benefit from a robust, color-matched option (RAL 7035) that maintains cabinet aesthetics while delivering reliable mechanical performance across Comfort Panel and OptiPanel configurations. This combination of compatibility and material resilience translates to lower maintenance needs and more predictable project delivery for panel mounting in industrial enclosures.
Product Information
Extended Description
6212540 Rittal: CP Connection plates, with reinforced plate CP 120/60, for support arm connection Ø 130 mm
Article number
CP 6212.540
Design
For mounting | Comfort Panel from a front panel width of 247 mm and installation depth of 152 mm | Optipanel from a front panel width of 220 mm and installation depth of 150 mm | Sheet steel from 135 mm installation depth | For mounting on support arm system components | Attachment CP 60/120 for support arm connection Ø 130 mm, 6206.320, 6212.320 | Coupling CP 60/120/180 for support arm connection Ø 130 mm, 6206.300, 6212.300, 6218.300 | Angle coupling 90°, system 60/120 for support arm connection Ø 130 mm, CP 6206.380, 6212.380 | Tilting adaptor 10°, system 60/120 for support arm connection Ø 130 mm, CP 6206.400 | Tilting adaptor ±45°, system 60/120 for support arm connection Ø 130 mm, CP 6206.420
Benefits
For easy location of the command panel onto the support arm or pedestal
Material
Connection plate: Cast aluminium | Reinforcement plate: Sheet steel, 6 mm
Colour
RAL 7035
Supply includes

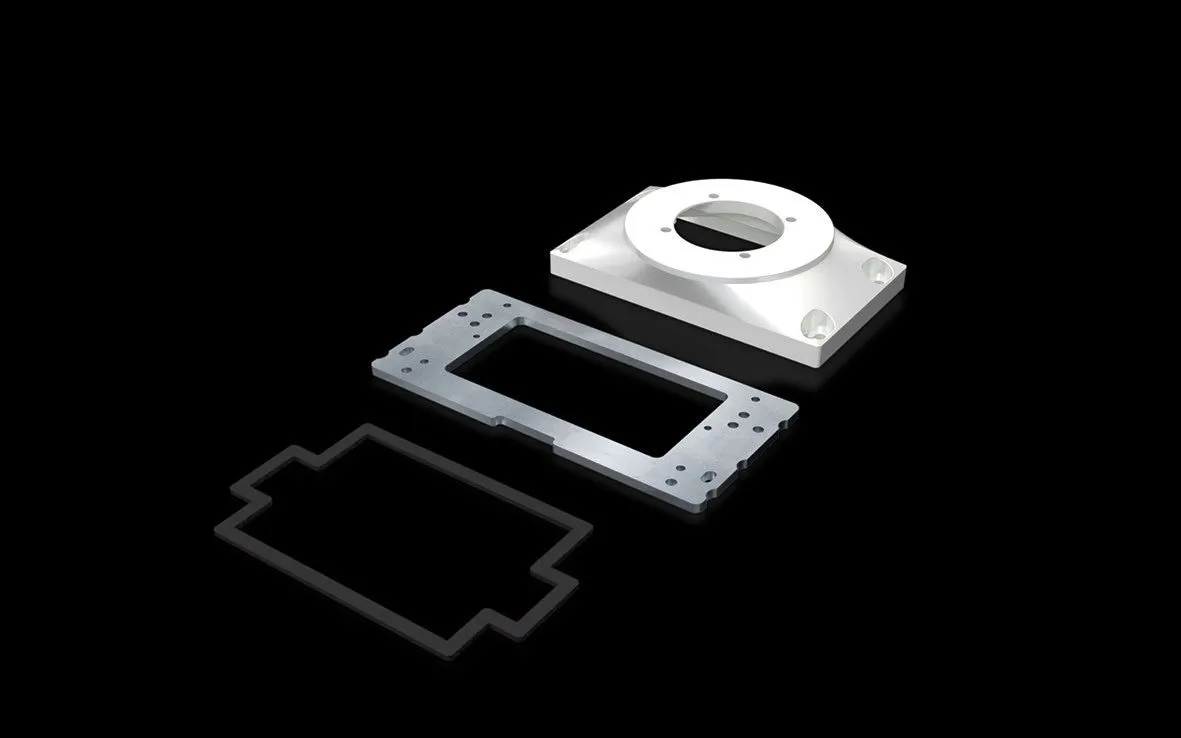

Reinforcement plate | Seals | Assembly parts
Packs of
1 pc(s).
Weight/pack
1.4 kg
Customs tariff number
76169990
EAN
4028177684232
ETIM 9
EC000882
ECLASS 8.0
27400556
Product description
CP Connection plates, with reinforced plate CP 120/60, for support arm connection Ø 130 mm
Feature: Cast aluminium connection plate with a reinforced 6 mm steel reinforcement plate provides high rigidity and even load distribution. Business Impact: reduces panel sag, improves alignment accuracy, and minimizes rework during commissioning. Application: ideal for steady mounting of CP 60/120 support arm connections on Ø130 mm interfaces in control cabinets. Feature: Reinforcement plate and seal kit supplied as standard. Business Impact: lowers on-site sourcing time and ensures a complete installation kit, cutting labor costs and risk of missing components. Application: facilitates quick field assembly for both Comfort Panel and OptiPanel configurations. Feature: Colour coded in RAL 7035. Business Impact: visual consistency across cabinets simplifies asset management and reduces misidentification in multi-bay installations. Application: supports standardized aesthetics in industrial facilities. Feature: Compatibility with CP 60/120 family components and system 60/120 mounting accessories. Business Impact: accelerates setup, reduces lead times, and enables modular expansion. Application: suitable for retrofit projects and new builds in panel houses. Feature: Design accommodates front panel widths of 247 mm (Comfort Panel) and 220 mm (OptiPanel) with installation depths of 152 mm and 150 mm respectively. Business Impact: ensures precise panel seating and predictable clearance for cables and seals. Application: critical for correct nesting within enclosure frames and for reliable gasket performance.
