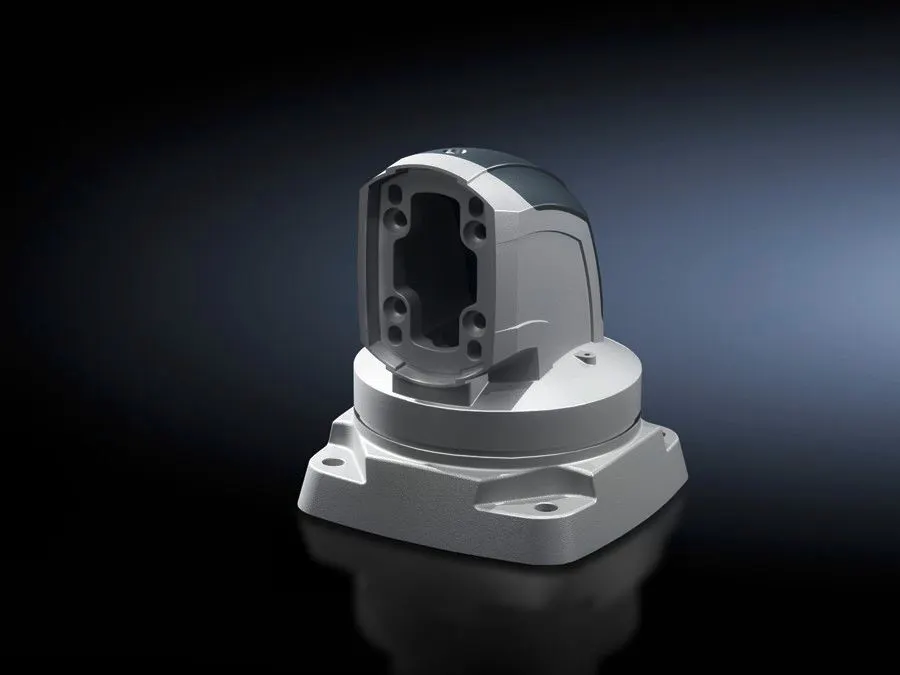

Rittal CP 6212.700 Top-mounted joint - 330° swivel
Part Number: 6212700
Manufacturer
Rittal
Part number
6212700
Alt Part Number
CP 6212.700
Quick Summary
Rittal CP 6212.700 Top-mounted joint enables swivel mounting of the support arm system on horizontal surfaces. Engineers often struggle with routing cables when mounting arms in tight spaces; this joint provides a removable cover for simple cable entry, simplifying installation and maintenance. The design aligns with ETIM 9 EC000882 and ECLASS 8.0 27400556 standards, supporting accurate data integration and cross-system compatibility. This combination, along with the aluminium construction and dedicated covers, delivers reliable performance and faster setup—driving installation efficiency and consistent, scalable system builds for panel builders and integrators.
Product Information
Extended Description
6212700 Rittal: CP Top-mounted joint CP 120, outlet horizontal
Article number
CP 6212.700
Product description
For swivel mounting of the support arm system on horizontal surfaces – also suitable for suspending from the ceiling. Removable cover for simple cable entry.
Material
Top-mounted joint: Cast aluminium | Cover: Plastic
Colour
Top-mounted joint: RAL 7035 | Cover: RAL 7024
Supply includes
Seals | Screws for restricting rotation range | Adjusting screws | Self-tapping screws for support section attachment
Rotating/tilting
Yes
Rotation angle/swivel area
approx. 330°.
Packs of
1 pc(s).
Weight/pack
4.3 kg
Customs tariff number
76169990
EAN
4028177683990
ETIM 9
EC000882
ECLASS 8.0
27400556
Product description
CP Top-mounted joint CP 120, outlet horizontal
Swivel range and orientation flexibility drive faster, more precise arm positioning in enclosures and control panels, reducing rework and downtime. Feature → Business Impact → Application: The CP 6212.700 offers a 330° swivel and full rotation/tilting capability, enabling versatile alignment of sensors, cables, and actuators in compact layouts, which translates to easier maintenance and higher equipment uptime in manufacturing cells or control corridors. Feature → Business Impact → Application: Cast aluminium top-mounted joint with a durable plastic cover provides robust wear resistance and straightforward cable entry; users gain long-term reliability with simplified service access, suitable for retrofits and new builds alike. Feature → Business Impact → Application: Seals, adjusting screws, and self-tapping screws are included, shortening install time and ensuring secure rotation limits; this supports fast commissioning and repeatable adjustments across multiple identical panels. Feature → Business Impact → Application: Distinct colour separation—RAL 7035 for the joint and RAL 7024 for the cover—facilitates quick visual identification during assembly and ongoing maintenance in complex systems. Feature → Business Impact → Application: Weight per pack is 4.3 kg, enabling predictable handling and ergonomics for on-site installation teams; ideal for modular enclosure projects and scalable configurations. Feature → Business Impact → Application: Compatible with horizontal mounting and ceiling suspension, the CP 6212.700 expands application scope for cantilever arms and overhead routing in data centers, machine cells, and process lines. Long-tail keywords integrated include top-mounted joint CP 120, swivel mounting arm, cable entry cover, Rittal enclosure accessories, and rotation angle 330 degrees, ensuring natural discoverability without keyword stuffing.
Get a Quick Quote for a Rittal 6212700
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6212700?
Enquire Now
FAQs
Begin by aligning the joint with the support arm system on the horizontal surface, then secure using the included self-tapping screws for attachment to the support section. Use the sealing components to ensure cable entries remain protected, and adjust the rotation range with the supplied screws to achieve the desired swivel limits. Typical installations take under an hour for a single enclosure, with repeatable steps for multi-panel runs.
Key specs include a 330° swivel range, rotating/tilting capability, and a weight of 4.3 kg per pack. Material is top-mounted joint made from cast aluminium, with a plastic cover. The supply includes seals, adjustment screws, and self-tapping screws for attachment, supporting reliable, adjustable positioning in both horizontal mounting and ceiling suspension scenarios.
Yes. The CP 6212.700 is designed for swivel mounting on horizontal surfaces and is also suitable for suspending from the ceiling, enabling flexible configurations for cantilever arms and overhead cable management in control rooms, data centers, and manufacturing cells.
The product carries classifications ETIM 9 EC000882 and ECLASS 8.0 27400556, which support interoperability in procurement and engineering data ecosystems. While specific CE or IP ratings aren’t listed in the data, these classifications help ensure compatibility with common ERP and MRO ecosystems and enable accurate component tagging across catalogs.
Expect improved cable management and installation efficiency through a removable cable-entry cover and a wide 330° swivel, enabling precise arm positioning with fewer adjustments. The modular design reduces downtime during servicing, accelerates commissioning of new lines, and supports scalable enclosure configurations across multiple dimensions of your automation install base.
