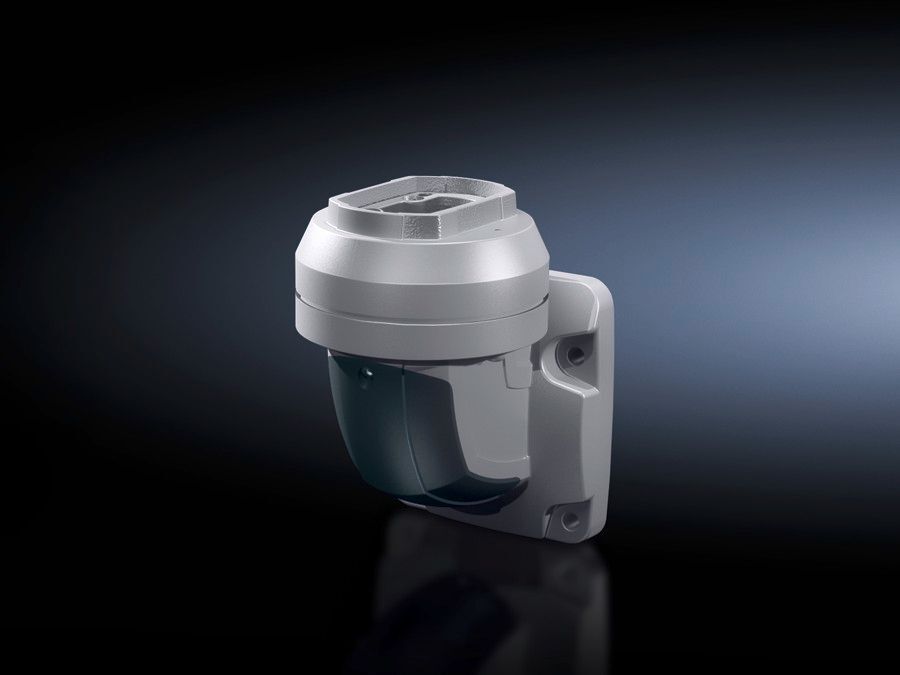

Rittal CP 6212.760 Wall-mounted hinge - 330° rotation
Part Number: 6212760
Manufacturer
Rittal
Part number
6212760
Alt Part Number
CP 6212.760
Quick Summary
CP 6212.760 wall-mounted hinge enables swivel mounting of enclosure support arms on vertical surfaces. In tight control cabinets, cable entry and maintenance access can be problematic; this hinge simplifies routing with a removable cover. This component aligns with industry classifications such as ETIM EC000882 and ECLASS 27400556, supporting interoperability across engineering workflows. By delivering robust aluminum construction and precise rotation, it enhances installation efficiency and long-term service life, while the removable cover reduces downtime during wiring. For system integrators, its 5.5 kg pack weight and 330° swivel offer predictable mounting behavior and fewer hardware variations.
Product Information
Extended Description
6212760 Rittal: CP Wall-mounted hinge CP 120, outlet vertical
Article number
CP 6212.760
Product description
For swivel mounting of the support arm on vertical surfaces. Removable cover for simple cable entry.
Material
Wall-mounted hinge: Cast aluminium | Cover: Plastic
Colour
Wall-mounted hinge: RAL 7035 | Cover: RAL 7024
Supply includes
Seals | Screws for restricting rotation range | Adjusting screws | Self-tapping screws for support section attachment
Rotating/tilting
Yes
Rotation angle/swivel area
approx. 330°.
Packs of
1 pc(s).
Weight/pack
5.5 kg
Customs tariff number
76169990
EAN
4028177684126
ETIM 9
EC000882
ECLASS 8.0
27400556
Product description
CP Wall-mounted hinge CP 120, outlet vertical
Feature: 330° swivel rotation. Business Impact: broad mounting tolerance and flexible cable routing, reducing rework and enabling easier panel access. Application: vertical wall installations in control cabinets and electrical enclosures. Feature: Cast aluminum hinge with plastic cover. Business Impact: robust, corrosion-resistant components that withstand industrial environments while keeping cover lightweight. Application: high-traffic or damp areas where longevity matters. Feature: Removable cover for simple cable entry. Business Impact: faster commissioning and simplified maintenance without disassembly. Application: rapid cabling during installation and routine inspections. Feature: Supplied seals and screws for rotation range adjustment. Business Impact: precise alignment and secure operation, lowering repair costs and downtime. Application: factory automation and machine build-outs. Feature: Color coding (hinge in RAL 7035; cover in RAL 7024). Business Impact: visual integration with control-room aesthetics and easier asset management. Application: standardized installations across multiple cabinets. These attributes collectively support improved installation efficiency, reduced maintenance effort, and predictable performance in modern industrial environments.
Get a Quick Quote for a Rittal 6212760
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6212760?
Enquire Now
FAQs
Yes. The CP 6212.760 is designed for CP wall-mounted hinge applications on vertical surfaces and aligns with CP 120 configurations, featuring an outlet vertical arrangement and a removable cover to facilitate wiring and cable entry during installation.
The hinge offers an approximate 330° rotation. Each pack weighs about 5.5 kg and includes the hinge assembly with all listed mounting hardware, enabling straightforward installation and predictable mounting behavior.
The hinge is made from cast aluminium, while the cover is plastic. The hinge is colored in RAL 7035 and the cover in RAL 7024, providing durable, maintenance-friendly components suitable for industrial environments.
This data set specifies ETIM 9 EC000882 and ECLASS 8.0 27400556 classifications to aid interoperability. Note that CE or IP certifications are not listed here; please consult the datasheet or your compliance team to verify specific regulatory requirements.
The kit includes seals and screws for restricting rotation range, adjusting screws, and self-tapping screws for attachment, plus a removable cover for easy cable entry. These features speed up commissioning, reduce wiring errors, and simplify ongoing maintenance in control cabinets.
