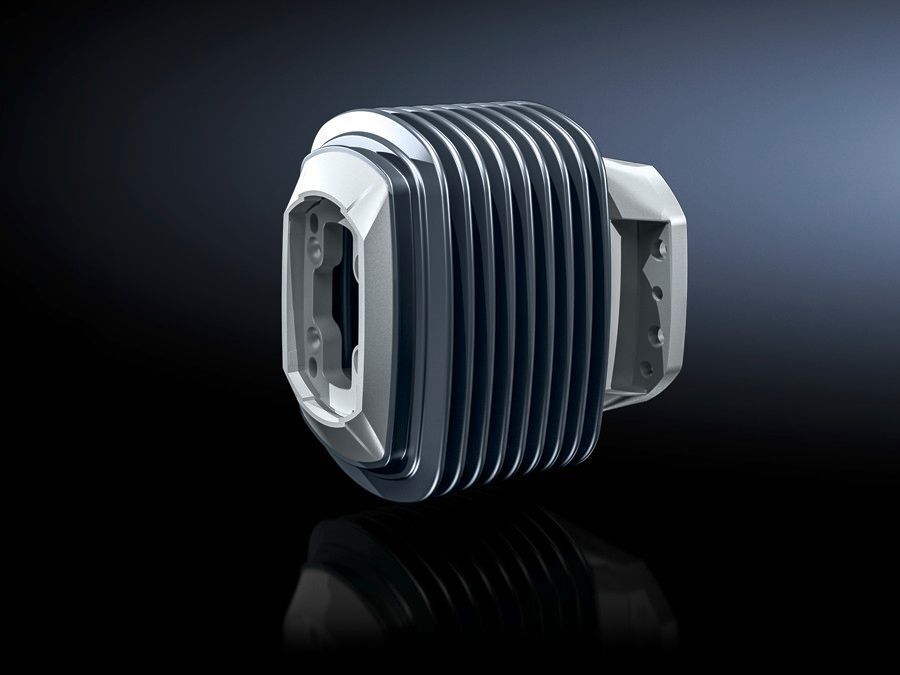

Rittal CP 6212.780 Wall-mounted hinge - 180° swivel range
Part Number: 6212780
Manufacturer
Rittal
Part number
6212780
Alt Part Number
CP 6212.780
Quick Summary
The Rittal CP 6212.780 wall-mounted hinge enables precise 180° swivel mounting of the CP 120 support arm on vertical surfaces for reliable enclosure setups. Engineers often face misalignment and restricted access during service, which this hinge design mitigates through improved tolerance and smooth operation. Key classifications include ETIM EC000882 and ECLASS 27400556, supporting standardized procurement and interchangeability; note that CE and IP certifications are not listed in the provided data and should be confirmed from official documentation. Together with durable materials and included mounting hardware, it delivers long service life, predictable maintenance windows, and improved total cost of ownership for control panel applications.
Product Information
Extended Description
6212780 Rittal: CP Wall-mounted hinge CP 120, outlet horizontal, without height offset
Article number
CP 6212.780
Product description
For swivel mounting of the support arm on vertical surfaces.
Material
Wall-mounted hinge: Cast steel | Concertina section: Plastic
Colour
Wall-mounted hinge: RAL 7035 | Concertina section: RAL 7024
Supply includes
Concertina section | Screws for restricting rotation range | Adjusting screws | Self-tapping screws for support section attachment | Seals
Rotating/tilting
Yes
Rotation angle/swivel area
approx. 180°
Packs of
1 pc(s).
Weight/pack
8.3 kg
PCF per pack (cradle-to-gate)
31.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177705616
ETIM 7.0
EC000882
ECLASS 8.0
27400556
Product description
CP Wall-mounted hinge CP 120, outlet horizontal, without height offset
Feature: 180° swivel range component enabling flexible rotation of the CP 120 arm. Business Impact: Enhances cable routing, service access, and alignment precision, reducing maintenance time and equipment downtime. Application: Ideal for CP enclosure installations where vertical mounting with full range of motion is required, such as control panels and switchgear rooms. Feature: Material and finish — wall-mounted hinge made of cast steel with a plastic concertina section; hinge color RAL 7035, concertina section RAL 7024. Business Impact: Delivers robust mechanical strength and corrosion resistance in demanding environments, while maintaining clear visual differentiation across components. Application: Suitable for industrial enclosures exposed to dust and debris, where protective detailing supports longevity. Feature: Supplied components — concertina section, screws for restricting rotation, adjusting screws, self-tapping screws for support attachment, seals. Business Impact: Streamlines installation with ready-to-use hardware and adjustable rotation limits, reducing commissioning time and error rates. Application: Quick retrofit or new-build projects with standardized hardware kits. Feature: Environmental and footprint data — weight per pack 8.3 kg; PCF per pack 31.6 kg CO2 eq (Cat B). Business Impact: Enables sustainability reporting and lifecycle considerations, aiding in supplier qualification and green procurement. Application: Helps quantify emissions for BOMs and ESG documentation. Feature: Compatibility and traceability — Packs of 1 piece; EAN 4028177705616; ETIM 7.0 EC000882; ECLASS 8.0 27400556; customs tariff 73269098. Business Impact: Facilitates precise inventory planning, cross-system cataloging, and streamlined customs handling. Application: Ideal for centralized procurement and catalog maintenance in manufacturing plants.
Get a Quick Quote for a Rittal 6212780
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6212780?
Enquire Now
FAQs
Yes. The CP 6212.780 is a CP wall-mounted hinge designed for CP 120 systems, featuring horizontal outlet and no height offset, with included hardware for straightforward installation. Verify compatibility with your enclosure model and refer to the EAN 4028177705616 for catalog matching.
The hinge provides an approximate 180° rotation/ swivel range, enabling full rear-to-front access for arms mounted on vertical surfaces. This range supports flexible cable routing and service access without compromising enclosure integrity or seal performance.
Installation includes screws for restricting rotation, adjusting screws, self-tapping screws for the support section, and seals. Plan for wall mounting with appropriate anchors, verify weight per pack (8.3 kg) and ensure correct alignment during tightening to maintain precise 180° movement and sealing effectiveness.
The dataset lists ETIM 7.0 EC000882 and ECLASS 8.0 27400556 to aid classification; CE and IP ratings are not provided in the data and should be confirmed from official documentation. PCF is 31.6 kg CO2 eq (Category B), which can support sustainability reporting in procurement workflows.
With a single-piece pack, included hardware, and robust materials, this hinge simplifies BOM planning, reduces installation time, and lowers maintenance downtime. The 8.3 kg per pack weight and traceable EAN aid inventory control, while the durable cast steel plus plastic section supports long service life in harsh industrial settings.
