Rittal CP 6218.100 CP Support - Extruded Aluminium EC000882
Part Number: 6218100
Manufacturer
Rittal
Part number
6218100
Alt Part Number
CP 6218.100
Quick Summary
Rittal CP 6218.100 CP Support is an extruded aluminium cable-management section for electrical enclosures. Installers often battle fixed ducts and on-site length adjustments; this part can be cut to any required length without thread tapping, speeding assembly. The CP 6218.100 is catalogued under ETIM EC000882 and ECLASS 27400556 classifications, supporting accurate procurement and catalog interoperability; for environments with IP or CE compliance needs, verify against your enclosure standard. Used with CP 180 components, it delivers scalable cable routing with a large cross-section, improving reliability and reducing field rework in manufacturing and automation facilities.
Product Information
Extended Description

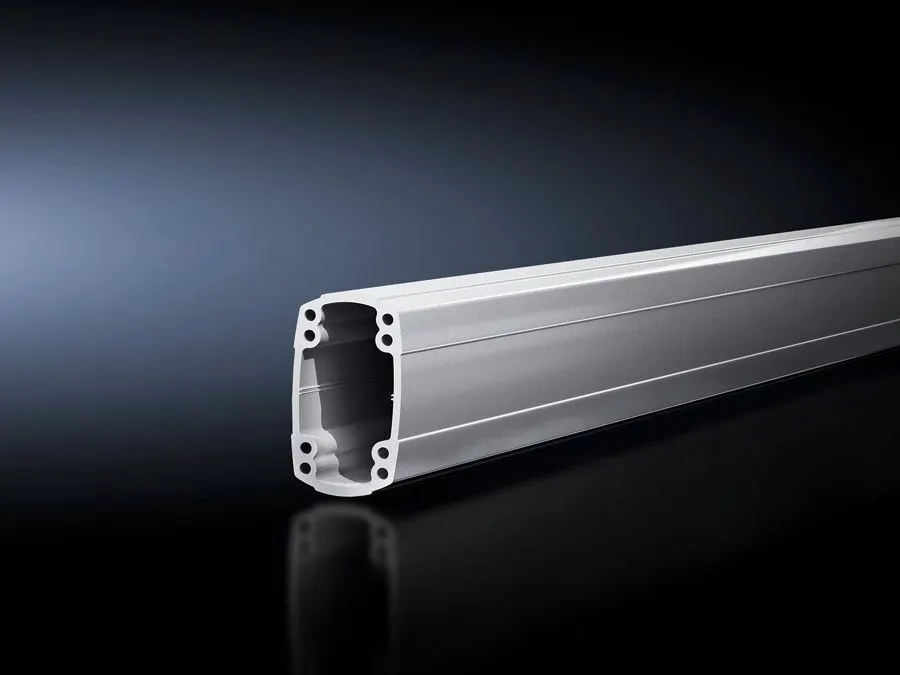

6218100 Rittal: CP Support section CP 180, solid, L: 1000 mm
Article number
CP 6218.100
Product description
Attachment to the connection components with 4 self-tapping screws in the screw channel. May be cut to any required length, no thread-tapping required. Closed cable duct with a large cross-section.
Material
Support section: Extruded aluminium section
Colour
Support section: RAL 7035
Supply includes
Support section
Length
1,000 mm
Dimensions
Width: 90 mm | Height: 160 mm | Length: 1,000 mm
Packs of
1 pc(s).
Weight/pack
10.5 kg
Customs tariff number
76042100
EAN
4028177683815
ETIM 9
EC000882
ECLASS 8.0
27400556
Product description
CP Support section CP 180, solid, L: 1000 mm
Cut-to-length capability with four self-tapping screws in the screw channel enables installers to tailor the duct on-site without thread tapping. This directly reduces installation time and minimizes tool requirements, especially in retrofit projects where exact lengths matter. Material properties of extruded aluminium deliver a robust, lightweight construction with corrosion resistance and a consistent appearance across installations, supporting longer service life in harsh environments. Attachment to connection components uses four self-tapping screws in the screw channel, offering secure mounting with minimal hardware and faster assembly, reducing maintenance risk. The 90 x 160 mm cross-section and 1,000 mm length provide predictable space planning and compatibility with standard enclosure widths, aiding pre-project design and logistics. Documentation and standards alignment with ETIM and ECLASS improve procurement accuracy, while the bright RAL 7035 finish supports clear labeling and safety. Color and finish contribute to safer, visually organized control rooms and cabinets.
Get a Quick Quote for a Rittal 6218100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6218100?
Enquire Now
FAQs
To install, cut the CP 6218.100 to the required length if needed, align it with the CP 180 profile, and secure it using four self-tapping screws placed in the screw channel. No thread tapping is required, which simplifies the process and reduces tool wear. Ensure the end-to-end length suits the enclosure footprint and cable duct cross-section; confirm proper mounting clearances.
Verify length 1,000 mm, width 90 mm, height 160 mm, material extruded aluminium, color RAL 7035, and weight per pack 10.5 kg. Check the article number CP 6218.100, EAN 4028177683815, and classifications ETIM EC000882 and ECLASS 27400556 to ensure compatibility with your procurement system and BOM.
Yes. The CP 6218.100 CP Support Section is designed as an attachment to CP connection components and specifically described as CP Support section CP 180, solid. It uses a four-screw connection in the screw channel for secure integration, enabling seamless expansion or retrofits within CP-180-based enclosures.
Industrial control panels, switchgear housings, and automation cabinets benefit from its large cross-section closed cable duct and sturdy extruded aluminium construction. Its 1,000 mm length supports modular layouts, while the RAL 7035 finish maintains consistency across devices. It helps ensure tidy cabling, improved airflow, and faster serviceability in production lines and process automation.
Documentation is available as PDF and multi-language assembly sheets. Access the View PDF page for CP 6218.100, plus DE/EN/ES/FR/IT/JA/NL/SV and PL/RU instruction sets through the provided download links. The downloads simplify onboarding, ensure correct assembly, and help maintenance teams reference mounting guidelines during install or retrofit projects.
