Rittal CP 6218.150 CP Support Section - EC000882
Part Number: 6218150
Manufacturer
Rittal
Part number
6218150
Alt Part Number
CP 6218.150
Quick Summary
Rittal CP 6218.150 CP Support Section is an open, modular cable-management accessory for routing cables in control cabinets. Engineers often struggle with servicing access and cluttered wiring inside tight enclosures, leading to longer downtime and maintenance effort. The design aligns with ETIM EC000882 and ECLASS 27400556 classifications to support procurement accuracy and cross-system interoperability. Together, these features enable faster installation, scalable cabinet designs, and reduced lifetime maintenance costs. The CP 6218.150's 500 mm length, 90 mm width and 160 mm height provide flexible fit in a variety of Rittal enclosure families. It uses an aluminium support section with a plastic cover and a clip-in lid for fast servicing without tools.
Product Information
Extended Description

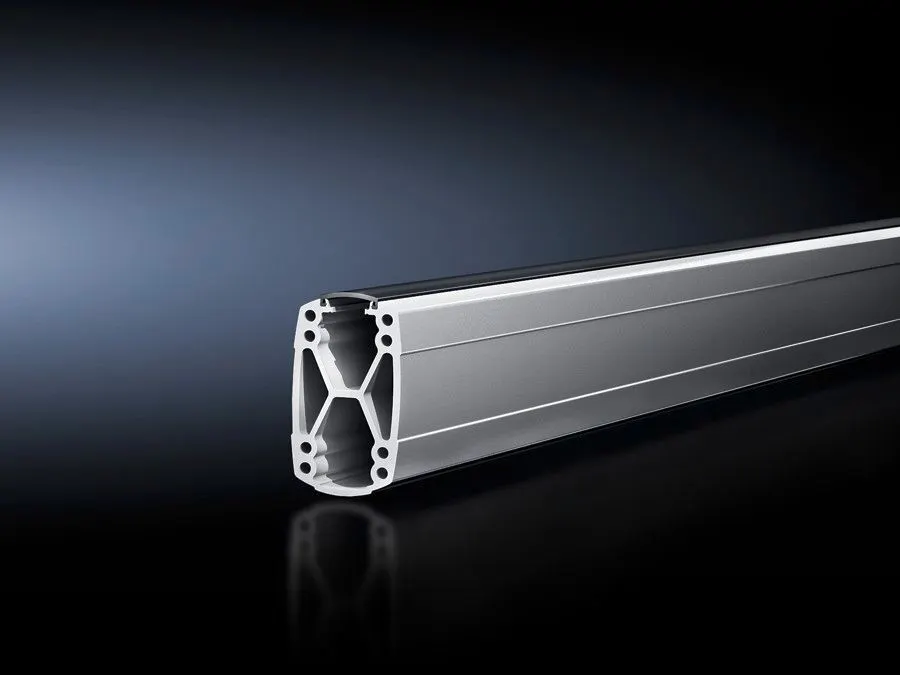

6218150 Rittal: CP Support section CP 180, open, L: 500 mm
Article number
CP 6218.150
Product description
Attachment to the connection components with 4 self-tapping screws in the screw channel. May be cut to any required length, no thread-tapping required. Open cable duct for easy servicing access and for pre-assembled cables with connectors, lockable via cover section. X-shaped profiling for greater load capacity, large cable routing channels. Upper channel adequate for cables with large connectors (e.g. DVI or VGA) and available/usable throughout the entire system.
Material
Support section: Extruded aluminium section | Cover: Plastic
Colour
Support section: RAL 7035 | Cover: RALÂ 7024
Supply includes
Support section | Clip-in lid
Length
500 mm
Dimensions
Width:Â 90 mm | Height:Â 160 mm | Length:Â 500 mm
Packs of
1 pc(s).
Weight/pack
5.8 kg
Customs tariff number
76042100
EAN
4028177683839
ETIM 9
EC000882
ECLASS 8.0
27400556
Product description
CP Support section CP 180, open, L: 500 mm
Open cable duct with four self-tapping screws reduces installation time and eliminates the need for thread tapping in the field, delivering faster commissioning and lower tooling costs. This translates to fewer installation errors in high-mix environments where cabinets must be adapted on demand. X-shaped profiling delivers greater load capacity, reinforcing the support section against bending or deformation when carrying dense cable bundles or pre-assembled cables with connectors, improving long-term reliability in production lines. The large cable-routing channels and an upper channel designed for larger connectors such as DVI or VGA enable clean, service-friendly layouts throughout the system, simplifying future upgrades and rework. Material choices balance durability and weight: extruded aluminium for the support section with a plastic cover, finished in RAL 7035/7024 for visibility and corrosion resistance, compatible with standard enclosure aesthetics. The 500 mm length, 90 mm width and 160 mm height provide flexible fit within the CP family, while the option to cut to length without threading adds installation flexibility in constrained cabinets. Supplied as a complete unit with the clip-in lid, it integrates smoothly with CP components and supports quick service access, minimizing downtime during maintenance and upgrades.
Get a Quick Quote for a Rittal 6218150
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6218150?
Enquire Now
FAQs
Install by securing the open cable duct to the screw channel using the four self-tapping screws supplied. The unit is cuttable to length without thread tapping, allowing on-site adaptation without special tools. Integrate with the clip-in lid for quick access during servicing.
The CP 6218.150 measures 500 mm in length, 90 mm in width, and 160 mm in height, with a weight of approximately 5.8 kg per pack. These dimensions provide flexible fit for mid-sized cabinets and ample space for routing pre-assembled cables while maintaining a compact form.
Yes. The upper channel is designed to accommodate cables with larger connectors such as DVI or VGA, enabling a clean, serviceable layout throughout the system without compromising routing efficiency.
The accessory aligns with ETIM EC000882 and ECLASS 27400556 classifications, supporting reliable data exchange, interoperability, and consistent specification in technical procurement workflows.
The design enables faster commissioning, easier servicing access, and reduced downtime, contributing to lower maintenance costs over time. Its durable aluminium profile and simple cut-to-length capability enable scalable cabinet designs with minimal required tooling and fast upgrades.
