Rittal CP 6218.200 Attachment - CP 180 Support 2,000 mm
Part Number: 6218200
Manufacturer
Rittal
Part number
6218200
Alt Part Number
CP 6218.200
Quick Summary
Rittal CP 6218.200 attachment sections streamline cable management inside modular enclosures for fast, compliant wiring. On-site cutting and alignment challenges lengthen install times and increase risk of cable damage during assembly. This solution aligns with ETIM 9 EC000882 and ECLASS 8.0 27400556, supporting interoperability and procurement standardization. Designed for durable integration with CP 180 components, the CP 6218.200 uses extruded aluminium in RAL 7035, delivering a robust, visually consistent enclosure network. It provides a reliable path for power and data cables while reducing lifecycle maintenance costs and enabling smoother future expansions. Standardization also helps procurement simplify BOMs and vendor management for industrial automation projects.
Product Information
Extended Description

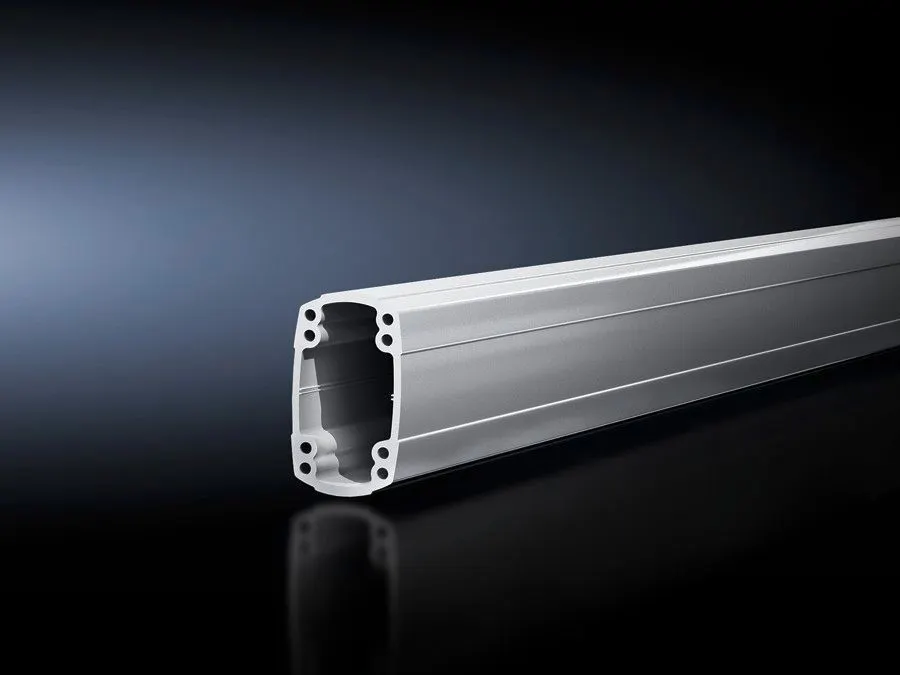

6218200 Rittal: CP Support section CP 180, solid, L: 2000 mm
Article number
CP 6218.200
Product description
Attachment to the connection components with 4 self-tapping screws in the screw channel. May be cut to any required length, no thread-tapping required. Closed cable duct with a large cross-section.
Material
Support section: Extruded aluminium section
Colour
Support section: RAL 7035
Supply includes
Support section
Length
2,000 mm
Dimensions
Width:Â 90 mm | Height:Â 160 mm | Length:Â 2,000 mm
Packs of
1 pc(s).
Weight/pack
21 kg
Customs tariff number
76042100
EAN
4028177683822
ETIM 9
EC000882
ECLASS 8.0
27400556
Product description
CP Support section CP 180, solid, L: 2000 mm
Attachment method and field-length flexibility enable rapid, accurate cable management. CP 6218.200 attaches to CP 180 connection components using four self-tapping screws in the screw channel, and it can be cut to any required length without thread-tapping. This reduces on-site installation time, minimizes mis-threading risks, and lowers labor costs for panel builders. Durability and colour matching support long-term reliability. The CP 6218.200 is manufactured from extruded aluminium and finished in RAL 7035, delivering corrosion resistance and excellent compatibility with other Rittal components. The solid CP 180 profile provides stable structural support, simplifies assembly sequencing, and helps maintain a uniform aesthetic across industrial control panels. Optimized cross-section for power and data cabling. With dimensions of 90 mm wide by 160 mm high and 2,000 mm long, this CP support section creates a large, closed cable duct that accommodates multiple conductors. The generous cross-section improves cable segregation, reduces bend radii issues, and supports efficient thermal management in dense panel layouts. Logistics and procurement advantages. Packs of 1 piece, weighing 21 kg per pack, streamline stocking and project planning. The predictable weight and size simplify shipping estimates and site handling, while enabling straightforward scoping for multi-panel installations and retrofits within existing Rittal ecosystems. Compatibility and installation confidence. Designed for seamless CP 180 integration, the CP 6218.200 aligns with standard CP components, minimizing field adjustments and rework during enclosure expansions or retrofits. The product data and ETIM/ECLASS classifications further support accurate cataloging and procurement workflows. Certification and identification data. The CP 6218.200 design integrates with EAN 4028177683822, tariff 76042100, ETIM 9 EC000882, and ECLASS 8.0 27400556, ensuring traceability and data integrity across procurement platforms.
Get a Quick Quote for a Rittal 6218200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6218200?
Enquire Now
FAQs
Install by aligning CP 6218.200 with CP 180 connection components, then insert four self-tapping screws into the screw channel. It can be cut to any required length without thread-tapping, which speeds field installation. Ensure clean channels and use the same RAL 7035 finish to maintain enclosure aesthetics and mechanical alignment.
The section measures 90 mm in width, 160 mm in height, and 2,000 mm in length, forming a large closed cable duct. The capacity depends on cable diameter and insulation, but the generous cross-section supports multiple power and data cables while preserving routing clarity and thermal performance in dense panels.
Constructed from extruded aluminium with a corrosion-resistant finish in RAL 7035, it withstands typical industrial automation conditions. For environments with extreme exposure, pair the section with appropriate enclosure housings, seals, and gaskets to maintain ingress protection and long-term reliability.
The CP 6218.200 carries ETIM 9 EC000882 and ECLASS 8.0 27400556 classifications. It also lists EAN 4028177683822 and tariff number 76042100, supporting precise cataloging, ERP integration, and procurement workflows across multi-vendor automation projects.
The cut-to-length capability reduces on-site install time and rework, delivering lower labor costs during cabinet builds. Durable aluminium extends service life, while standardized CP components simplify retrofits and maintenance, resulting in lower total cost of ownership for control panels and machine builds over the project lifecycle.
