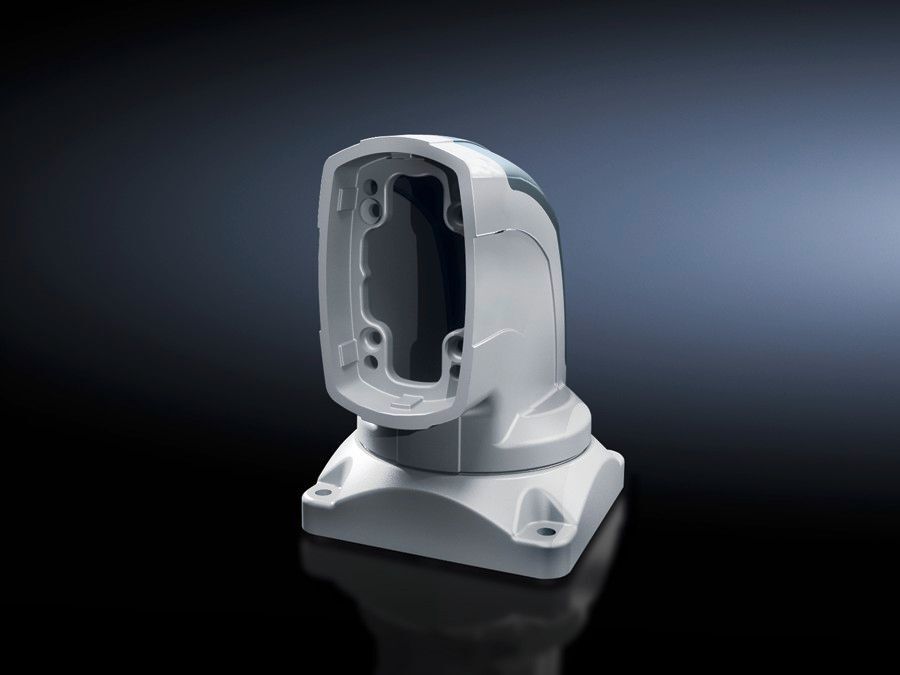

Rittal CP 6218.700 Top-mounted Joint - 330° Swivel
Part Number: 6218700
Manufacturer
Rittal
Part number
6218700
Alt Part Number
CP 6218.700
Quick Summary
Rittal CP 6218.700 Top-mounted Joint enables flexible, swivel-enabled mounting of the support arm system on horizontal surfaces, with the option for ceiling suspension in compact control cabinets. This solution addresses the frequent challenge of routing cables and adjusting arm positions in crowded enclosures, helping maintain clean layouts and reliable service access. The data sheet notes a top-mounted joint with a removable cover for easy cable entry and a rotation capability of approximately 330°, supporting robust, space-efficient configurations. Material choices—cast steel for the joint and plastic for the cover—balance durability with weight control. Designed for standard industrial practices, it aligns with common ETIM and ECLASS classifications, aiding procurement consistency and BOM accuracy while supporting installation scalability.
Product Information
Extended Description
6218700 Rittal: CP Top-mounted joint CP 180, outlet horizontal
Article number
CP 6218.700
Product description
For swivel mounting of the support arm system on horizontal surfaces – also suitable for suspending from the ceiling. Removable cover for simple cable entry.
Material
Top-mounted joint: Cast steel | Cover: Plastic
Colour
Top-mounted joint: RAL 7035 | Cover: RAL 7024
Supply includes
Seals | Screws for restricting rotation range | Adjusting screws | Self-tapping screws for support section attachment
Rotating/tilting
Yes
Rotation angle/swivel area
approx. 330°.
Packs of
1 pc(s).
Weight/pack
18 kg
PCF per pack (cradle-to-gate)
68.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177683860
ETIM 9
EC000882
ECLASS 8.0
27400556
Product description
CP Top-mounted joint CP 180, outlet horizontal
Feature → Business Impact → Application: The CP 6218.700 offers a 330° swivel range that expands mounting flexibility, reducing the need for multiple accessory arms and speeding up installation in control panels and electrical cabinets. This translates to measurable efficiency gains during setup and easier field adjustments when layout changes occur. Application: suitable for swivel mounting of the support arm system on horizontal surfaces, with ceilings suspension as an option for tight workspaces in machine rooms and distribution boards. Feature → Business Impact → Application: Removable cover enables simple cable entry and simplified maintenance, minimizing downtime during re-wiring or reconfigurations and improving ingress protection when seals are used. Application: ideal for modern enclosures requiring clean cable management and quick access.
Get a Quick Quote for a Rittal 6218700
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6218700?
Enquire Now
FAQs
This joint is designed for swivel mounting of the support arm system on horizontal surfaces, with optional ceiling suspension. Start by aligning the joint to the enclosure rail, secure with the supplied screws for rotation restriction, then attach the cover to enable cable entry. Use the self-tapping screws for the support section attachment as specified, and verify the 330° swivel range after installation to ensure unobstructed movement.
Key specs include a top-mounted joint made from cast steel, a plastic cover, and dual-color finish (joint in RAL 7035, cover in RAL 7024). The system supports rotating/tilting movement with a swivel range of approximately 330°, enabling broad adjustment without interference in most control cabinet layouts.
Yes. The CP 6218.700 is designed for swivel mounting on horizontal surfaces and is also suitable for suspending from the ceiling, offering versatile mounting options in constrained spaces such as crowded electrical infrastructure and compact machine enclosures.
The provided data does not list explicit CE, IP, or SIL certifications. For regulatory compliance, verify the product datasheet and regional requirements with your supplier to ensure CE marking and any IP protection levels are appropriate for your installation environment.
The joint provides flexible mounting with a wide 330° swivel, removable cable-entry coverage, and proven durability. This reduces wiring rework, accelerates installation, improves maintenance access, and supports lean BOMs through consistent classifications (ETIM/ECLASS), yielding lower lifecycle costs and faster ROI in dynamic control-panel projects.
