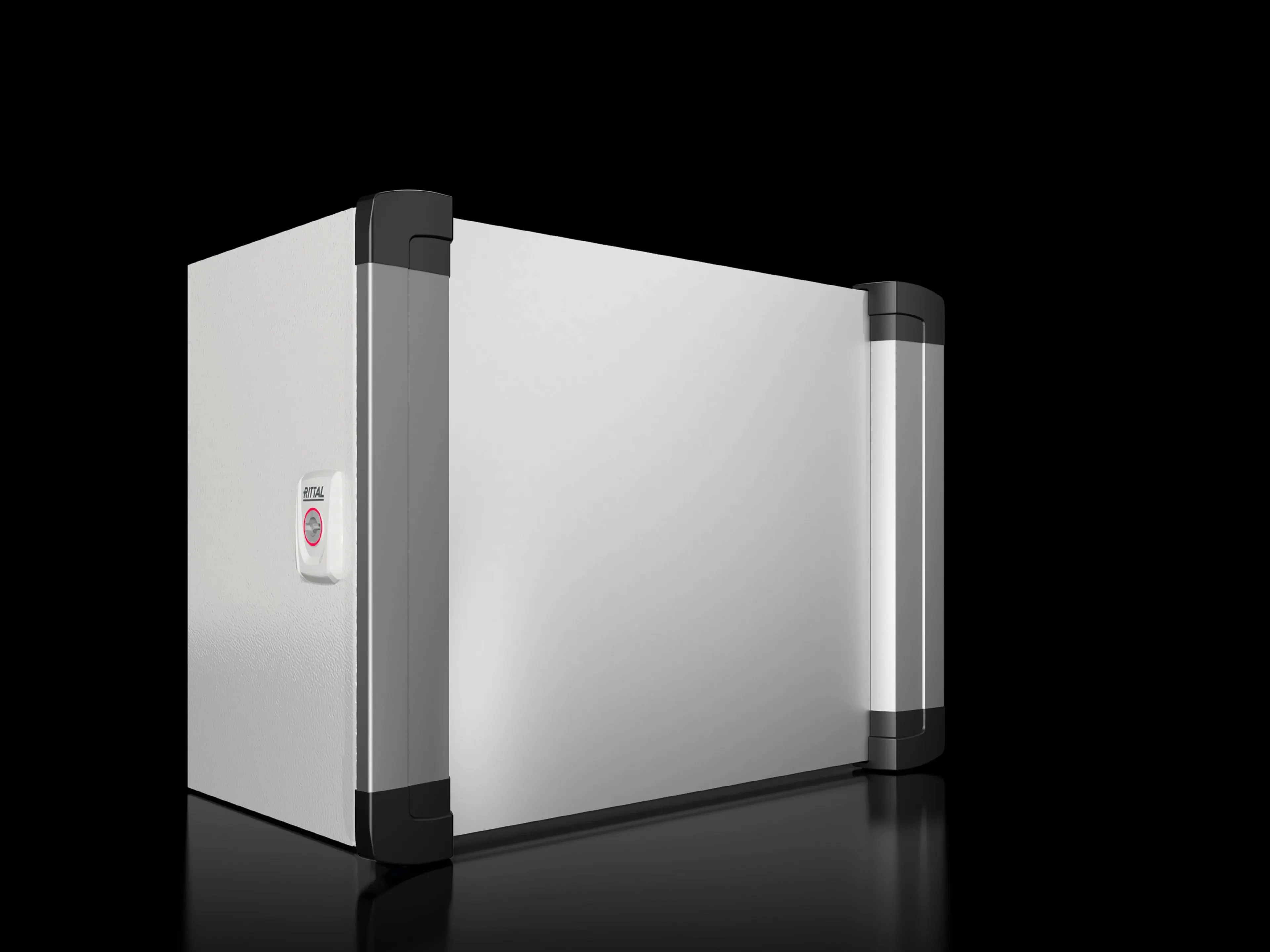

Rittal AX 6315.250 Enclosure - Front Access, Steel IP55
Part Number: 6315250
Manufacturer
Rittal
Part number
6315250
Alt Part Number
AX 6315.250
Quick Summary
Rittal AX 6315.250 Enclosure is a front-access operating housing for compact control cabinets and field installations. Users often struggle with maintenance through tight openings and front-panel work that disrupts production. This unit delivers IP55 protection, NEMA 1 configuration, UL Type 1 rating, and IK08 impact resistance to operate reliably in demanding environments. Its sheet steel shell with an aluminium front panel supports easy customization, while the integrated reinforcements and front access streamline servicing in CP 60/120/180 installations. Together these features help minimize downtime and extend cabinet lifespan, delivering measurable efficiency for controls and automation projects.
Product Information
Extended Description
6315250 Rittal: AX Operating housing with handle strips, WHD: 380x300x210 mm, sheet steel, aluminium handle strips, servicing access from the front
Article number
AX 6315.250
Design
Support arm connection Ø 130 mm
Material
Enclosure: Sheet steel | Door: Sheet steel, all-round foamed-in PU seal | Front panel: Aluminium | Cover caps: Plastic
Surface finish
Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint | Handle strip: Natural anodised | Front panel: Natural anodised
General colour
RAL 7035
Colour
Enclosure and door: RAL 7035 | Handle strip: Natural anodised | Front panel: Natural anodised | Cover caps: similar to RAL 7024
Supply includes
Enclosure with cut-out and reinforcement for support arm connection Ø 130 mm | Front with maximum cut-out, covered with easily machinable 3 mm aluminium front panel | Side handle strips with cover caps | Integral interior installation bracket with system punchings | Cam lock with 3 mm double-bit insert
Dimensions
Width: 380 mm | Height: 300 mm | Depth: 210 mm
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
Design
Servicing access from the front
IK Code
IK08
Note
The support arm connection and door hinge may be swapped over by rotating the enclosure
Basic material
Sheet steel
Note on Model No.
Matching mounting panel 5051.370 with dispatch bag 5051.300
Packs of
1 pc(s).
Weight/pack
8.06 kg
PCF per pack (cradle-to-gate)
35.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177923140
ETIM 9
EC002504
ETIM 8
EC002504
ECLASS 8.0
27180505
Product description
AX Operating housing with handle strips, WHD: 380x300x210 mm, sheet steel, aluminium handle strips, servicing access from the front
Front servicing access reduces maintenance time and minimizes production interruptions, enabling faster wiring checks and routine servicing in tight spaces while maintaining enclosure integrity. The 130 mm support arm connection is designed for CP 60/120/180 systems, simplifying retrofits and future scalability without replacing the enclosure. A robust sheet steel enclosure paired with an easily machinable aluminium front panel enables rapid field modifications and panel customization for specific daughter cards or sensors, lowering changeover costs and accelerating time-to-value on upgrade projects. The combination of PU-sealed door gaskets and IP55/NEMA 1 protection provides dependable dust and water ingress protection in harsher environments, ensuring equipment longevity. An integral interior installation bracket with system punchings and a cam lock with a 3 mm double-bit insert streamlines assembly, wiring, and service access, helping technicians complete installations on time with fewer tools. The overall design supports CP mounting panels and ensures consistent fitment with matching components like mounting panel 5051.370, reducing the risk of misalignment or rework. This enclosure is well-suited for industrial automation cabinets, control panels, and machine builders seeking a durable, adaptable housing that minimizes downtime and supports certified installation practices.
Get a Quick Quote for a Rittal 6315250
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6315250?
Enquire Now
FAQs
The AX 6315.250 is designed with a Ø130 mm support arm connection that aligns with CP 60/120/180 systems, facilitating quick integration and removal of support arms. It ships with reinforced mounting provisions and matches mounting panel 5051.370 for consistent fitment, reducing installation time and the likelihood of misalignment during cabinet assembly.
This enclosure offers IP55 protection and NEMA 1 configuration, complemented by IK08 impact resistance and UL Type 1 rating. The combination supports reliable operation in dusty or damp environments, while meeting common industry standards for electrical enclosures and ensuring safe, compliant installations across OEM and end-user facilities.
Front servicing access is designed to minimize door removals during routine maintenance. The unit provides a front panel with easy machinable aluminium, a cam lock with a 3 mm double-bit insert, and an interior installation bracket with system punchings. This setup enables quick component swaps, streamlined wiring, and effortless reconfiguration without disrupting other mounted equipment.
Yes. The enclosure uses a sheet steel shell with a protective PU gasket seal and IP55/NEMA 1 protection, which delivers dust and water ingress resistance suited for many industrial environments. IK08 adds mechanical ruggedness, helping the housing withstand impact and vibrations common in manufacturing floors.
The enclosure supports front-access servicing, reducing maintenance downtime, and its compatibility with CP mounting systems accelerates installation. The aluminium front panel simplifies field modifications, while reinforced interiors and punchings speed wiring. Collectively these factors lower labor time, minimize rework, and extend cabinet life, delivering faster project completion and lower total cost of ownership.
