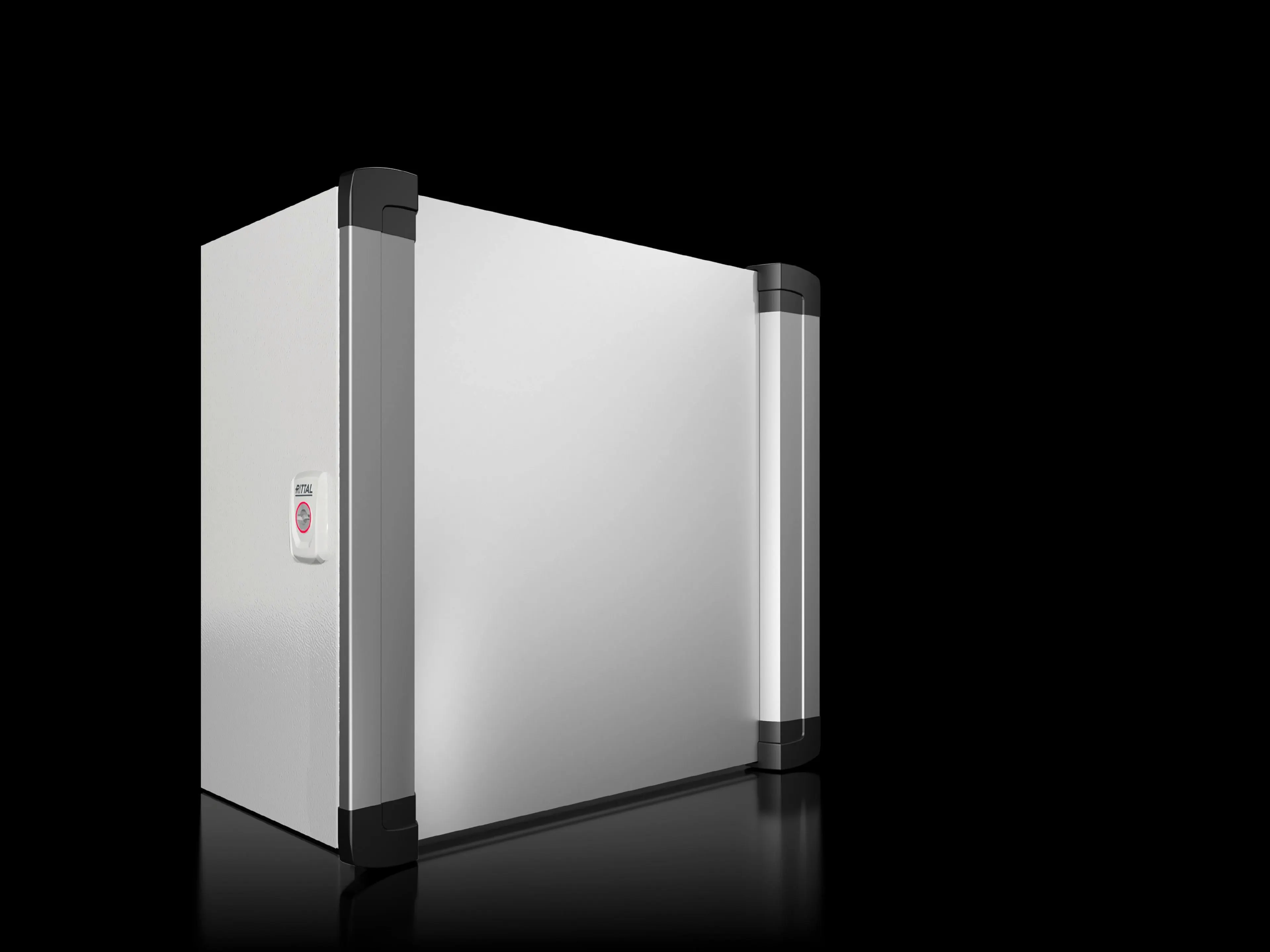

Rittal 6315350 Operating Housing - IP55 (AX 6315.350)
Part Number: 6315350
Manufacturer
Rittal
Part number
6315350
Alt Part Number
AX 6315.350
Quick Summary
AX 6315.350 operating housing with handle strips protects control panels in industrial enclosures. Front servicing access reduces downtime and simplifies field maintenance in crowded cabinets. It delivers IP55 protection, NEMA 1 and UL Type 1 ratings, plus IK08 impact resistance, so equipment stays protected in harsh environments. Designed for enclosures & electrical infrastructure, it supports CP arm systems and machinable aluminium front panels, delivering faster installs and long-term cost of ownership.
Product Information
Extended Description
6315350 Rittal: AX Operating housing with handle strips, WHD: 380x380x210 mm, sheet steel, aluminium handle strips, servicing access from the front
Article number
AX 6315.350
Design
Support arm connection Ø 130 mm
Material
Enclosure: Sheet steel | Door: Sheet steel, all-round foamed-in PU seal | Front panel: Aluminium | Cover caps: Plastic
Surface finish
Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint | Handle strip: Natural anodised | Front panel: Natural anodised
General colour
RAL 7035
Colour
Enclosure and door: RAL 7035 | Handle strip: Natural anodised | Front panel: Natural anodised | Cover caps: similar to RAL 7024
Supply includes
Enclosure with cut-out and reinforcement for support arm connection Ø 130 mm | Front with maximum cut-out, covered with easily machinable 3 mm aluminium front panel | Side handle strips with cover caps | Integral interior installation bracket with system punchings | Cam lock with 3 mm double-bit insert
Dimensions
Width: 380 mm | Height: 380 mm | Depth: 210 mm
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
Design
Servicing access from the front
IK Code
IK08
Note
The support arm connection and door hinge may be swapped over by rotating the enclosure
Basic material
Sheet steel
Note on Model No.
Matching mounting panel 5051.371 with dispatch bag 5051.300
Packs of
1 pc(s).
Weight/pack
9.26 kg
PCF per pack (cradle-to-gate)
40.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177923157
ETIM 9
EC002504
ETIM 8
EC002504
ECLASS 8.0
27180505
Product description
AX Operating housing with handle strips, WHD: 380x380x210 mm, sheet steel, aluminium handle strips, servicing access from the front
Feature: Front servicing access enables quick maintenance without removing the enclosure, reducing downtime and improving uptime metrics in automation cabinets. Business impact: Faster service cycles translate to lower labour costs and shorter production interruptions, especially in high-traffic control rooms. Application: Ideal for PLC cabinets and power distribution enclosures in manufacturing lines. Feature: Removable aluminium front panel allows rapid machining and customization for panel integrations. Business impact: Improves commissioning speed and enables on-site modifications without evoking rework or enclosure teardown. Application: Suitable for machine builders needing flexible I/O access and rapid adapter installation. Feature: CP arm compatibility with Ø130 mm connection supports CP 60/120/180, integrating mounting infrastructure. Business impact: Streamlines cross-compatibility with common mounting systems, reducing installation steps and inventory variety. Application: Utility panels and switchgear bays requiring modular support arms. Feature: Structural materials and finish combine sheet steel enclosure, aluminium front panel and anodised handle strips for durability. Business impact: Enhanced corrosion resistance and mil-spec durability reduce replacement frequency in demanding plants. Application: Harsh environments, outdoor or damp indoor facilities. Feature: Comprehensive protection suite IP55, NEMA 1 and IK08, plus a 380x380x210 mm footprint with 9.26 kg weight per pack. Business impact: Delivers consistent protection against dust and water ingress with robust impact resistance, while keeping installation compact. Application: Small to mid-sized control cabinets within automation projects. Feature: Integral interior installation bracket with system punchings, cam lock with 3 mm double-bit insert, and easy pairing with matching mounting panel 5051.371. Business impact: Reduces field modification time, ensures secure fastening, and accelerates project timelines. Application: Factory automation skids and control panels requiring quick turn-key assembly.
Get a Quick Quote for a Rittal 6315350
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6315350?
Enquire Now
FAQs
Begin with a 380x380 mm footprint and prepare the CP arm mounting area for Ø130 mm connections. Attach the enclosure using compatible mounting hardware, connect the interior installation bracket, and use the cam lock with a 3 mm double-bit insert for secure access. The design allows front servicing and easy door/hinge swaps by rotating the enclosure, optimizing setup time.
Yes. The enclosure provides IP55 ingress protection and NEMA 1 compatibility, complemented by UL Type 1 rating and IK08 impact resistance. Its sheet steel construction, PU-sealed door, and anodised finishes contribute to reliable protection in industrial environments while maintaining serviceability from the front.
The front panel is aluminium and 3 mm thick, designed for easy machining and maximum cut-outs. It ships with a removable front that can be machined on-site and pairs with the matching mounting panel 5051.371 for seamless integration in customised enclosures.
Each pack weighs 9.26 kg and is sold as a single unit. The PCF (cradle-to-gate) is rated at 40.7 kg CO2 eq (Category B). This enclosure ships as 1 piece per pack, enabling straightforward planning for modular builds in automation projects.
The AX 6315.350 carries IP55, NEMA 1, and UL Type 1 protections, IK08 impact resistance, and aligns with ETIM EC002504 and ECLASS 27180505 classifications. It also lists EAN 4028177923157 and customs tariff 94032080, ensuring traceability for procurement and compliance teams.
