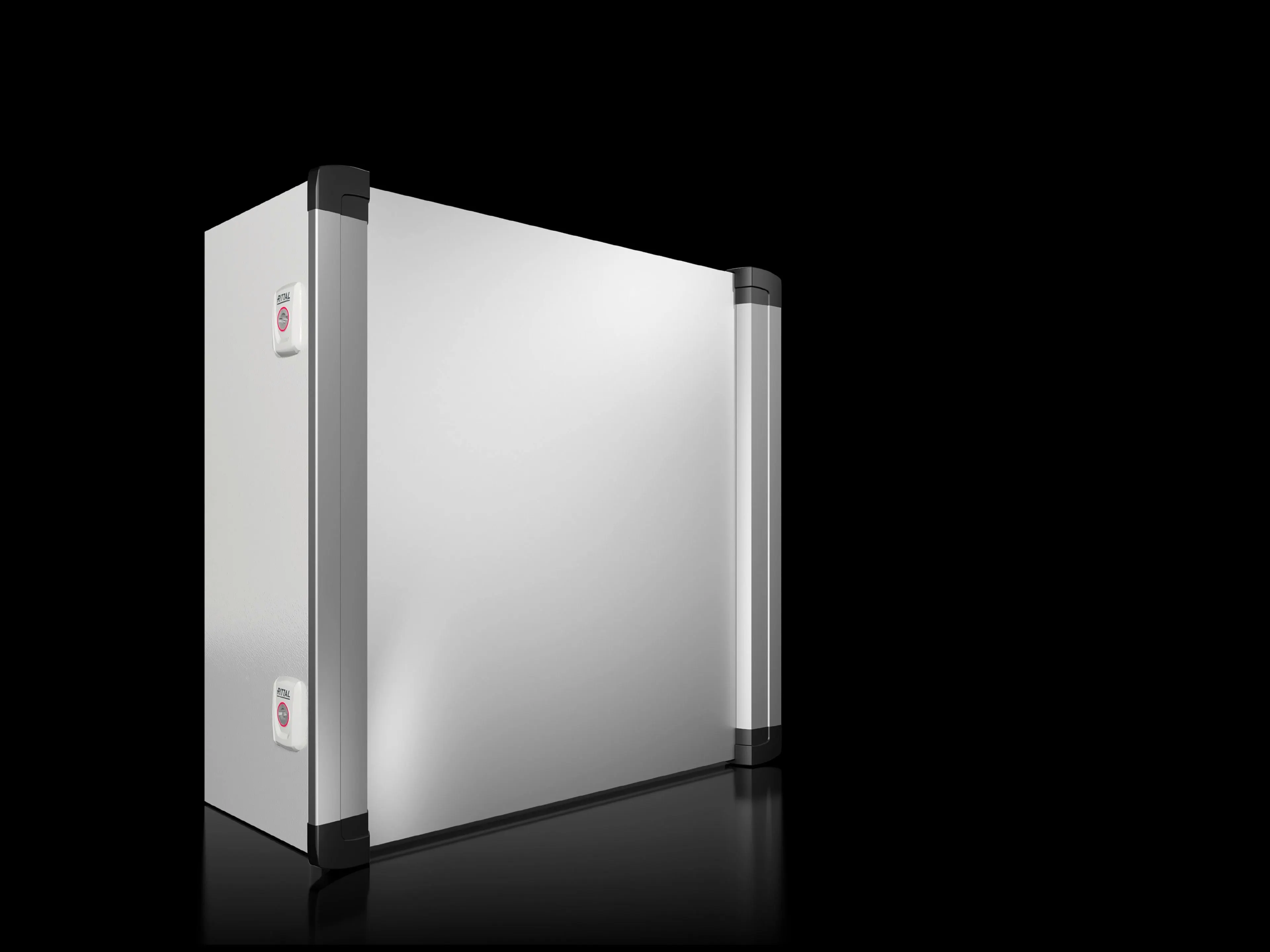

Rittal AX 6315.450 Operating housing - IP55
Part Number: 6315450
Manufacturer
Rittal
Part number
6315450
Alt Part Number
AX 6315.450
Quick Summary
Rittal AX 6315.450 operating housing provides front-access servicing for industrial control panels. Engineers often struggle with maintenance downtime when access is restricted by door design or front-panel constraints. This enclosure delivers IP55 protection, IK08 impact resistance, and UL 50E Type 1/NEMA 1 compliance, supporting safe, regulatory-aligned installations. With a machined aluminium front panel and natural anodised handle strips, it enables fast retrofits and clean cabling layouts, while CP 60/120/180 support-arm compatibility lowers installation complexity and lifecycle costs.
Product Information
Extended Description
6315450 Rittal: AX Operating housing with handle strips, WHD: 500x500x210 mm, sheet steel, aluminium handle strips, servicing access from the front
Article number
AX 6315.450
Design
Support arm connection Ø 130 mm
Material
Enclosure: Sheet steel | Door: Sheet steel, all-round foamed-in PU seal | Front panel: Aluminium | Cover caps: Plastic
Surface finish
Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint | Handle strip: Natural anodised | Front panel: Natural anodised
General colour
RAL 7035
Colour
Enclosure and door: RAL 7035 | Handle strip: Natural anodised | Front panel: Natural anodised | Cover caps: similar to RAL 7024
Supply includes
Enclosure with cut-out and reinforcement for support arm connection Ø 130 mm | Front with maximum cut-out, covered with easily machinable 3 mm aluminium front panel | Side handle strips with cover caps | Integral interior installation bracket with system punchings | Cam lock with 3 mm double-bit insert
Dimensions
Width: 500 mm | Height: 500 mm | Depth: 210 mm
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
Design
Servicing access from the front
IK Code
IK08
Note
The support arm connection and door hinge may be swapped over by rotating the enclosure
Basic material
Sheet steel
Note on Model No.
Matching mounting panel 5051.375 with dispatch bag 5051.300
Packs of
1 pc(s).
Weight/pack
13.2 kg
PCF per pack (cradle-to-gate)
59.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177923201
ETIM 9
EC002504
ETIM 8
EC002504
ECLASS 8.0
27180505
Product description
AX Operating housing with handle strips, WHD: 500x500x210 mm, sheet steel, aluminium handle strips, servicing access from the front
The AX 6315.450 features front servicing access that reduces maintenance time and increases line uptime, translating to lower production pauses and faster changeovers in control cabinets. The Ø 130 mm support-arm connection supports CP 60/120/180 systems, enabling modular mounting and scalable enclosure configurations for evolving automation needs. Built from sheet steel with an aluminium front panel, it withstands industrial environments while offering easy front-panel machining for custom installations and quick component upgrades. The enclosure provides IP55 protection and IK08 impact resistance, delivering reliable safety and compliance in harsh environments, with a NEMA 1 / UL 50E Type 1 designation for broader North American compatibility. The 500x500x210 mm WHD keeps within compact footprints while integral interior brackets and a cam lock with a 3 mm double-bit insert streamline assembly and service. The enclosure also allows hinge/arm rotation for swapped configurations, supporting flexible installation in space-constrained facilities and helping reduce total cost of ownership.
Get a Quick Quote for a Rittal 6315450
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6315450?
Enquire Now
FAQs
The AX 6315.450 includes a Ø 130 mm support-arm connection compatible with CP 60/120/180 systems. Use the integral interior installation bracket with system punchings to mount components, then align the enclosure’s arm connection and secure with the cam lock. If required, rotate the enclosure to swap door hinge and arm positions for optimal cabling and access.
AX 6315.450 uses sheet steel for the enclosure and door, with a 3 mm aluminium front panel. It offers IP55 protection, IK08 impact resistance, and NEMA 1 / UL 50E Type 1 ratings, ensuring safe operation in damp or dusty industrial environments while supporting regulatory compliance.
Yes. Designed for front servicing, the AX 6315.450 enables quick access to interior components without removing the enclosure, reducing maintenance time and downtime. Its machinable aluminium front panel supports customization, while the front access design pairs with standard mounting panels to streamline retrofits and upgrades.
The enclosure is rated for IP55 and IK08, with UL 50E Type 1 and NEMA 1 compliance, aligning with common North American and global safety standards. This combination supports safer electrical installations in manufacturing, process plants, and data-center-adjacent environments.
Front-access servicing minimizes downtime during updates or repairs, while the robust sheet-steel construction extends service life in challenging environments. The design supports easy front-panel modifications and CP arm compatibility, reducing retrofit costs and enabling scalable configurations that improve total cost of ownership over the system lifecycle.
