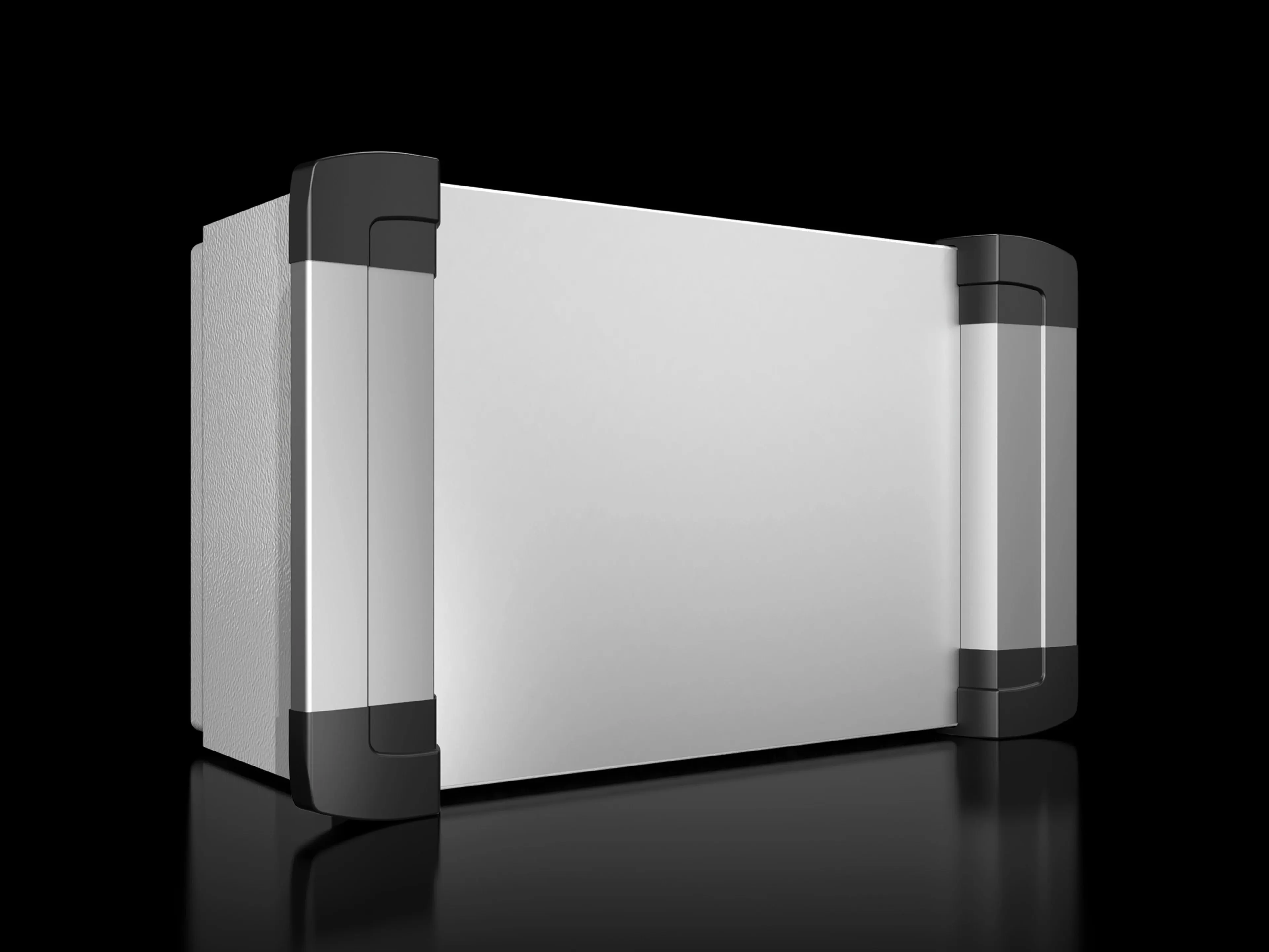

Rittal AX 6320.050 Operating housing - IP55 CP 60/120/180
Part Number: 6320050
Manufacturer
Rittal
Part number
6320050
Alt Part Number
AX 6320.050
Quick Summary
Rittal AX 6320.050 operating housing protects control electronics for machine automation in production lines. For integrators and maintenance teams, rear servicing and a removable aluminium front panel reduce downtime during panel modifications. Key certifications and ratings, including IP55 protection, IK08 impact resistance, and UL 50E Type 1/NEMA 1, help ensure compliance and safety in harsh environments. The enclosure's robust sheet steel body, machinable aluminium front, and CP arm compatibility support efficient installation and scalable control architecture. Choosing this unit translates to lower lifecycle costs, faster deployment, and consistent protection across automation projects.
Product Information
Extended Description
6320050 Rittal: AX Operating housing with handle strips, WHD: 300x200x155 mm, sheet steel, aluminium handle strips, servicing access from the rear
Article number
AX 6320.050
Design
Support arm connection Ø 130 mm
Material
Enclosure: Sheet steel | Door: Sheet steel, all-round foamed-in PU seal | Front panel: Aluminium | Cover caps: Plastic
Surface finish
Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint | Handle strip: Natural anodised | Front panel: Natural anodised
General colour
RAL 7035
Colour
Enclosure and door: RAL 7035 | Handle strip: Natural anodised | Front panel: Natural anodised | Cover caps: similar to RAL 7024
Supply includes
Enclosure with cut-out and reinforcement for support arm connection Ø 130 mm | Front with maximum cut-out, covered with easily machinable 3 mm aluminium front panel | Side handle strips with cover caps | Integral interior installation bracket with system punchings | Cam lock with 3 mm double-bit insert
Dimensions
Width: 300 mm | Height: 200 mm | Depth: 155 mm
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
Design
Servicing access from the rear
IK Code
IK08
Note
The support arm connection and door hinge may be swapped over by rotating the enclosure
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
4.58 kg
PCF per pack (cradle-to-gate)
19.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177923218
ETIM 9
EC002504
ETIM 8
EC002504
ECLASS 8.0
27180505
Product description
AX Operating housing with handle strips, WHD: 300x200x155 mm, sheet steel, aluminium handle strips, servicing access from the rear
Feature: Robust enclosure construction using sheet steel with a powder-coated exterior and a natural anodised aluminium front panel. Business Impact: Provides durable protection against dust and moisture while enabling easy panel machining for custom layouts. Application: Ideal for compact control cabinets in manufacturing lines where reliable environmental sealing and field modifications are needed.\n\nFeature: IP55 protection with IK08 impact resistance and NEMA 1 / UL 50E Type 1 rating. Business Impact: Ensures safe operation in demanding environments and simplifies regulatory compliance across international sites. Application: Suitable for packaging, robotics, and process automation where moisture and physical impact are considerations.\n\nFeature: Servicing access from the rear and a removable front panel. Business Impact: Minimizes maintenance downtime and accelerates component swap-outs without removing the enclosure from the installation. Application: Critical for uptime in continuous production or configurable test benches.\n\nFeature: Support arm connection Ø130 mm and CP 60/120/180 compatibility. Business Impact: Enables modular mounting and scalable upgrades with standardized arm systems, reducing stock and customization. Application: Ideal for machine tool enclosures and modular automation lines.\n\nFeature: Integral interior installation bracket with system punchings and cam lock with 3 mm double-bit insert. Business Impact: Speeds assembly, ensures secure mounting, and reduces tooling requirements. Application: Quick-turn panel builds and service-friendly configurations in OEM shops.\n\nFeature: Compact 300x200x155 mm footprint and total weight of 4.58 kg per pack. Business Impact: Small form factor eases installation in tight spaces and improves handling during installation and transport. Application: Control panels in compact automation layouts and on-line equipment where space is at a premium.
Get a Quick Quote for a Rittal 6320050
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6320050?
Enquire Now
FAQs
Yes, AX 6320.050 supports CP 60/120/180 with a Ø130 mm arm connection and includes an integral interior installation bracket with system punchings. Rear servicing simplifies panel updates and routine maintenance, reducing downtime during commissioning or field modifications while enabling quick access without removing the enclosure from its mounting.
The enclosure uses sheet steel with a powder-coated exterior and a natural anodised aluminium front panel. It provides IP55 protection, IK08 impact resistance, NEMA 1 rating, and UL 50E Type 1 compliance, making it suitable for harsh industrial environments and cross-border installations.
This compact enclosure is ideal for machine builders, packaging lines, and automation cabinets where space is limited but protection is essential. Its rear servicing, machinable front panel, and CP arm compatibility make it well-suited for modular control panels, automation terminals, and small-scale process equipment in manufacturing and assembly environments.
The unit carries NEMA 1 and UL 50E Type 1 ratings, IK08, and IP55 protection. It aligns with ETIM 9/8 EC002504 and ECLASS 8.0 code 27180505. Documentation typically includes technical datasheets and installation notes; confirm local compliance needs for regional certifications and CE requirements.
Rear servicing minimizes downtime during preventive maintenance and upgrades, while the removable aluminium front panel supports rapid field modifications. The compact 4.58 kg weight and integrated mounting assist handling and logistics, and the PCF of 19.1 kg CO2 eq per pack informs sustainability goals in procurement decisions.
