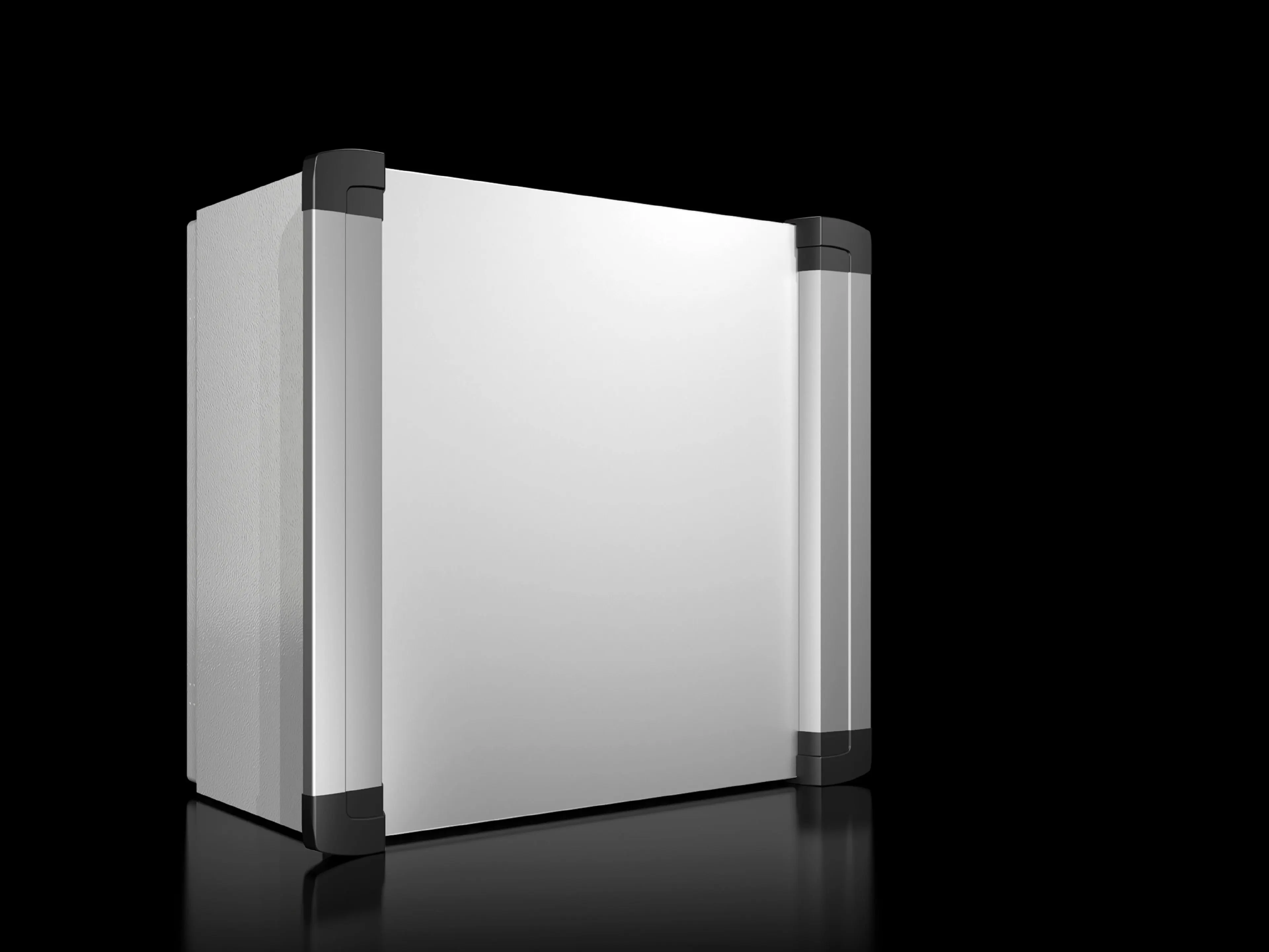

Rittal AX 6320.350 Operating housing - IP55 Enclosure
Part Number: 6320350
Manufacturer
Rittal
Part number
6320350
Alt Part Number
AX 6320.350
Quick Summary
Rittal AX 6320.350 Operating housing is a sheet-steel enclosure designed for industrial control panels with rear servicing access. This compact unit helps minimize maintenance downtime by allowing technicians to reach interior components without removing the entire enclosure. It supports robust industry requirements with IP55 protection, IK08 impact resistance, and NEMA 1 / UL Type 1 compliance for diverse regulatory environments. The design emphasizes fast, cost-efficient customization and reliable operation, while the removable aluminium front panel and Ø130 mm support arm connection enable flexible installations and future upgrades. For engineers seeking durable, modular enclosures, this model delivers consistent performance and predictable total cost of ownership.
Product Information
Extended Description
6320350 Rittal: AX Operating housing with handle strips, WHD: 380x380x210 mm, sheet steel, aluminium handle strips, servicing access from the rear
Article number
AX 6320.350
Design
Support arm connection Ø 130 mm
Material
Enclosure: Sheet steel | Door: Sheet steel, all-round foamed-in PU seal | Front panel: Aluminium | Cover caps: Plastic
Surface finish
Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint | Handle strip: Natural anodised | Front panel: Natural anodised
General colour
RAL 7035
Colour
Enclosure and door: RAL 7035 | Handle strip: Natural anodised | Front panel: Natural anodised | Cover caps: similar to RAL 7024
Supply includes
Enclosure with cut-out and reinforcement for support arm connection Ø 130 mm | Front with maximum cut-out, covered with easily machinable 3 mm aluminium front panel | Side handle strips with cover caps | Integral interior installation bracket with system punchings | Cam lock with 3 mm double-bit insert
Dimensions
Width: 380 mm | Height: 380 mm | Depth: 210 mm
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
Design
Servicing access from the rear
IK Code
IK08
Note
The support arm connection and door hinge may be swapped over by rotating the enclosure
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
9.16 kg
PCF per pack (cradle-to-gate)
40.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177923164
ETIM 9
EC002504
ETIM 8
EC002504
ECLASS 8.0
27180505
Product description
AX Operating housing with handle strips, WHD: 380x380x210 mm, sheet steel, aluminium handle strips, servicing access from the rear
Feature: Rear servicing access enables technicians to reach interior components without removing the entire unit. Business Impact: Reduces downtime and labor costs during routine maintenance or upgrades. Application: Ideal for control panels where front access is obstructed by wiring channels or mounting rails. Feature: Removable aluminium front panel facilitates machining and customization. Business Impact: Accelerates integration of customer components and reduces field modification time. Application: Suitable for panels requiring on-site alterations or sensor integration prior to commissioning. Feature: Ø130 mm support arm connection supports CP 60/120/180 systems. Business Impact: Fast, secure mounting with proven arm compatibility, lowering installation time. Application: Perfect for modular arm systems in machine enclosures. Feature: Sheet steel construction with protective finishes. Business Impact: High mechanical strength and long-term corrosion resistance in harsh environments. Application: Industrial environments demanding reliable exterior protection and long service life. Feature: IP55 and IK08-rated enclosure with aluminium/anodised details. Business Impact: Meets moisture and impact resistance requirements while enabling safe operation in demanding locations. Application: Enclosures exposed to dust, water splashes, and physical impacts in automation cells. Feature: Dimensions and packaging aligned with standard panel buildouts. Business Impact: Simplifies space planning and reduces need for custom fabrication. Application: Ideal for compact control panels and modular arrays in limited footprints. Feature: PCF sustainability data supports informed procurement. Business Impact: Supports green purchasing goals and lifecycle assessments. Application: Preference for low-CO2 footprint components in manufacturing environments.
Get a Quick Quote for a Rittal 6320350
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6320350?
Enquire Now
FAQs
Yes. The AX 6320.350 includes a dedicated Ø130 mm support arm connection designed for CP 60/120/180 systems, enabling fast, secure mounting. It also features rear servicing access and an integral interior installation bracket, which simplifies mounting and component layout without sacrificing accessibility.
The enclosure measures 380 mm width, 380 mm height, and 210 mm depth. It is constructed from sheet steel for the enclosure and door, with an aluminium front panel and plastic cover caps. The surface finish combines primed, powder-coated exterior with natural anodised handle strips and front panel for durability and ease of machining.
The AX 6320.350 provides IP55 protection and IK08 impact resistance, with NEMA 1 and UL Type 1 design ratings. It is designed to meet common European and North American enclosure standards, supporting regulatory compliance in mixed environments.
Rear servicing access lets technicians operate and service interior components without removing the front or entire unit, reducing downtime during diagnostics and upgrades. When combined with the easily removable aluminium front panel, it speeds component replacement and reconfiguration while minimizing risk to front-facing seals.
The product reports a PCF of 40.7 kg CO2eq (Cat B) per pack, reflecting cradle-to-gate emissions. Each pack contains 1 enclosure, with a weight of 9.16 kg. This supports lifecycle assessment efforts and helps buyers meet environmental procurement targets.
