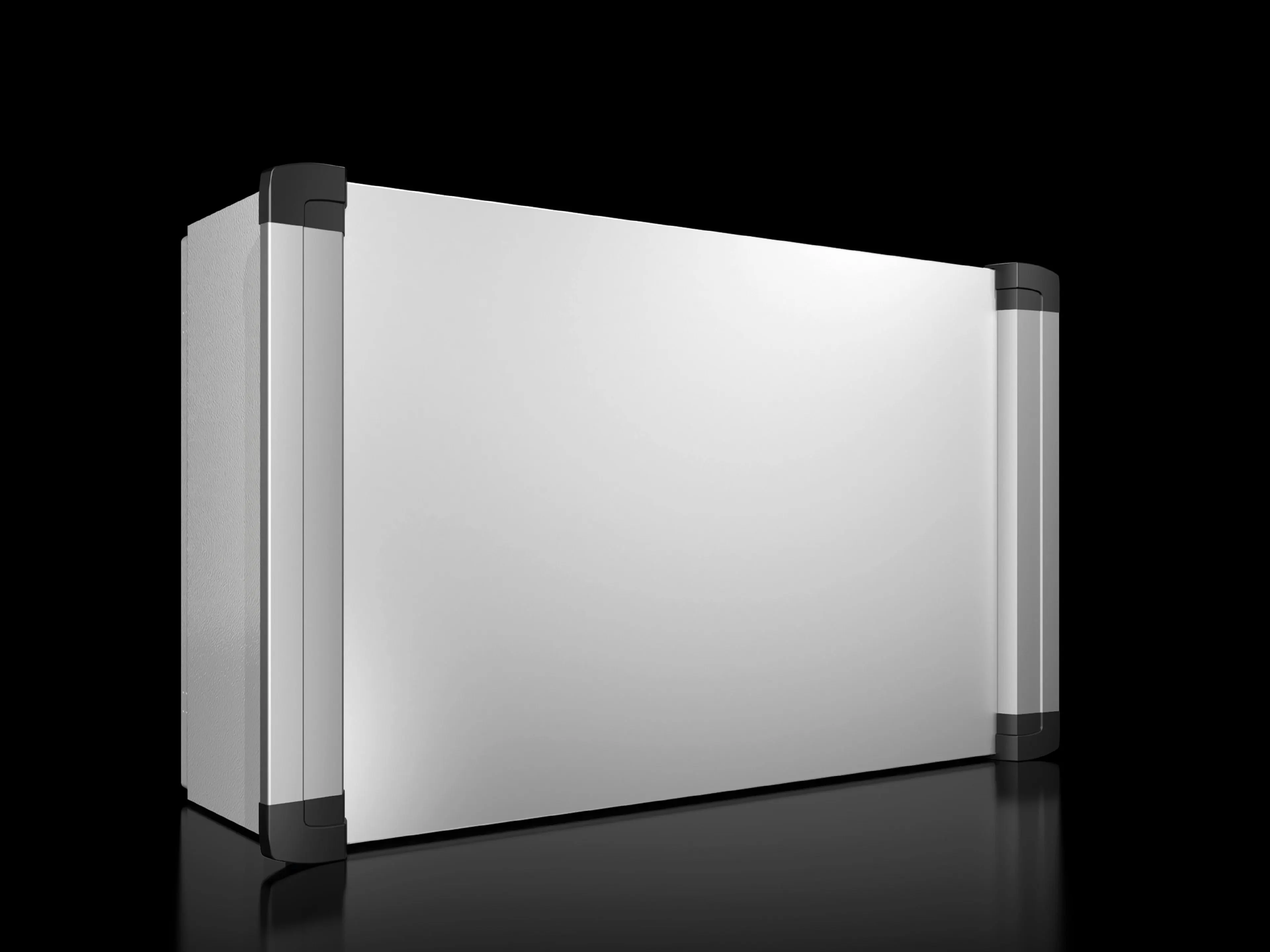

Rittal AX 6320.550 Operating Housing - IP55
Part Number: 6320550
Manufacturer
Rittal
Part number
6320550
Alt Part Number
AX 6320.550
Quick Summary
Rittal AX 6320.550 Operating housing is a compact enclosure solution designed for rear servicing in control panels and industrial machines. This design addresses common wiring and maintenance challenges in tight spaces by providing rear servicing access and a machinable aluminium front panel. Key ratings and standards include IP55 protection, IK08 durability, and UL 50E Type 1 compatibility, supporting reliable indoor operation in harsh environments. With a robust sheet steel body and modular handling features, it delivers clear business value for machine builders seeking scalable protection, efficient assembly, and straightforward field upgrades that reduce downtime and maintenance costs.
Product Information
Extended Description
6320550 Rittal: AX Operating housing with handle strips, WHD: 600x380x210 mm, sheet steel, aluminium handle strips, servicing access from the rear
Article number
AX 6320.550
Design
Support arm connection Ø 130 mm
Material
Enclosure: Sheet steel | Door: Sheet steel, all-round foamed-in PU seal | Front panel: Aluminium | Cover caps: Plastic
Surface finish
Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint | Handle strip: Natural anodised | Front panel: Natural anodised
General colour
RAL 7035
Colour
Enclosure and door: RAL 7035 | Handle strip: Natural anodised | Front panel: Natural anodised | Cover caps: similar to RAL 7024
Supply includes
Enclosure with cut-out and reinforcement for support arm connection Ø 130 mm | Front with maximum cut-out, covered with easily machinable 3 mm aluminium front panel | Side handle strips with cover caps | Integral interior installation bracket with system punchings | Cam lock with 3 mm double-bit insert
Dimensions
Width: 600 mm | Height: 380 mm | Depth: 210 mm
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
Design
Servicing access from the rear
IK Code
IK08
Note
The support arm connection and door hinge may be swapped over by rotating the enclosure
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
12.6 kg
PCF per pack (cradle-to-gate)
57.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177923195
ETIM 9
EC002504
ETIM 8
EC002504
ECLASS 8.0
27180505
Product description
AX Operating housing with handle strips, WHD: 600x380x210 mm, sheet steel, aluminium handle strips, servicing access from the rear
AX 6320.550 uses a 600x380x210 mm sheet steel enclosure with aluminium front panel and handle strips, delivering rear servicing access and a reinforcement for a Ø 130 mm support arm. This combination reduces downtime by enabling servicing without full door removal, while maintaining secure access via the cam lock and 3 mm double-bit insert. The design supports CP 60/120/180 support arms and system punchings, simplifying installation in tight control cabinets and automated lines. With IP55 protection and IK08 impact resistance, it withstands dust and moisture on factory floors while preserving electronics in demanding environments. The interior installation bracket and easily machinable 3 mm aluminium front panel offer customization for field upgrades, while the natural anodised handles and front panel improve corrosion resistance and aesthetics. Packaged as 1 piece per pack with 12.6 kg weight, AX 6320.550 also provides cradle-to-gate PCF data for sustainability assessments.
Get a Quick Quote for a Rittal 6320550
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6320550?
Enquire Now
FAQs
AX 6320.550 supports rear servicing access and a Ø130 mm support arm connection, with integral interior installation bracket and system punchings. Its dimensions fit standard 600 mm wide cabinets, easing mounting in compact control panels. The enclosure is prepared for CP 60/120/180 systems, enabling quick integration with existing rack and arm configurations.
Key specs include a WHD of 600x380x210 mm, sheet steel enclosure, aluminium front panel, and natural anodised handle strips. The product offers IP55 protection, IK08 durability, NEMA 1, and UL 50E Type 1 compliance, with a weight of 12.6 kg per pack and 1 piece per pack. The front is easily machinable aluminium to match customer needs.
Yes. The enclosure provides IP55 protection against dust and water exposure, together with IK08 impact resistance for robust use on factory floors. The sheet steel body with prime coating and powder-coated exterior, along with anodised components, aids long-term corrosion resistance. For indoor control panels and machine controls, this enclosure maintains reliability over multiple production cycles.
AX 6320.550 features UL 50E Type 1 and NEMA 1 compatibility, IK08 impact rating, and IP55 protection. The design uses a sheet steel body with PU seals and an aluminium front panel, aligning with common EU and US market requirements for indoor electrical enclosures. Product identifiers include EAN 4028177923195 and Customs tariff 94032080.
The rear servicing access reduces maintenance downtime by enabling wiring changes or module swaps without removing the enclosure door. Its modular design and compatibility with CP 60/120/180 arms streamline upgrades, while the machinable aluminium front panel supports layout changes. Overall, this translates to lower service costs, faster changeovers, and predictable regulatory compliance.
