Rittal AX 6320.650 Operating housing - UL Type 1
Part Number: 6320650
Manufacturer
Rittal
Part number
6320650
Alt Part Number
AX 6320.650
Quick Summary
Rittal AX 6320.650 operating housing safeguards control panels in industrial automation cabinets. Its rear servicing access and a Ø 130 mm support-arm cut-out simplify installation and future retrofits on busy production lines. The unit is built to global standards with IP55 protection, NEMA 1 compliance, and IK08 impact resistance, plus UL Type 1 suitability for safe operation. By combining a rugged sheet-steel enclosure with a machinable aluminium front panel and natural anodised handle strips, it supports durable performance with flexible customization. This design minimizes downtime, accelerates commissioning, and aligns with modular automation architectures, delivering tangible savings for large-scale and mixed-use facilities.
Product Information
Extended Description

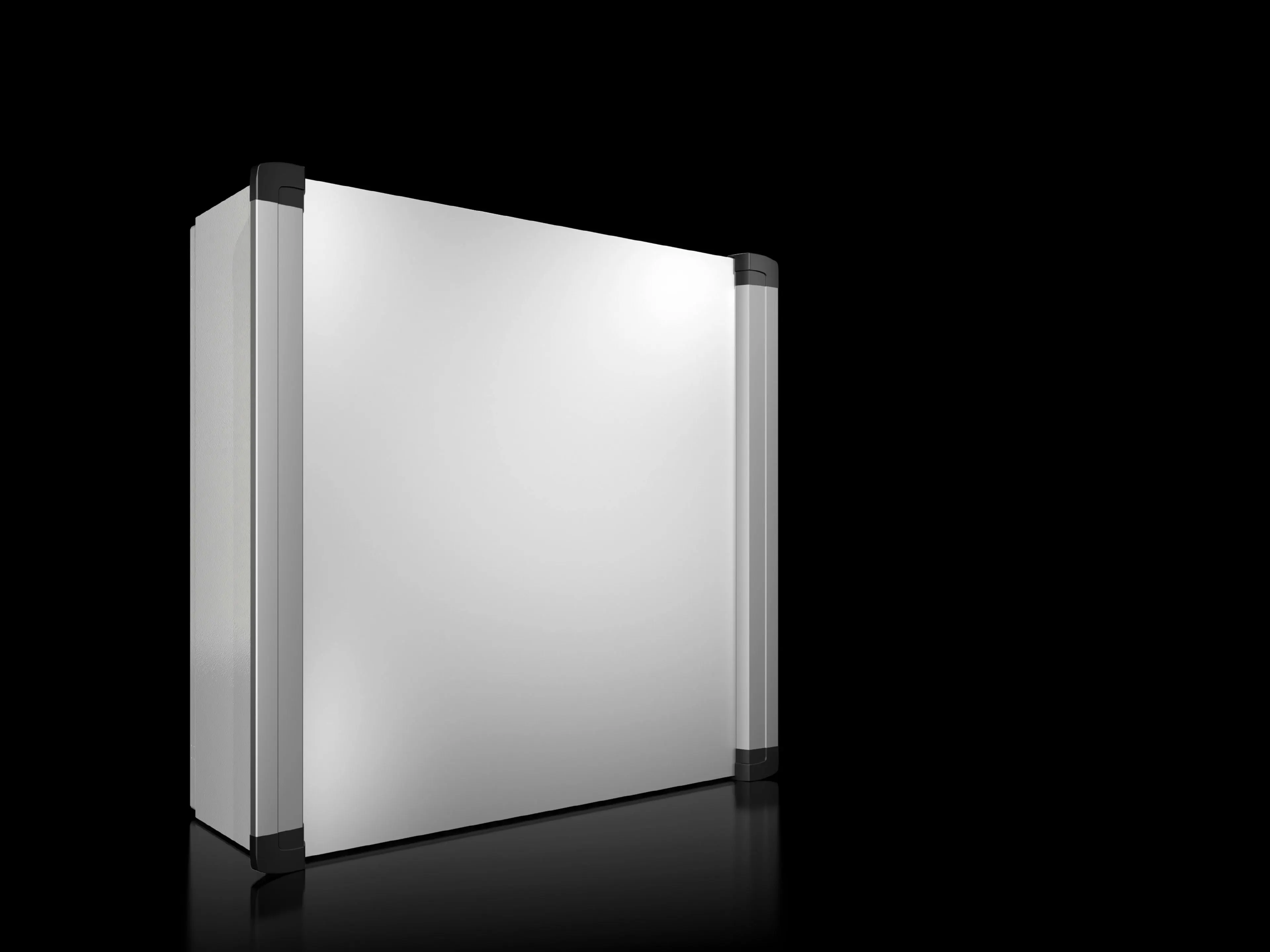

6320650 Rittal: AX Operating housing with handle strips, WHD: 600x600x210 mm, sheet steel, aluminium handle strips, servicing access from the rear
Article number
AX 6320.650
Design
Support arm connection Ø 130 mm
Material
Enclosure: Sheet steel | Door: Sheet steel, all-round foamed-in PU seal | Front panel: Aluminium | Cover caps: Plastic
Surface finish
Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint | Handle strip: Natural anodised | Front panel: Natural anodised
General colour
RAL 7035
Colour
Enclosure and door: RAL 7035 | Handle strip: Natural anodised | Front panel: Natural anodised | Cover caps: similar to RAL 7024
Supply includes
Enclosure with cut-out and reinforcement for support arm connection Ø 130 mm | Front with maximum cut-out, covered with easily machinable 3 mm aluminium front panel | Side handle strips with cover caps | Integral interior installation bracket with system punchings | Cam lock with 3 mm double-bit insert
Dimensions
Width: 600 mm | Height: 600 mm | Depth: 210 mm
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
Design
Servicing access from the rear
IK Code
IK08
Note
The support arm connection and door hinge may be swapped over by rotating the enclosure
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
17.3 kg
PCF per pack (cradle-to-gate)
78.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177923225
ETIM 9
EC002504
ETIM 8
EC002504
ECLASS 8.0
27180505
Product description
AX Operating housing with handle strips, WHD: 600x600x210 mm, sheet steel, aluminium handle strips, servicing access from the rear
Rear servicing access and CP arm compatibility improve maintenance efficiency and retrofit flexibility, reducing downtime on production lines and enabling scalable automation layouts for evolving needs. The steel enclosure with an aluminium front panel delivers robust protection while allowing precise front-panel machining, supporting custom cut-outs for sensors or interfaces and accelerating configuration changes in control cabinets. Natural anodised handle strips and powder-coated exterior finish enhance grip, durability, and corrosion resistance, minimizing wear in challenging environments and simplifying field servicing. The enclosure includes a reinforced interior installation bracket with system punchings and a cam lock with a 3 mm double-bit insert, enabling quick, secure assembly and tool-less field adjustments for mixed-line deployments. With 600x600x210 mm WHD, IK08 impact resistance, and UL Type 1/NEMA 1 compliance, the AX 6320.650 ensures reliable operation in heavy-duty automation settings while maintaining a standardized footprint for multi-bay installations. The product ships as a single-pack unit (17.3 kg) with a 3 mm aluminium front panel and maximum cut-out provision, supporting straightforward integration into CP arm systems and aligned factory layouts, all while delivering a responsible PCF of 78.5 kg CO2 eq (Cat B) for sustainability-focused projects.
Get a Quick Quote for a Rittal 6320650
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6320650?
Enquire Now
FAQs
The AX 6320.650 features a Ø130 mm support-arm connection and an integral interior installation bracket with system punchings, enabling secure attachment to CP arm systems. This design simplifies alignment and reduces installation time while maintaining stable support for modular automation configurations in crowded control rooms.
Yes. It is rated IP55 and NEMA 1, with IK08 impact resistance, providing dependable protection against dust, water spray, and mechanical shocks. This makes it suitable for harsh industrial environments where dust ingress and moisture are concerns, while still preserving access for servicing from the rear.
Installers should use the Ø130 mm cut-out for the CP arm connection and secure the enclosure with the reinforced interior brackets and cam lock. The design allows front panel cutting through the 3 mm aluminium front panel and includes cover caps for side handle strips, enabling clean, adjustable layouts without compromising enclosure integrity.
Each AX 6320.650 pack weighs 17.3 kg and is supplied as a single unit. The packaging is designed for safe transport and straightforward handling in busy facilities, helping to streamline delivery and on-site installation logistics.
The enclosure complies with UL Type 1 and NEMA 1 ratings, IK08 impact resistance, and IP55 protection. It also aligns with ETIM EC002504 and ECLASS 27180505 classifications, supporting global procurement and harmonized specification workflows for industrial automation projects.
