Rittal AX 6321.050 Operating Housing - IP65 Enclosure
Part Number: 6321050
Manufacturer
Rittal
Part number
6321050
Alt Part Number
AX 6321.050
Quick Summary
Rittal AX 6321.050 Operating Housing securely houses desktop TFTs up to 24" for industrial HMIs. In harsh environments, fragile displays are vulnerable to dust, moisture, and impact; this enclosure protects them and reduces downtime. It delivers IP65 protection, IK08 robustness, and UL 50E Type 1/NEMA 1 compatibility, meeting common industrial and electrical enclosure standards. With VESA 75/100 mounting and a ready-made interior bracket, the solution simplifies HMI integration in control panels and workstations, improving commissioning speed and long-term reliability. This makes it a practical, standards-aligned upgrade for manufacturers seeking durable desktop displays in automated lines.
Product Information
Extended Description

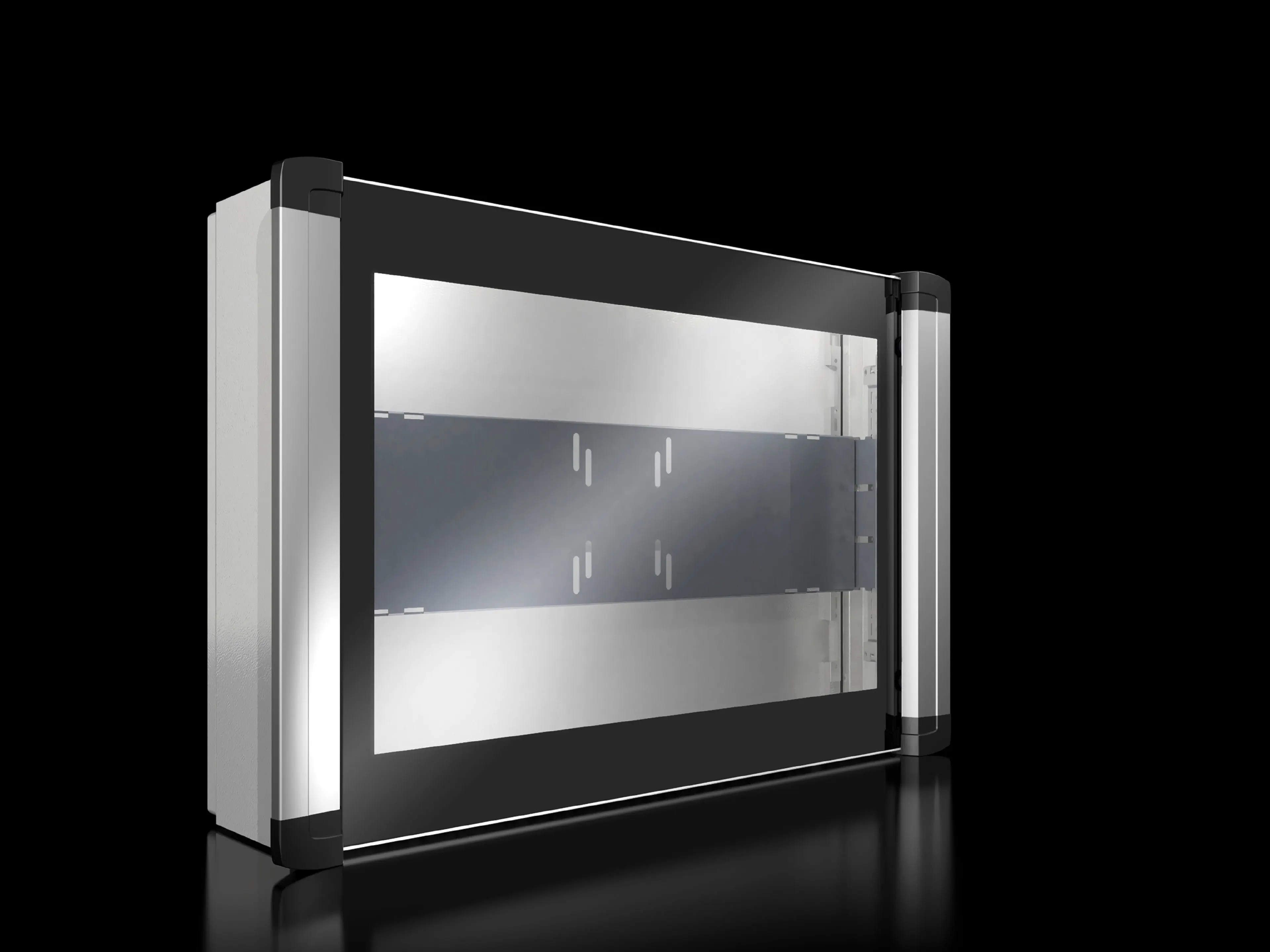

6321050 Rittal: AX Operating housing, for desktop TFT up to 24", WHD: 650x450x155 mm, sheet steel, aluminium handle strips
Article number
AX 6321.050
Product description
For the installation of commercially available desktop TFTs with a screen diagonal of up to 24" in the formats 16:9/16:10.
Material
Enclosure: Sheet steel | Door: Sheet steel, all-round foamed-in PU seal | Handle strips: Aluminium | Cover caps: Plastic | Viewing window: Single-pane safety glass | TFT holder: Sheet steel
Surface finish
Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint | Handle strip: Natural anodised
General colour
RAL 7035
Colour
Enclosure and door: RAL 7035 | Handle strip: Natural anodised | Cover caps: similar to RAL 7024
Supply includes
Enclosure with door, cut-out and reinforcement for support arm connection Ø 130 mm | Viewing window | Holder for desktop TFT with VESA 75/100 locator | Side handle strips and cover caps | Rear door with r/h hinge | Cam lock with 3 mm double-bit insert | Integral interior installation bracket with system punchings
Dimensions
Width: 650 mm | Height: 450 mm | Depth: 155 mm
IP protection category to IEC 60 529
IP 65
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
Number of locks
2
IK Code
IK08
Note
The support arm connection and door hinge may be swapped over by rotating the enclosure
Basic material
Sheet steel
Lock
Lock version: Cam | Number of locks: 2 | Lock insert: 3 mm double-bit
Packs of
1 pc(s).
Weight/pack
15.8 kg
PCF per pack (cradle-to-gate)
59.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177923249
ETIM 9
EC002504
ECLASS 8.0
27180505
Product description
AX Operating housing, for desktop TFT up to 24", WHD: 650x450x155 mm, sheet steel, aluminium handle strips
Feature: Sheet-steel enclosure with a full PU gasket and IP65 rating protects sensitive electronics from dust, water spray, and harsh factory grime. Business Impact: Reduces field failures and extends component life, lowering maintenance costs. Application: Ideal for machine panels in automotive, packaging, and process automation settings. Feature: Designed for desktop TFTs up to 24 inches with a VESA 75/100 locator and included viewing window. Business Impact: Enables rapid, standard-display integration without custom housings, cutting time-to-commission. Application: Control rooms and operator desks where quick TFT upgrades are common. Feature: Integral interior installation bracket with system punchings. Business Impact: Flexible component layout supports future expansion and rework. Application: HMI/SCADA panels in evolving automation lines. Feature: Two cam locks with 3 mm double-bit inserts. Business Impact: Enhances security during maintenance windows and field service. Application: Enclosures requiring controlled access. Feature: Viewing window of single-pane safety glass; durable finishes. Business Impact: Maintains clear visibility while resisting scratches and impacts; reduces replacement needs. Application: Harsh manufacturing floors and lab environments. Feature: Dimensions 650x450x155 mm; weight 15.8 kg per pack; powder-coated finish. Business Impact: Predictable footprint and robust handling reduce fit issues and transport costs. Application: Desktop-to-wall-mount integrations in compact workstations. Sustainability: PCF 59.5 kg CO2 eq (Cat B) under cradle-to-gate assessment. Application: Supports sustainability reporting for product lines.
Get a Quick Quote for a Rittal 6321050
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6321050?
Enquire Now
FAQs
The housing accommodates desktop TFTs up to 24 inches in 16:9 or 16:10 formats, featuring a VESA 75/100 locator for straightforward mounting and an integrated viewing window for clear operator visibility.
IP65 means the enclosure is protected against dust ingress and low-pressure water jets from any direction. The sheet steel body, full PU gasket, and sealed door contribute to reliable ingress protection in factory floors and outdoor-adjacent areas.
Yes. UL 50E Type 1 and NEMA 1 compatibility are specified for this AX operating housing, ensuring suitability for general purpose electrical enclosures and common regulatory environments.
It includes an interior installation bracket with system punchings and a VESA-compatible TFT locator, which simplifies component mounting and future upgrades while enabling flexible layout within control panels.
The unit weighs 15.8 kg per pack, with a cradle-to-gate PCF of 59.5 kg CO2 eq (Category B). This supports planning for transport, installation, and sustainability reporting in manufacturing operations.
