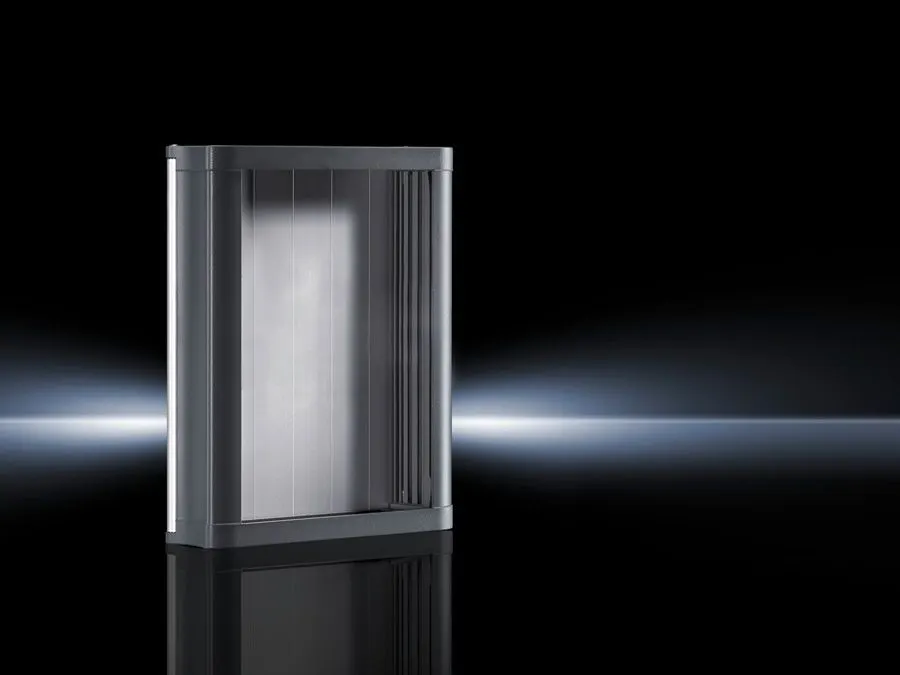

Rittal CP 6340.100 Compact Panel for Front Panels - IP65
Part Number: 6340100
Manufacturer
Rittal
Part number
6340100
Alt Part Number
CP 6340.100
Quick Summary
Rittal CP 6340.100 Compact Panel is an aluminium enclosure for compact front-panel operator interfaces. Engineers often struggle with tight spaces, rear-access constraints, and corrosion risks in small automation stations. IP65 protection, NEMA 12 compatibility, and rear servicing access provide robust protection and easier maintenance in harsh environments. The aluminium construction with a natural anodised rear panel supports long-term durability, while a powder-coated exterior enhances resilience in production floors. This solution integrates smoothly with CP 40 arm systems and front-panel assemblies, delivering reliable, scalable operator interfaces for modern control infrastructure.
Product Information
Extended Description
6340100 Rittal: CP Compact Panel, WHD: 241x388x87 mm, aluminum, for front panel WH 178x350 mm
Article number
CP 6340.100
Design
With support arm connection 90 x 71 mm for CP 40, steel
Product description
For small operating units built into front panels. The front panel is inserted from the rear and secured with screw clamps. Special front panels with a material thickness of between 2 and 6 mm are possible. Rear panel optionally hinged on the left or right. Roof tray with cut-out and reinforcement for support arm system CP 40 steel.
Material
Roof tray, base tray: Die-cast zinc | Rear panel: Aluminium | Side parts: Extruded aluminium section | Screw cover: Plastic
Surface finish
Roof tray, base tray, side parts: Powder-coated | Rear panel: natural anodised
Colour
RAL 7024
Supply includes
Roof tray | Base tray | Rear panel | Side parts | Screw cover | Seal and screw clamp
Dimensions
Width: 241 mm | Height: 388 mm | Depth: 87 mm
IP protection category to IEC 60 529
IP 65
Protection category NEMA
NEMA 12
To fit front panel width
178 mm
To fit front panel height
350 mm
Design
Servicing access from the rear
Basic material
Aluminium
Packs of
1 pc(s).
Weight/pack
3.8 kg
EAN
4028177382695
ETIM 9
EC002504
ECLASS 8.0
27180505
Product description
CP Compact Panel, WHD: 241x388x87 mm, aluminum, for front panel WH 178x350 mm
Feature: Aluminium extrusion and die-cast components deliver a rigid, lightweight structure. Business Impact: Reduces total installed weight without compromising protection, enabling easier handling and faster on-site installation. Application: Ideal for compact operator panels in automated lines where space is at a premium. Feature: IP65 protection and NEMA 12 compatibility provide dust and water ingress resistance in demanding environments. Business Impact: Minimises downtime and protects sensitive electronics, extending service intervals. Application: Food & beverage, packaging, and manufacturing floors with wash-down or dusty conditions. Feature: Dimensions of 241x388x87 mm with front panel fit of 178x350 mm enable precise integration into existing layouts. Business Impact: Ensures plug-and-play compatibility with standard control panels, reducing engineering time. Application: Retrofit projects and new builds requiring standard front-panel geometry. Feature: Rear servicing access simplifies maintenance and updates. Business Impact: Cuts maintenance time and supports modular upgrades. Application: Systems that require frequent parameter changes or component swaps. Feature: Supplied as 1 piece per pack with 3.8 kg weight, aiding logistics and on-site handling. Business Impact: Streamlined shipping, easier staging, and safer installation. Application: Warehouse to machine building environments. Feature: Material finish and appearance — powder-coated roof and base parts, natural anodised rear panel — for durable aesthetics. Business Impact: Prolongs appearance and protection in harsh environments; reduces repainting needs. Application: Enclosures exposed to dust, humidity, or cleaning regimes.
Get a Quick Quote for a Rittal 6340100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6340100?
Enquire Now
FAQs
CP 6340.100 is designed to accommodate a front panel width of 178 mm and height of 350 mm, aligning with the specified WH 178x350 mm front-panel footprint. This ensures straightforward mounting, consistent bezel alignment, and reliable panel integrity in compact operator interfaces.
The CP 6340.100 carries an IP65 rating for dust and water ingress protection and a NEMA 12 protection profile. These ratings support reliable operation in harsh manufacturing environments, including exposure to dust, humidity, and wash-down processes.
Key materials include aluminium for the rear panel and extruded aluminium side parts, with roof and base trays made from die-cast zinc. Surfaces are powder-coated on roof/base/side parts and the rear panel is natural anodised, delivering durable protection and a professional appearance.
Yes. The CP 6340.100 is designed with servicing access from the rear, enabling technicians to perform maintenance, wiring changes, and component swaps without removing the panel from the mounted position, reducing downtime and improving workflow.
The design includes a 90 x 71 mm connection suitable for CP 40 steel arm systems, enabling secure mounting and straightforward integration of operator interfaces with existing CP 40-compatible assemblies.
