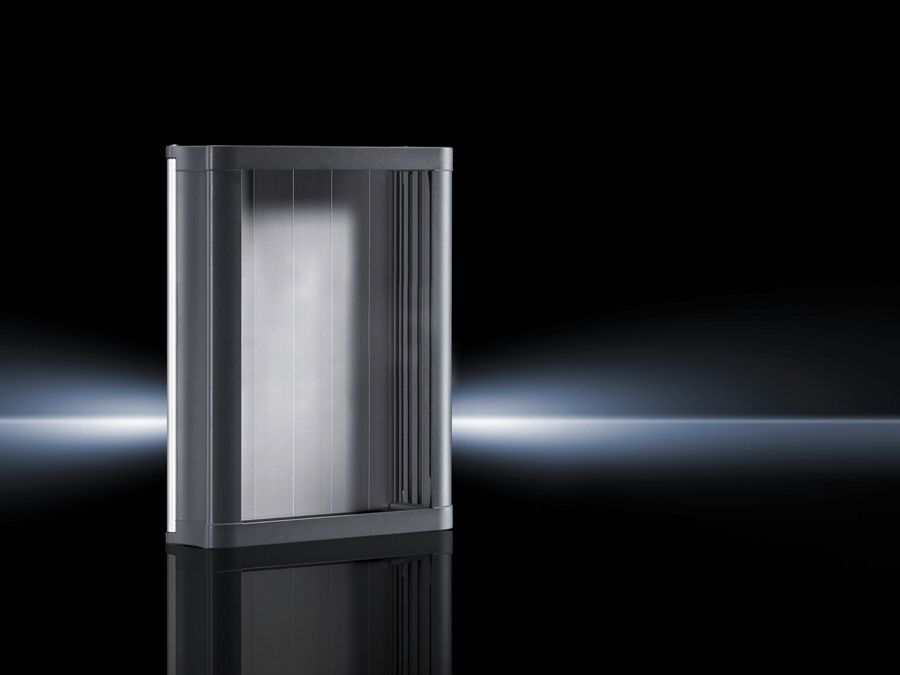

Rittal 6340300 CP Compact Panel - IP65 NEMA 12
Part Number: 6340300
Manufacturer
Rittal
Part number
6340300
Alt Part Number
CP 6340.300
Quick Summary
CP Compact Panel is a compact enclosure designed for front-panel operator units in control cabinets. Engineers often grapple with space constraints, wiring complexity, and rear-access challenges during maintenance. It offers IP65 protection and NEMA 12 compatibility to withstand dusty and wet industrial environments, while its aluminium construction and powder-coated components extend service life across harsh settings. Sized for front-panel WH 252x200 mm, it supports modular integration with CP 40 steel frames and rear servicing. Together, these features enable faster deployment, lower downtime, and scalable automation architectures for compact control rooms.
Product Information
Extended Description
6340300 Rittal: CP Compact Panel, WHD: 315x238x87 mm, aluminum, for front panel WH 252x200 mm
Article number
CP 6340.300
Design
With support arm connection 90 x 71 mm for CP 40, steel
Product description
For small operating units built into front panels. The front panel is inserted from the rear and secured with screw clamps. Special front panels with a material thickness of between 2 and 6 mm are possible. Rear panel optionally hinged on the left or right. Roof tray with cut-out and reinforcement for support arm system CP 40 steel.
Material
Roof tray, base tray: Die-cast zinc | Rear panel: Aluminium | Side parts: Extruded aluminium section | Screw cover: Plastic
Surface finish
Roof tray, base tray, side parts: Powder-coated | Rear panel: natural anodised
Colour
RAL 7024
Supply includes
Roof tray | Base tray | Rear panel | Side parts | Screw cover | Seal and screw clamp
Dimensions
Width:Â 315 mm | Height:Â 238 mm | Depth:Â 87 mm
IP protection category to IEC 60 529
IP 65
Protection category NEMA
NEMA 12
To fit front panel width
252 mm
To fit front panel height
200 mm
Design
Servicing access from the rear
Basic material
Aluminium
Packs of
1 pc(s).
Weight/pack
3.4 kg
Customs tariff number
94032080
EAN
4028177382718
ETIM 9
EC002504
ECLASS 8.0
27180505
Product description
CP Compact Panel, WHD: 315x238x87 mm, aluminum, for front panel WH 252x200 mm
Feature: Compact aluminum extrusion and a slim 315x238x87 mm footprint for front-panel integration. Business Impact: Frees cabinet depth, reduces installation time, and simplifies retrofits in space-limited panels. Application: Ideal for small operator panels in packaging and process lines. Feature: IP65 protection with NEMA 12 compatibility. Business Impact: Ensures dust, water spray, and environmental ingress resistance in harsh factories, lowering maintenance costs. Application: Outdoor or wash-down environments. Feature: Durable materials and finishes. Business Impact: Powder-coated roof, base trays and side parts plus natural anodised rear panel deliver long-term corrosion resistance with minimal upkeep. Application: Recurrent cleaning cycles and demanding environments. Feature: Rear-servicing design with rear-mounted front panel and screw clamps. Business Impact: Accelerates field service and part replacement, minimizing downtime. Application: Routine inspections and update cycles on automated lines. Feature: Compatibility with CP 40 steel and 90Ă—71 mm arm connection. Business Impact: Straightforward integration into existing frames and modular systems, reducing engineering time. Application: Retrofit projects and scalable cabinet architecture.
Get a Quick Quote for a Rittal 6340300
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6340300?
Enquire Now
FAQs
Yes. The design includes a 90 Ă— 71 mm support-arm connection suitable for CP 40 steel fronts, making integration straightforward with existing Rittal frames. The front panel is mounted from the rear and secured with screw clamps, allowing easy serviceability. It fits a front-panel size of 252 Ă— 200 mm, aligning with standard small-panel layouts. This compatibility simplifies retrofit projects and reduces engineering risk.
It carries IP65 protection per IEC 60 529 and NEMA 12 protection, providing dust ingress and water spray resistance, plus enclosure-level protection in dusty or humid plants. The aluminium construction with powder-coated exterior and a natural anodised rear panel further enhances durability, supporting long-term operation in challenging manufacturing environments.
Ideal for small operator panels and compact control stations in machine tools, packaging lines, and process automation. Its WH 252x200 mm front-panel fit and rear-access servicing make it a practical choice for space-constrained ecosystems. The lightweight aluminium enclosure supports mobile or convertible installations while maintaining rugged protection for continuous operation.
Key references include IP65 protection (IEC 60 529) and NEMA 12 protection. The product also aligns with industry classifications such as ETIM 9 EC002504 and ECLASS 8.0 27180505, which facilitate consistent specification and procurement across advanced automation projects.
Rear-access servicing simplifies panel maintenance and reduces downtime, while the aluminium construction and powder-coated finishes resist corrosion in harsh environments. With a 3.4 kg weight per pack, handling and installation are easier in tight spaces, supporting faster deployments and lower total cost of ownership over the life of automated lines.
