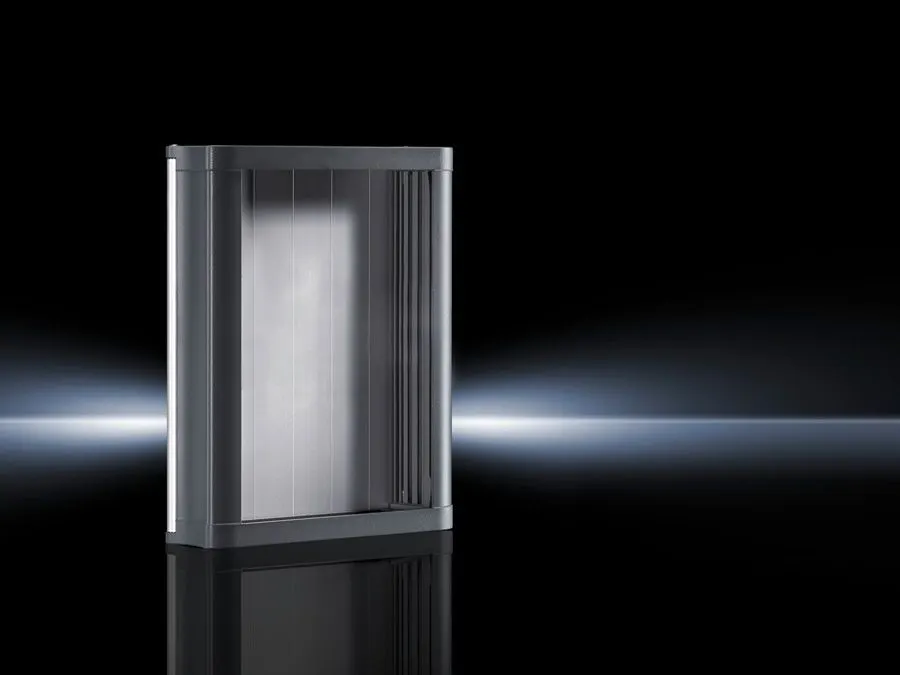

Rittal CP 6340.400 CP Compact Panel - IP65
Part Number: 6340400
Manufacturer
Rittal
Part number
6340400
Alt Part Number
CP 6340.400
Quick Summary
Rittal CP 6340.400 CP Compact Panel enables compact operator panel assembly in control cabinets. Engineers often contend with crowded enclosures and rear-access limitations, slowing installation and maintenance. With IP65 and NEMA 12 protection and a durable aluminum build, it stands up to dust, moisture and daily industrial use. Its compatibility with 252x350 mm front panels and with CP 40 support-arm systems helps you deploy scalable panels quickly, reducing lead times and total cost of ownership.
Product Information
Extended Description
6340400 Rittal: CP Compact Panel, WHD: 315x388x87 mm, aluminum, for front panel WH 252x350 mm
Article number
CP 6340.400
Design
With support arm connection 90 x 71 mm for CP 40, steel
Product description
For small operating units built into front panels. The front panel is inserted from the rear and secured with screw clamps. Special front panels with a material thickness of between 2 and 6 mm are possible. Rear panel optionally hinged on the left or right. Roof tray with cut-out and reinforcement for support arm system CP 40 steel.
Material
Roof tray, base tray: Die-cast zinc | Rear panel: Aluminium | Side parts: Extruded aluminium section | Screw cover: Plastic
Surface finish
Roof tray, base tray, side parts: Powder-coated | Rear panel: natural anodised
Colour
RAL 7024
Supply includes
Roof tray | Base tray | Rear panel | Side parts | Screw cover | Seal and screw clamp
Dimensions
Width:Â 315 mm | Height:Â 388 mm | Depth:Â 87 mm
IP protection category to IEC 60 529
IP 65
Protection category NEMA
NEMA 12
To fit front panel width
252 mm
To fit front panel height
350 mm
Design
Servicing access from the rear
Basic material
Aluminium
Packs of
1 pc(s).
Weight/pack
4.5 kg
Customs tariff number
94032080
EAN
4028177382725
ETIM 9
EC002504
ECLASS 8.0
27180505
Product description
CP Compact Panel, WHD: 315x388x87 mm, aluminum, for front panel WH 252x350 mm
Material and build quality is anchored by extruded aluminum side parts, a zinc roof/base tray, and an aluminum rear panel with a powder-coated finish. This combination delivers corrosion resistance, extended service life, and predictable maintenance costs for demanding plant environments. Ingress protection of IP65 and NEMA 12 shields the panel from dust and splash, supporting reliable operation in outdoor or dusty environments and helping maintain uptime. The enclosure fits standard front panels at 252x350 mm, with overall WHD 315x388x87 mm, reducing integration effort and saving project time in small operator panel applications. Rear servicing access enables faster maintenance, minimizing downtime during component swaps or firmware updates. A ready-to-install package, including roof tray, base tray, rear panel, side parts, screw cover and seals, plus CP 40 compatibility, accelerates deployment across multiple lines and locations.
Get a Quick Quote for a Rittal 6340400
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6340400?
Enquire Now
FAQs
Yes. The CP 6340.400 design features a 90 x 71 mm support arm connection for CP 40 steel, ensuring straightforward integration with the CP 40 mounting system and enabling secure, scalable operator panel installations without custom adapters.
Key specs include WHD 315 x 388 x 87 mm, fits front panels 252 x 350 mm, and IP65 protection with NEMA 12 classification. The unit uses aluminum construction with a weight of approximately 4.5 kg per pack, delivering a robust, space-efficient enclosure for compact panels.
Ideal for small operator panels in control cabinets, manufacturing lines, and machinery housings. The IP65/NEMA 12 protection makes it suitable for dusty, humid, or lightly outdoor-adjacent environments, while rear servicing supports frequent maintenance without full panel removal.
The enclosure uses aluminum as the basic material with powder-coated roof/base and extruded aluminum side parts, plus a natural anodised rear panel. This combination provides corrosion resistance, durable finishes, and compatibility with standard industrial front panels, aligning with typical enclosure and control-system requirements.
The CP 6340.400 ships with roof tray, base tray, rear panel, side parts, screw cover and seals, plus a rear servicing design. These features reduce assembly time, simplify servicing workflows, and shorten downtime during upgrades or inspections, delivering a lower total cost of ownership over the panel's life cycle.
