Rittal CP 6341.000 Wall Mounting Bracket - 180° Adjustable
Part Number: 6341000
Quick Summary
CP 6341.000 wall mounting bracket securely positions a Compact Panel between surfaces for reliable enclosure mounting. This solution addresses misalignment and limited access by offering 180° adjustability to fit tight spaces and evolving layouts. It aligns with industry standards ETIM 9 EC002622 and ECLASS 8.0 27189263 to support standardized data and procurement workflows. For engineers and procurement teams, the combination of robust sheet steel construction, included mounting hardware, and a compact footprint translates into faster installs, lower project risk, and easier maintenance across control cabinets and switchgear rooms.
Product Information
Extended Description
6341000 Rittal: CP Wall mounting, adjustable
Article number
CP 6341.000
Product description
For use between the Compact Panel and horizontal or vertical surfaces.
Material

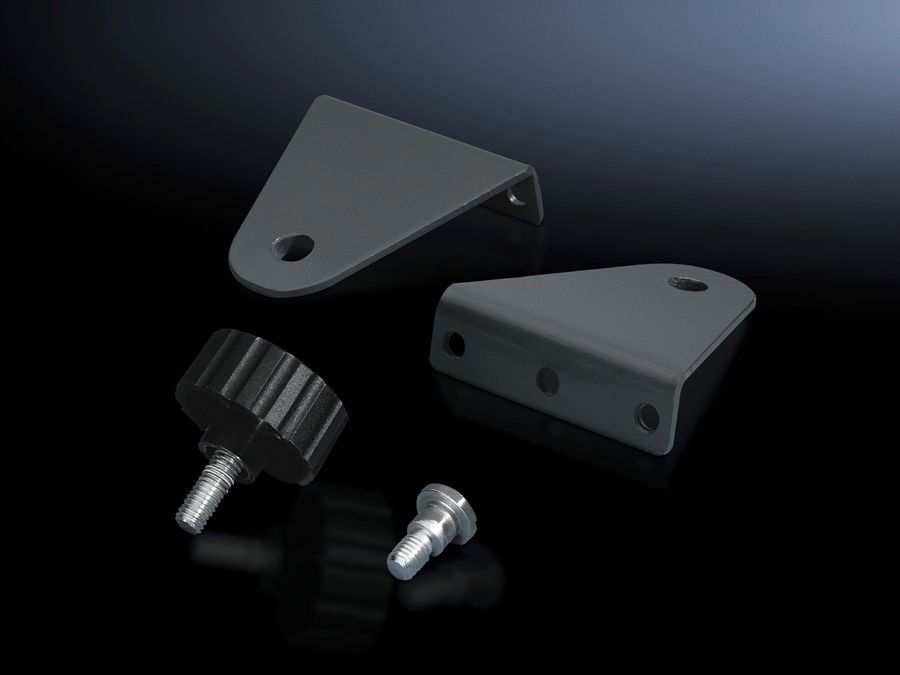

Wall mounting bracket: Sheet steel | Knurled screw: Steel with plastic knurled handle
Supply includes
Knurled screw and assembly parts for mounting on the Compact Panel.
Rotation angle/swivel area
180°adjustable on a 7.2° pitch pattern.
To fit
Enclosure type: Compact Panel
Packs of
2 pc(s).
Weight/pack
0.378 kg
PCF per pack (cradle-to-gate)
1.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177382787
ETIM 9
EC002622
ECLASS 8.0
27189263
Product description
CP Wall mounting, adjustable
Feature → Business Impact → Application: The wall mounting bracket uses sheet steel for the bracket and steel with a plastic knurled handle on the knurled screw, delivering durable, tool-free adjustments that speed up installations and reduce installation errors. This translates to measurable efficiency gains when wiring and aligning Compact Panels in busy control rooms. Application: ideal for mounting between a Compact Panel and horizontal or vertical surfaces, such as enclosure walls where space is limited and quick access is required. Feature → Business Impact → Application: 180° swivel with a 7.2° pitch pattern enables precise orientation and cable routing, improving serviceability and reducing cable wear. Application: attach CP panels in adjustable configurations to accommodate evolving layouts. Feature → Business Impact → Application: supplied hardware ensures a complete kit with knurled screw and assembly parts, cutting procurement time and simplifying on-site tasks. Application: rapid, fault-tolerant installs on Compact Panel enclosures. Feature → Business Impact → Application: per-pack footprint and weight (0.378 kg) supports cost-conscious packaging and transport planning. Application: scalable for projects deploying two-pack quantities in modular cabinet assemblies. Feature → Business Impact → Application: PCF 1.4 kg CO2 eq per pack (Cat B) supports sustainability reporting and green procurement goals. Application: aligns with environmental targets in manufacturing lines and data centers. Feature → Business Impact → Application: international classification references ETIM 9 EC002622 and ECLASS 8.0 27189263 aid cross-border sourcing and catalog consistency. Application: global procurement workflows.
Get a Quick Quote for a Rittal 6341000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6341000?
Enquire Now
FAQs
Install on the surface behind or beside the Compact Panel using the supplied knurled screw and mounting parts. Align the panel, then tighten to secure the bracket. The 180° swivel capability allows final positioning after panel seating, ensuring clean cable routing and easy access for maintenance.
The bracket provides 180° adjustability with a 7.2° pitch pattern, enabling precise orientation between surfaces. This helps accommodate varying enclosure depths and mounting clearances while maintaining panel accessibility.
Yes. The bracket is specifically designed to fit Compact Panel enclosures, ensuring proper alignment, secure mounting, and straightforward integration with existing CP mounting points.
CP 6341.000 references ETIM 9 EC002622 and ECLASS 8.0 27189263 for standardized product data, which helps with cataloging, cross-referencing, and supplier comparisons across global procurement systems.
The pack contains two brackets with a total weight of 0.756 kg per pack. PCF is 1.4 kg CO2 eq per pack (Cat B), supporting sustainability reporting. Included hardware minimizes additional disposal and optimizes packaging efficiency for project runs.
