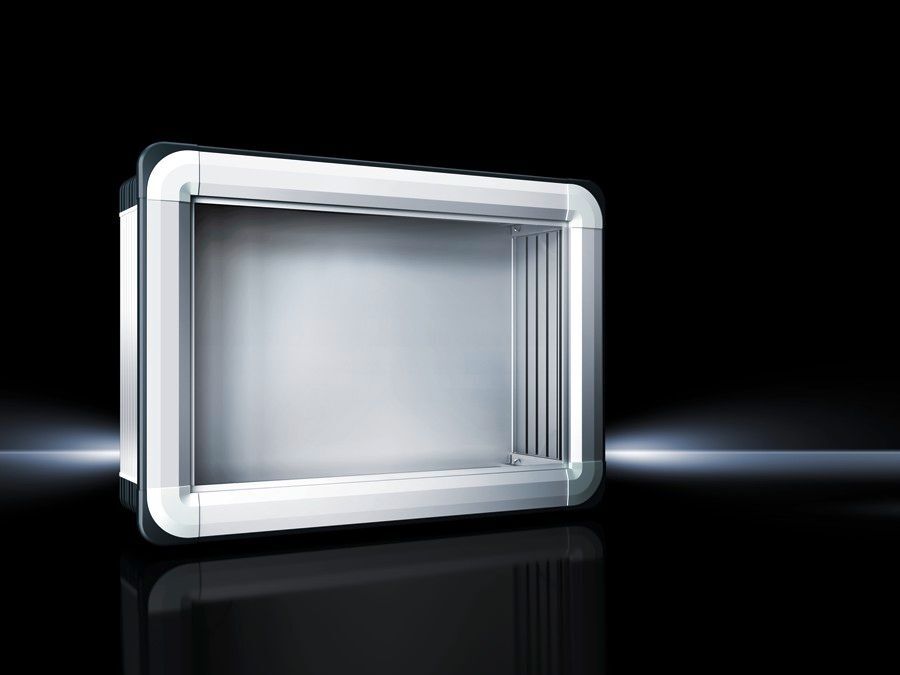

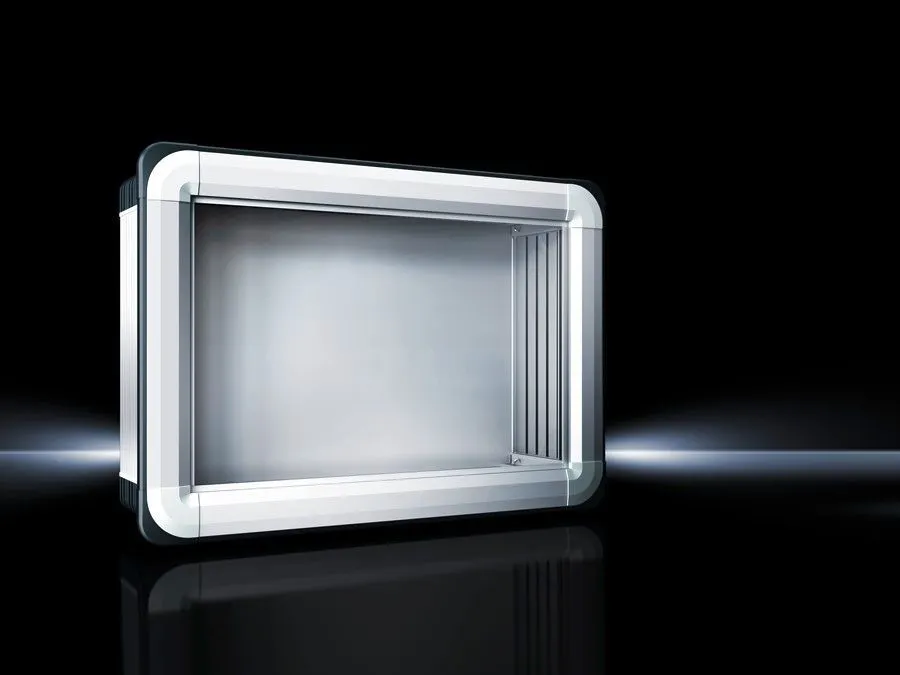

Rittal CP 6372.542 Enclosure - IP65, Aluminium
Part Number: 6372542
Manufacturer
Rittal
Part number
6372542
Alt Part Number
CP 6372.542
Quick Summary
Rittal CP 6372.542 Enclosure protects sensitive electronics in industrial control panels while delivering robust passive cooling. Engineers often struggle with heat buildup, weight, and space constraints when upgrading to compact enclosures. This enclosure delivers IP65 protection per IEC 60 529, meets NEMA 12 expectations, and is CE-ready for European deployments. With its aluminium construction and rear servicing access, it provides a lightweight yet rigid housing that simplifies installation, improves reliability, and reduces total cost of ownership in automation cabinets.
Product Information
Extended Description
6372542 Rittal: CP Compact Panel, for front panel BH 520x400 mm, installation depth 152 mm, Extruded aluminum section, Support arm connection Ø 130 mm, Hinged rear panel with cam
Article number
CP 6372.542
Design
Support arm connection Ø 130 mm
Benefits
Aluminium enclosure, high thermal conductivity for optimum passive heat dissipation.
Material
Enclosure: Extruded aluminium section | Corner pieces: Die-cast zinc | Corner protectors: Plastic
General colour
Natural anodised
Colour
Enclosure: Natural anodised | Corner pieces: RAL 7035 | Corner protectors: similar to RAL 7024
Supply includes
Enclosure with cut-out for support arm connection | 3 mm double-bit lock insert may be exchanged for 41 mm lock inserts, plastic handles and T handles, type C | Seals and assembly parts for front panels | Hinged rear panel, hinging on the longest side
Dimensions
Width: 628.5 mm | Height: 508.5 mm | Depth: 170 mm
Installation depth
152 mm
IP protection category to IEC 60 529
IP 65
Protection category NEMA
NEMA 12
To fit front panel width
520 mm
To fit front panel height
400 mm
Design
Servicing access from the rear
Note
The support arm connection may be swapped over by rotating the enclosure
Basic material
Aluminium
Lock
Lock version: Cam | Number of locks: 2 | Lock insert: 3 mm double-bit
Packs of
1 pc(s).
Weight/pack
11.7 kg
EAN
4028177663077
ETIM 7.0
EC002504
ECLASS 8.0
27180505
Product description
CP Compact Panel, for front panel BH 520x400 mm, installation depth 152 mm, Extruded aluminum section, Support arm connection Ø 130 mm, Hinged rear panel with cam
Feature: Aluminium enclosure with high thermal conductivity. Business Impact: Enables optimum passive heat dissipation, reducing the need for active cooling and lowering energy use. Application: Ideal for compact control panels that house heat-generating drives and logic modules. Feature: Low weight combined with high stability (11.7 kg per pack) and extruded aluminium sections. Business Impact: Easier handling during installation, crane-safe transport, and faster retrofits in tight manufacturing cells. Application: Suitable for front-panel configurations up to BH 520x400 mm with 152 mm depth. Feature: IP65 protection (IEC 60 529) and NEMA 12 compatibility. Business Impact: Increases reliability in dusty and exposure-prone environments, reducing maintenance cycles and enclosure replacements. Application: Outdoor or harsh indoor environments in automation and process industries. Feature: Hinged rear panel and rear servicing access. Business Impact: Simplifies maintenance, cable routing, and quick component swaps without removing the enclosure. Application: Ideal for frequent field servicing and modular expansions. Feature: Flexible locking options and complete supply. Business Impact: Improves security and service speed with 2 locks, 3 mm double-bit inserts, and interchangeable inserts. Application: Front-panel customization and fast field upgrades with seals and mounting parts included. Insight: The CP Compact Panel design supports efficient heat management and straightforward installation in modern control cabinets, aligning with industry moves toward lighter, service-friendly enclosures. Keywords: CP Compact Panel, aluminium enclosure, IP65 enclosure, rear servicing, front-panel 520x400, installation depth 152 mm.
Get a Quick Quote for a Rittal 6372542
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6372542?
Enquire Now
FAQs
The CP 6372.542 is designed for a front panel width of 520 mm and height of 400 mm. It uses a 152 mm installation depth and a rear-hinged panel for convenient servicing. The enclosure accepts a support arm connection Ø130 mm and includes seals and front-panel hardware to simplify mounting and reduce retrofit time.
The enclosure is built from extruded aluminium, providing high thermal conductivity for passive cooling and a lightweight overall mass of 11.7 kg per pack. This combination lowers energy costs, reduces handling load during installation, and supports denser panel layouts without sacrificing rigidity.
Yes. It is rated IP65 per IEC 60 529 and is compatible with NEMA 12 environments, offering effective protection against dust and water ingress. The natural anodised aluminium finish provides additional corrosion resistance for challenging industrial settings.
Key standards include IP65 protection to IEC 60 529 and NEMA 12 compatibility. The product is prepared for CE-marked European deployment and aligns with common ETIM/ECLASS classifications for compatibility in procurement systems.
The hinged rear panel enables quick maintenance without full disassembly, while two locks with 3 mm double-bit inserts offer secure access. The option to exchange lock inserts and the included seals for front panels streamline field upgrades, reducing service time and total cost of ownership in automation projects.
