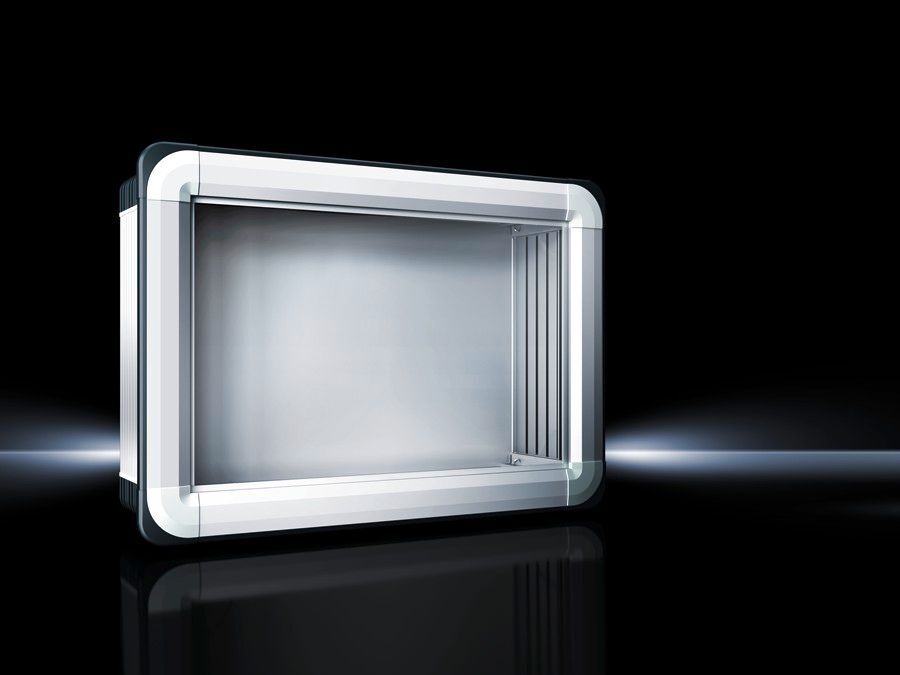

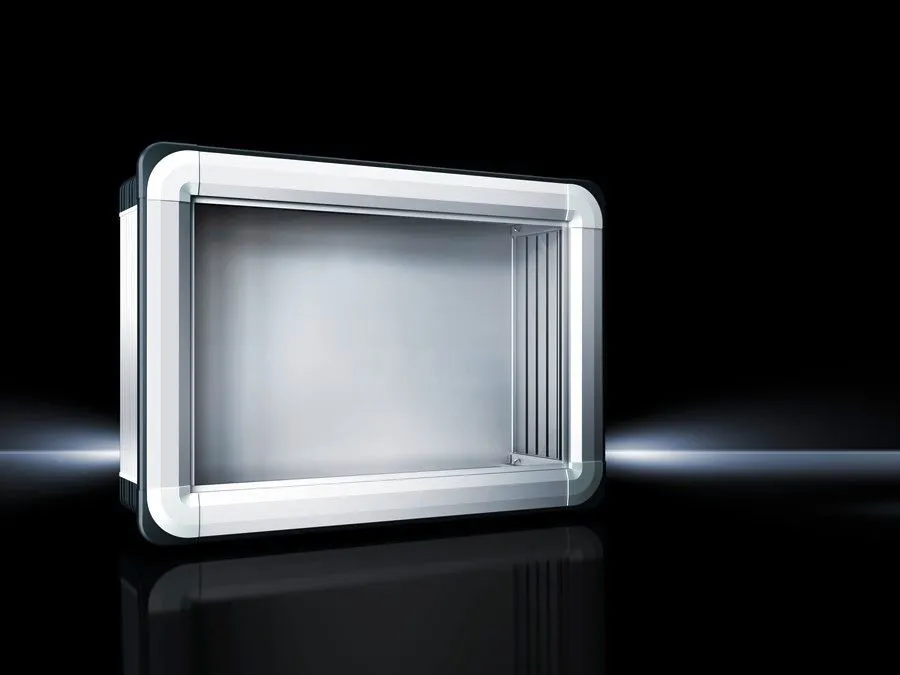

Rittal CP 6372.543 CP Compact Panel - IP65 Enclosure
Part Number: 6372543
Manufacturer
Rittal
Part number
6372543
Alt Part Number
CP 6372.543
Quick Summary
Rittal CP Compact Panel CP 6372.543 is an aluminium enclosure for durable front-panel mounting in industrial control cabinets. Engineers struggle with heat, weight, and protection in tight spaces. Its IP 65 protection per IEC 60 529 and NEMA 12 compliance help ensure reliability in harsh environments. This enclosure’s aluminium construction also supports passive cooling while keeping weight manageable for field installs. With rear access and configurable locking, it accelerates maintenance and reduces downtime in automated lines. The design supports 520x400 mm front panels, 191 mm installation depth, and a rear-hinged panel for quick access during servicing, helping engineers meet project timelines.
Product Information
Extended Description
6372543 Rittal: CP Compact Panel, for front panel BH 520x400 mm, installation depth 191 mm, Extruded aluminum section, Support arm connection Ø 130 mm, Screw-fastened rear panel
Article number
CP 6372.543
Design
Support arm connection Ø 130 mm
Benefits
Aluminium enclosure, high thermal conductivity for optimum passive heat dissipation.
Material
Enclosure: Extruded aluminium section | Corner pieces: Die-cast zinc | Corner protectors: Plastic
General colour
Natural anodised
Colour
Enclosure: Natural anodised | Corner pieces: RAL 7035 | Corner protectors: similar to RAL 7024
Supply includes
Enclosure with cut-out for support arm connection | 3 mm double-bit lock insert may be exchanged for 41 mm lock inserts, plastic handles and T handles, type C | Seals and assembly parts for front panels | Hinged rear panel, hinging on the longest side
Dimensions
Width: 628.5 mm | Height: 508.5 mm | Depth: 209 mm
Installation depth
191 mm
IP protection category to IEC 60 529
IP 65
Protection category NEMA
NEMA 12
To fit front panel width
520 mm
To fit front panel height
400 mm
Design
Servicing access from the rear
Note
The support arm connection may be swapped over by rotating the enclosure
Basic material
Aluminium
Lock
Lock version: Crescent-shaped cam | Number of locks: 2 | Lock insert: 3 mm double-bit
Packs of
1 pc(s).
Weight/pack
13.8 kg
Customs tariff number
94032080
EAN
4028177663084
ETIM 9
EC002504
ECLASS 8.0
27180505
Product description
CP Compact Panel, for front panel BH 520x400 mm, installation depth 191 mm, Extruded aluminum section, Support arm connection Ø 130 mm, Screw-fastened rear panel
Feature: Extruded aluminium section provides high thermal conductivity for efficient passive heat dissipation. Business Impact: Reduces reliance on fans or active cooling, lowering energy use and maintenance costs while increasing system reliability. Application: Ideal for dense electronics in machine control panels and automation cabinets. Feature: IP65 protection per IEC 60 529 and NEMA 12 protection for harsh industrial environments. Business Impact: Safeguards sensitive components against dust and water ingress, minimizing unscheduled downtime. Application: Suitable for manufacturing floors, exposed installations, and moisture-prone areas. Feature: Low weight with high stability enhances handling during installation. Business Impact: Cuts crane and lifting requirements, speeds up on-site assembly, and reduces installation risk. Application: Handy for retrofit projects in compact control enclosures. Feature: Rear servicing access and hinged rear panel streamline maintenance. Business Impact: Shortens downtime for inspections and upgrades, boosting overall equipment availability. Application: Regular service operations on automated lines and evolving control architectures. Feature: Comprehensive supply includes seals, front-panel hardware, and flexible lock inserts. Business Impact: Speeds commissioning and supports customization for security levels. Application: Configurable for different operator access requirements in diverse plant settings. Feature: Precise fit for front panels and clear dimensional envelope—width 628.5 mm, height 508.5 mm, depth 209 mm; front-panel fit 520x400 mm; installation depth 191 mm. Business Impact: Reduces design guesswork and ensures seamless panel integration. Application: System integrators planning standardized, scalable cabinets.
Get a Quick Quote for a Rittal 6372543
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6372543?
Enquire Now
FAQs
Yes. The CP 6372.543 is designed to fit a front panel width of 520 mm and height of 400 mm. It features a screw-fastened rear panel and a support arm connection Ø130 mm, with seals and front-panel hardware included to simplify mounting and ensure a secure, vibration-resistant installation in automation cabinets.
The enclosure provides IP65 protection per IEC 60 529 and NEMA 12 compliance, protecting internal components from dust, water ingress, and grime. It uses an extruded aluminium section to promote high thermal conductivity, enabling effective passive heat dissipation in densely populated control panels.
Industries with harsh or dusty environments, such as manufacturing, automation, packaging, and process control, benefit most. The combination of IP65/NEMA 12 protection, lightweight aluminium construction, and rear-access servicing supports reliable machine control panels, automation cabinets, and retrofit projects in space-constrained installations.
It meets IP65 protection per IEC 60 529 and NEMA 12 for enclosure reliability in demanding environments. The product is described with ETIM 9 EC002504 and ECLASS 8.0 27180505 classifications, supporting seamless data exchange with industry catalogs and procurement systems.
Rear servicing access and a hinged rear panel reduce maintenance downtime, while low weight eases handling during installation. The included seals and modular lock inserts offer flexible security options, enabling faster commissioning and lower lifecycle costs through predictable service intervals and scalable panel configurations.
