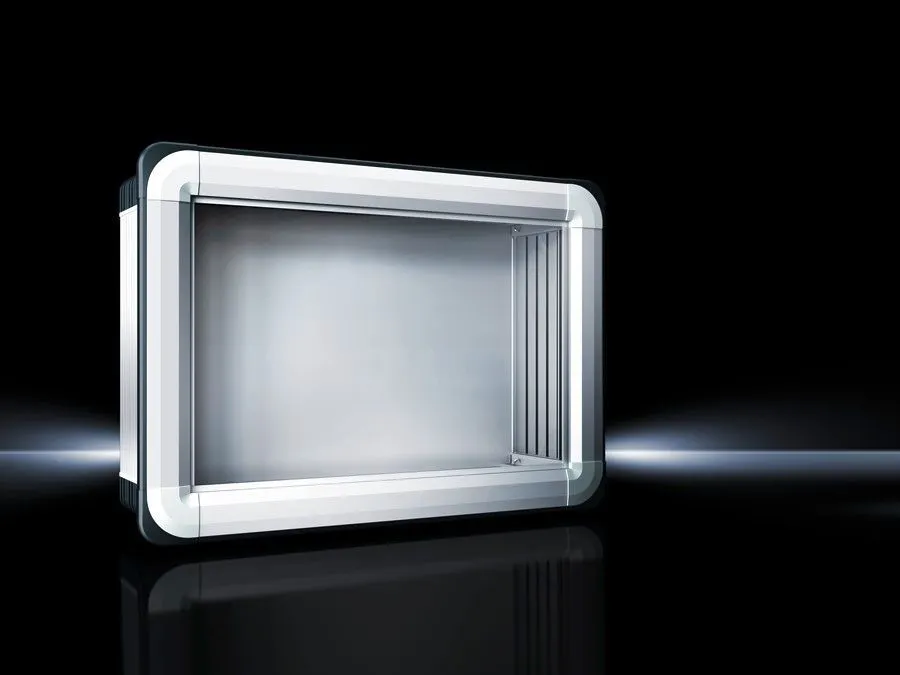

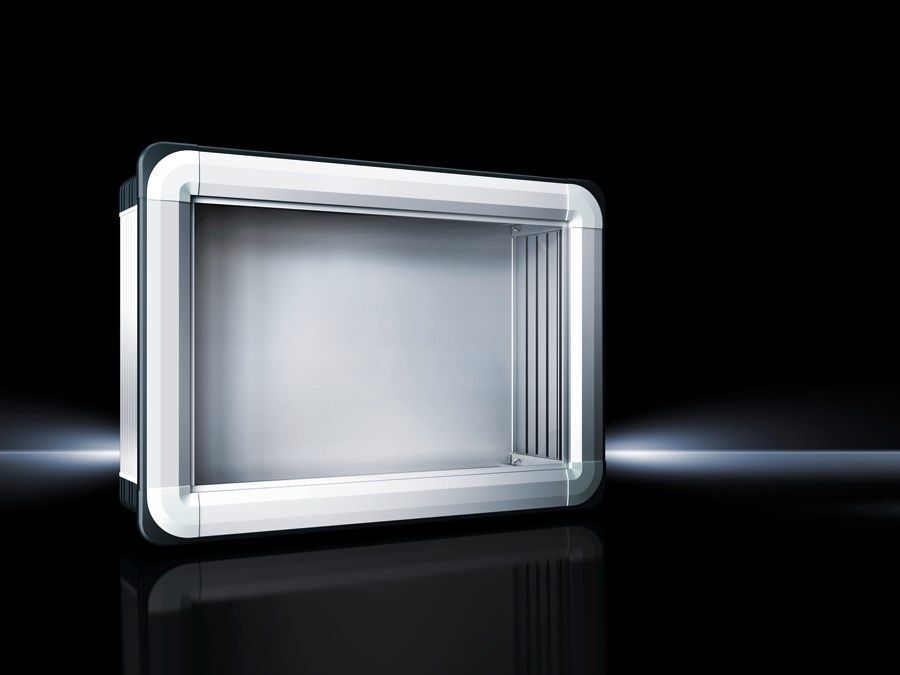

Rittal CP 6372.563 Compact Panel - IP 65
Part Number: 6372563
Manufacturer
Rittal
Part number
6372563
Alt Part Number
CP 6372.563
Quick Summary
CP 6372.563 Compact Panel from Rittal is an aluminium enclosure for front-panel control cabinets. Engineers often grapple with heat buildup, weight, and limited access in tight installations, which can compromise reliability. This model delivers IP65 protection and NEMA 12 compatibility, plus a natural anodised finish that resists corrosion in demanding environments. The design emphasizes rear servicing access, modular front-panel compatibility, and a robust locking system to reduce downtime. By combining lightweight construction with high thermal conductivity, it lowers total cost of ownership while supporting scalable automation layouts. For mature manufacturing or evolving Industry 4.0 environments, this enclosure offers both protection and performance without overcomplicating installation or maintenance.
Product Information
Extended Description
6372563 Rittal: CP Compact Panel, for front panel BH 520x600 mm, installation depth 191 mm, Extruded aluminum section, Support arm connection Ø 130 mm, Screw-fastened rear panel
Article number
CP 6372.563
Design
Support arm connection Ø 130 mm
Benefits
Aluminium enclosure, high thermal conductivity for optimum passive heat dissipation.
Material
Enclosure: Extruded aluminium section | Corner pieces: Die-cast zinc | Corner protectors: Plastic
General colour
Natural anodised
Colour
Enclosure: Natural anodised | Corner pieces: RAL 7035 | Corner protectors: similar to RAL 7024
Supply includes
Enclosure with cut-out for support arm connection | 3 mm double-bit lock insert may be exchanged for 41 mm lock inserts, plastic handles and T handles, type C | Seals and assembly parts for front panels | Screw-fastened rear panel, enclosure hinged at the front with side double-bit lock insert
Dimensions
Width: 628.5 mm | Height: 708.5 mm | Depth: 209 mm
Installation depth
191 mm
IP protection category to IEC 60 529
IP 65
Protection category NEMA
NEMA 12
To fit front panel width
520 mm
To fit front panel height
600 mm
Design
Servicing access from the rear
Note
The support arm connection may be swapped over by rotating the enclosure
Basic material
Aluminium
Lock
Lock version: Crescent-shaped cam | Number of locks: 2 | Lock insert: 3 mm double-bit
Packs of
1 pc(s).
Weight/pack
16.7 kg
EAN
4028177663145
ETIM 9
EC002504
ECLASS 8.0
27180505
Product description
CP Compact Panel, for front panel BH 520x600 mm, installation depth 191 mm, Extruded aluminum section, Support arm connection Ø 130 mm, Screw-fastened rear panel
Feature aluminium enclosure with extruded aluminium section and natural anodised finish. Business impact: high thermal conductivity enables efficient passive heat dissipation, reducing hotspot risks and extending component life. Application: ideal for power electronics and control panels in compact enclosures. Feature IP65 protection and NEMA 12 compatibility with seals and screw-fastened rear panel. Business impact: enhanced dust and water ingress protection, improving reliability in harsh environments and reducing field service calls. Application: automation cabinets in manufacturing and processing lines. Feature dimensions and front-panel compatibility: width 628.5 mm, height 708.5 mm, depth 209 mm, suitable front-panel width 520 mm and height 600 mm. Business impact: streamlined integration with standard panels, minimizing customization. Application: retrofits and new builds. Feature rear servicing access and front hinged design with lock inserts. Business impact: faster maintenance cycles and lower tool requirements. Application: daily operations and regular inspections. Feature weight 16.7 kg per pack and containment supplies including seals, front-panel components, and a rear panel. Business impact: easier handling for installation crews and reduced logistics cost. Application: site deployments and scalable deployments in multi-cabinet environments.
Get a Quick Quote for a Rittal 6372563
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6372563?
Enquire Now
FAQs
The CP 6372.563 is designed for front-panel mounting with a BH 520x600 mm fit. Its external dimensions (628.5 mm wide, 708.5 mm high, 209 mm deep) and an installation depth of 191 mm allow straightforward integration into standard control cabinets. The enclosure ships with seals and a rear panel, and the front-panel compatibility minimizes customization while supporting easy field upgrades.
Installation depth is 191 mm, with servicing access from the rear and a front-hinged design that simplifies inspections and part replacements. This configuration reduces downtime during maintenance, enables easier cable management and component swaps, and aligns with common industrial workflows where rear access facilitates wiring and diagnostics without removing the entire enclosure.
The enclosure features IP65 protection per IEC 60 529 and NEMA 12 compatibility, providing robust dust and splash resistance. This level of protection supports life-cycle performance in wash-down or dusty environments, helping to preserve internal electronics, extend intervals between servicing, and ensure compliance with demanding manufacturing and processing applications.
Standard supply includes the enclosure with a cut-out for the support arm connection, front-panel seals and assembly parts, a rear screw-fastened panel, and a front access system with a two-lock configuration. Optional 3 mm double-bit or 41 mm lock inserts, plastic handles, and T handles can be added. This setup minimizes additional hardware purchases and speeds up commissioning.
The CP 6372.563 reduces lifecycle costs through lightweight yet sturdy aluminium construction with excellent passive heat dissipation, lowering cooling requirements and energy use. Its modular, rear-service design reduces maintenance time, while IP65/NEMA 12 protection minimizes field repairs. Together, these factors shorten project schedules and improve overall equipment uptime, delivering a favorable return on investment for automation deployments.
