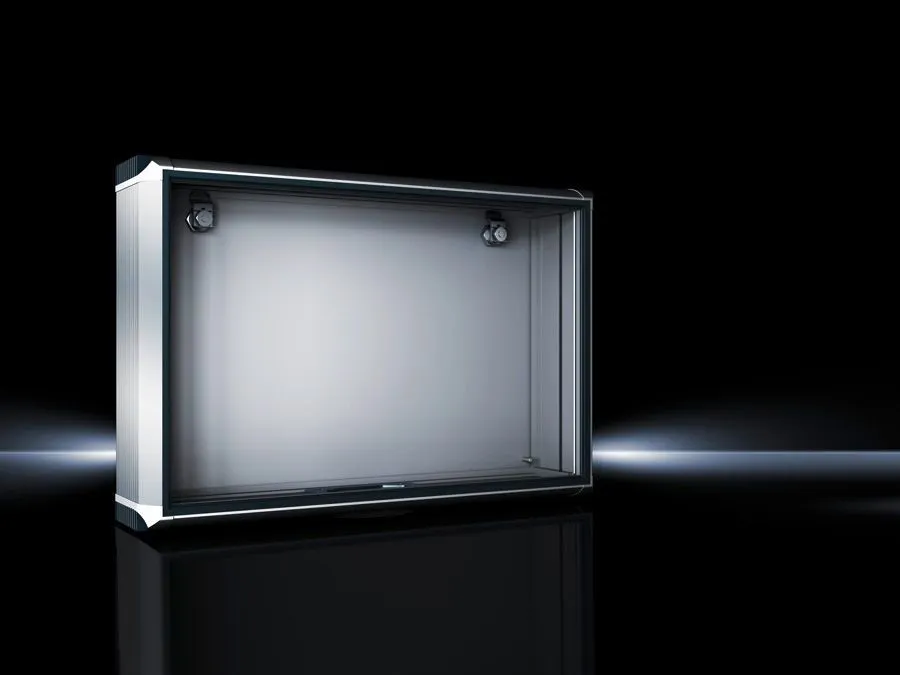

Rittal CP 6380.000 Enclosure - IP65
Part Number: 6380000
Manufacturer
Rittal
Part number
6380000
Alt Part Number
CP 6380.000
Quick Summary
Rittal CP 6380.000 Enclosure is a lightweight aluminium cabinet designed for compact control panels in harsh industrial environments. Engineers often struggle with cramped spaces where heat and dust degrade reliability; this enclosure minimizes footprint while preserving easy front-panel access. It delivers IP65 protection and CE-compliant manufacturing practices, aligning with stringent industrial standards. Rear servicing access, a hinged rear panel, seals, and a 120 x 65 mm support arm connection enable fast, predictable maintenance and installation. Designed for smaller panels and control solutions, CP Optipanel supports space savings, improved heat management, and robust protection, helping projects finish on time while delivering long-term reliability in demanding factories.
Product Information
Extended Description
6380000 Rittal: CP Optipanel, for front panel BH 482,6x310,3 mm, installation depth 100 mm, Extruded aluminum section, Support arm connection 120x65 mm
Article number
CP 6380.000
Design
Support arm connection, rectangular 120 x 65 mm
Benefits
Aluminium enclosure, high thermal conductivity for optimum passive heat dissipation.
Material
Enclosure: Extruded aluminium section | Corner pieces: Die-cast zinc | Corner protectors: Plastic
General colour
Natural anodised
Colour
Enclosure: Natural anodised | Corner pieces: RAL 7035 | Corner protectors: similar to RAL 7024
Supply includes
Enclosure with hinged rear panel | Seals
Dimensions
Width: 526.6 mm | Height: 354.3 mm | Depth: 110 mm
Installation depth
100 mm
IP protection category to IEC 60 529
IP 65
To fit front panel width
482.6 mm
To fit front panel height
310.3 mm
Design
Servicing access from the rear
Note
The support arm connection may be swapped over by rotating the enclosure
Basic material
Aluminium
Lock
Lock version: Cam | Number of locks: 2 | Lock insert: 3 mm double-bit
Packs of
1 pc(s).
Weight/pack
6.2 kg
Customs tariff number
94032080
EAN
4028177231627
ETIM 9
EC002504
ECLASS 8.0
27180505
Product description
CP Optipanel, for front panel BH 482,6x310,3 mm, installation depth 100 mm, Extruded aluminum section, Support arm connection 120x65 mm
Feature: Aluminium enclosure with extruded aluminium section provides high thermal conductivity. Business Impact: Enables passive heat dissipation to keep electronics within safe temperatures, reducing the need for active cooling and lowering energy costs. Application: Small control panels and compact automation racks where space is at a premium. Feature: Front panel compatibility for BH 482.6 x 310.3 mm with installation depth of 100 mm. Business Impact: Maximizes usable equipment footprint, enabling denser panel layouts without overheating risk. Application: Contactor cabinets and compact PLC/drive housings in space-constrained enclosures. Feature: IP65 protection per IEC 60529. Business Impact: Ensures reliable operation in dusty or washdown environments, reducing downtime and maintenance intervals. Application: Factory floors, outdoor installations, and wet production lines. Feature: Material composition includes aluminium enclosure, die-cast zinc corner pieces, and plastic corner protectors. Business Impact: Delivers corrosion resistance and durable sealing under harsh conditions, extending service life. Application: Outdoor or high-humidity installations in manufacturing. Feature: Rear servicing access and hinged rear panel with seals. Business Impact: Facilitates quick maintenance without removing the enclosure, lowering maintenance time and labor costs. Application: Systems requiring regular access to mounted components. Feature: 120 x 65 mm support arm connection and cam locks (2) with 3 mm double-bit inserts. Business Impact: Simplifies mounting and security, reducing installation steps and risk of tampering. Application: Tighten security while maintaining convenient access for servicing.
Get a Quick Quote for a Rittal 6380000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6380000?
Enquire Now
FAQs
Yes. The CP 6380.000 is designed for front panel BH 482.6 x 310.3 mm and matches the overall enclosure dimensions (x: 526.6 mm, y: 354.3 mm, depth: 110 mm) with an installation depth of 100 mm. It also supports a 120 x 65 mm rear arm connection for secure mounting.
The enclosure carries an IP65 rating per IEC 60529, suitable for dusty and washdown environments. Made from extruded aluminium, it provides high thermal conductivity for passive heat dissipation, helping keep internal equipment within safe temperatures without extra cooling.
Yes. Its compact footprint, IP65 protection, and rear-serviceable design make it ideal for small control panels, PLCs, and drives in factory floors, maritime or outdoor installations where space and protection are critical.
The product data specifies IP65 protection and CE-compatible manufacturing practices. While IP65 is explicit, users should verify CE marking with the supplier to confirm full conformity for their regional regulatory needs.
Rear servicing access with a hinged rear panel and seals facilitates quick maintenance without removing the enclosure. The 120 x 65 mm arm connection and cam lock system (two locks) also support secure, efficient installation and servicing workflows.
