Rittal 6380400 Enclosures & Electrical Infrastructure - IP65
Part Number: 6380400
Manufacturer
Rittal
Part number
6380400
Alt Part Number
CP 6380.400
Quick Summary
Rittal 6380400 enclosures protect control panels in compact spaces with optimized heat dissipation. Engineers often struggle with cramped layouts and overheating in small cabinets, making reliable protection and serviceability a challenge. The enclosure delivers IP65 ingress protection and rear servicing access, while natural anodised aluminium resists corrosion in harsh environments. With a front panel width of 520 mm and height of 400 mm, and a slim 110 mm depth, it maximizes usable cabinet space. This solution supports quick installation and ongoing maintenance, helping teams meet project timelines and reduce unscheduled downtime.
Product Information
Extended Description

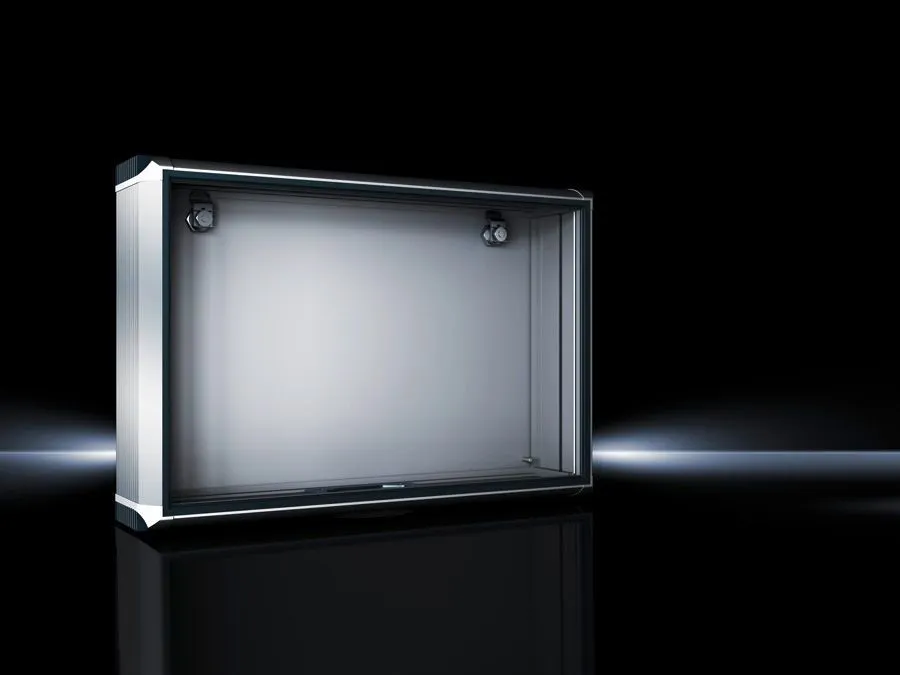

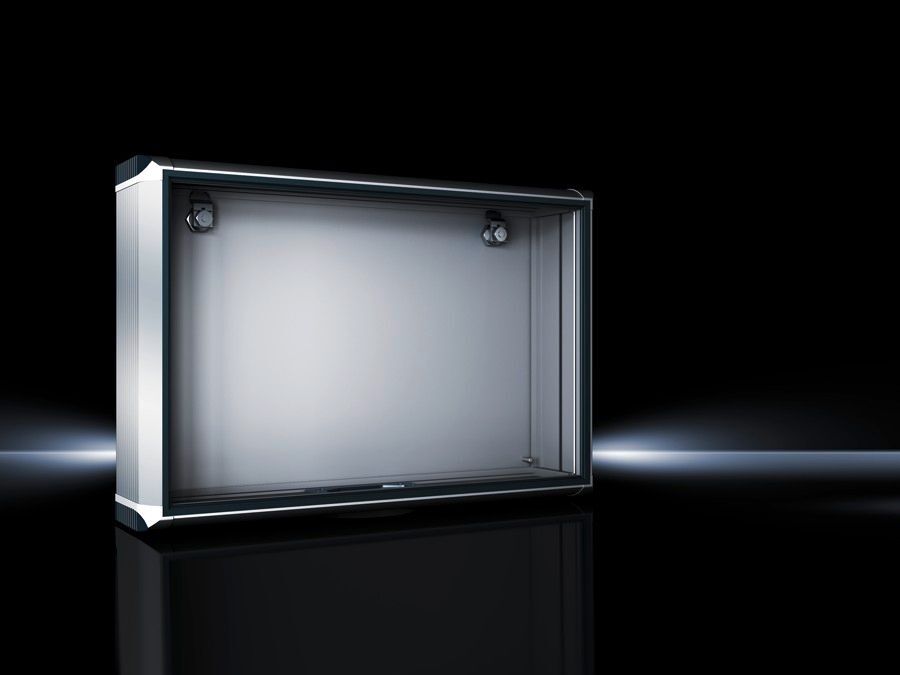

6380400 Rittal: CP Optipanel, for front panel BH 520x400 mm, installation depth 100 mm, Extruded aluminum section, Support arm connection 120x65 mm
Article number
CP 6380.400
Design
Support arm connection, rectangular 120 x 65 mm
Benefits
Aluminium enclosure, high thermal conductivity for optimum passive heat dissipation.
Material
Enclosure: Extruded aluminium section | Corner pieces: Die-cast zinc | Corner protectors: Plastic
General colour
Natural anodised
Colour
Enclosure: Natural anodised | Corner pieces: RAL 7035 | Corner protectors: similar to RAL 7024
Supply includes
Enclosure with hinged rear panel | Seals | Seals and assembly parts for front panels
Dimensions
Width: 564 mm | Height: 444 mm | Depth: 110 mm
Installation depth
100 mm
IP protection category to IEC 60 529
IP 65
To fit front panel width
520 mm
To fit front panel height
400 mm
Design
Servicing access from the rear
Note
The support arm connection may be swapped over by rotating the enclosure
Basic material
Aluminium
Lock
Lock version: Cam | Number of locks: 2 | Lock insert: 3 mm double-bit
Packs of
1 pc(s).
Weight/pack
5.8 kg
Customs tariff number
94032080
EAN
4028177663152
ETIM 9
EC002504
ECLASS 8.0
27180505
Product description
CP Optipanel, for front panel BH 520x400 mm, installation depth 100 mm, Extruded aluminum section, Support arm connection 120x65 mm
Feature aluminium enclosure with high thermal conductivity → Business impact reduces the need for active cooling and fans, lowering energy use and noise; Application ideal for space-constrained automated panels. Feature front-panel BH 520x400 compatibility with 100 mm installation depth → Business impact enables compact control cabinets without compromising access to components; Application suitable for machine controls and automation panels. Feature rear servicing access and rotatable support arm connection 120x65 mm → Business impact simplifies maintenance, accelerates diagnostics, and minimizes downtime; Application supports flexible mounting options in variable layouts. Feature robust material mix and sealed joints (extruded aluminium, die-cast zinc corners, plastic protectors) → Business impact increases durability and longevity in demanding environments; Application appropriate for factory floors with exposure to dust and vibration. Feature IP65 protection and included seals → Business impact ensures reliable ingress protection, reducing contamination risk; Application aligns with industrial automation standards. Feature weight of 5.8 kg per pack and dimensions 564 x 444 x 110 mm → Business impact offers predictable packaging and transport, easing logistics; Application suitable for streamlined procurement and inventory management.
Get a Quick Quote for a Rittal 6380400
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6380400?
Enquire Now
FAQs
Installation is designed for a 520x400 mm front panel with a 100 mm depth. The enclosure uses a 120x65 mm support arm connection and ships with seals and assembly parts for front panels, enabling a straightforward, tool-assisted setup and reliable sealing against dust and water ingress.
Key specs include an IP65 protection rating per IEC 60529, natural anodised aluminium enclosure, dimensions of 564 mm width, 444 mm height, and 110 mm depth, and a weight of 5.8 kg per pack. It fits front panels up to 520x400 mm and features a rear servicing design for easy maintenance.
Yes. The CP Optipanel design provides servicing access from the rear, which simplifies inspection and maintenance of mounted electronics without removing the entire enclosure. This reduces downtime and supports quicker fault isolation in production lines.
The design includes a note that the support arm connection can be swapped over by rotating the enclosure, allowing flexible orientation to suit varying installation constraints and space allocations on the shop floor.
Core dimensions are 564 mm (W) x 444 mm (H) x 110 mm (D), with a 100 mm installation depth and front-panel compatibility of 520x400 mm. The enclosure uses seals for IP65 protection, a cam-lock system with two locks, and corrosion-resistant natural anodised aluminium for durability.
