Rittal 6380410 Enclosure - IP65
Part Number: 6380410
Manufacturer
Rittal
Part number
6380410
Alt Part Number
CP 6380.410
Quick Summary
Rittal 6380410 Enclosure is a compact aluminium housing for small control panels and front-panel installations. Engineers often face space constraints, limited cooling options, and rear-access maintenance in compact cabinets. With IP65 protection per IEC 60529, natural anodised aluminium construction, and rear servicing access, this enclosure supports robust field deployments in harsh environments. Its slim profile helps reduce footprint while preserving serviceability, and procurement is simplified by clear ETIM EC002504 and ECLASS 27180505 classifications. For automation projects, it pairs well with compact control gear and supports efficient heat management through passive dissipation. Industry teams appreciate predictable sourcing and straightforward installation.
Product Information
Extended Description

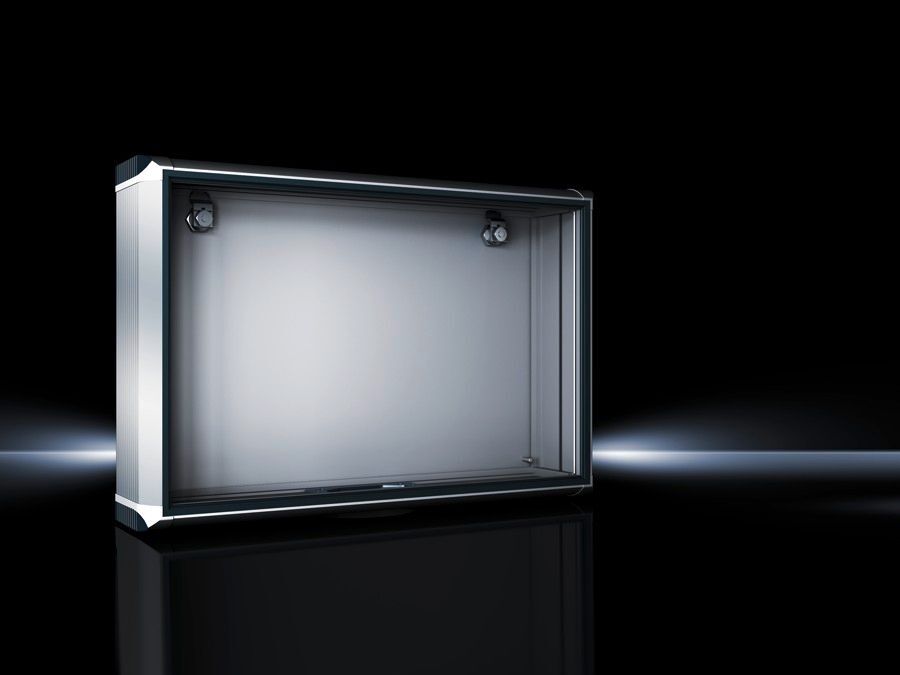

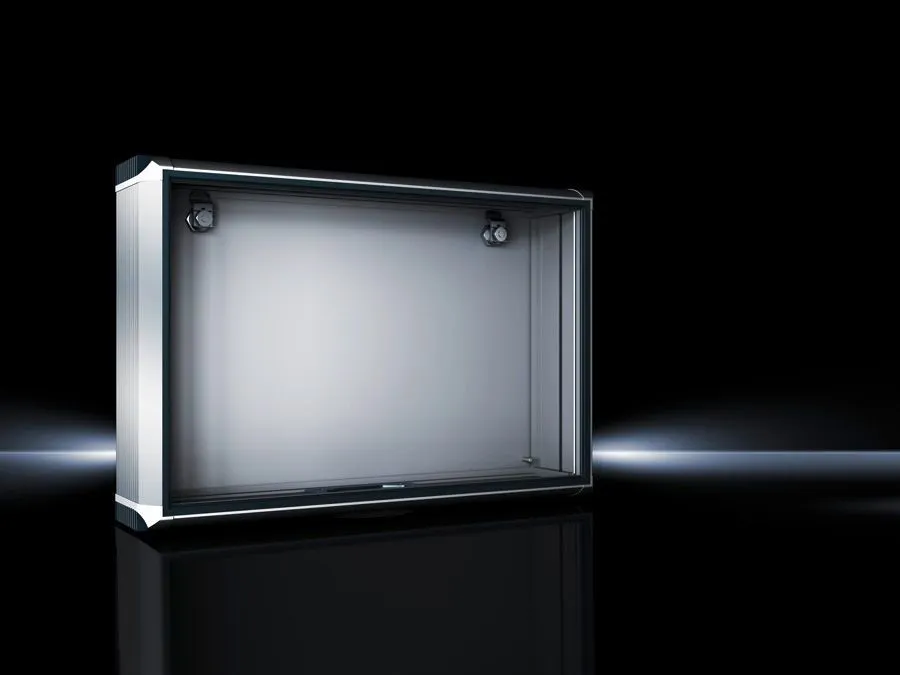

6380410 Rittal: CP Optipanel, for front panel BH 520x400 mm, installation depth 150 mm, Extruded aluminum section, Support arm connection Ø 130 mm
Article number
CP 6380.410
Design
Support arm connection Ø 130 mm
Benefits
Aluminium enclosure, high thermal conductivity for optimum passive heat dissipation.
Material
Enclosure: Extruded aluminium section | Corner pieces: Die-cast zinc | Corner protectors: Plastic
General colour
Natural anodised
Colour
Enclosure: Natural anodised | Corner pieces: RAL 7035 | Corner protectors: similar to RAL 7024
Supply includes
Enclosure with hinged rear panel | Seals | Seals and assembly parts for front panels
Installation depth
150 mm
IP protection category to IEC 60 529
IP 65
To fit front panel width
520 mm
To fit front panel height
400 mm
Design
Servicing access from the rear
Note
The support arm connection may be swapped over by rotating the enclosure
Basic material
Aluminium
Lock
Lock version: Cam | Number of locks: 2 | Lock insert: 3 mm double-bit
Packs of
1 pc(s).
Weight/pack
7.3 kg
EAN
4028177663169
ETIM 9
EC002504
ECLASS 8.0
27180505
Product description
CP Optipanel, for front panel BH 520x400 mm, installation depth 150 mm, Extruded aluminum section, Support arm connection Ø 130 mm
Feature: Slimline design with a 520x400 mm front-panel fit and 150 mm installation depth. Business Impact: Minimizes enclosure footprint and simplifies panel integration, freeing valuable space for wiring, power, and I/O. Application: ideal for front-panel installations in compact automation cabinets and machine builders. Paragraph two describes the next feature: Extruded aluminium section provides high thermal conductivity for passive cooling. Business Impact: reduces reliance on active cooling, enabling quieter operation and lower energy use. Application: suitable for cabinets located near heat sources on the factory floor. Paragraph three highlights IP65 protection. Business Impact: ensures dust and water ingress protection in dusty or damp environments, reducing failure risk. Application: outdoor enclosures, damp workshops, and wash-down areas. Paragraph four covers rear servicing access and orientation flexibility. Business Impact: speeds maintenance and allows installation flexibility by rotating the enclosure to swap the arm connection. Application: service-intensive control panels where quick access is crucial. Paragraph five covers supplied components and weight considerations. Business Impact: seals and assembly parts streamline installation while consistent packing simplifies logistics. Application: standardised setups for repeat builds and batch manufacturing.
Get a Quick Quote for a Rittal 6380410
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6380410?
Enquire Now
FAQs
The CP 6380.410 supports a 520x400 mm front panel with an installation depth of 150 mm. The enclosure ships with seals and assembly parts for front panels, ensuring a tight, protective fit. This combination is ideal for space-constrained control cabinets where panel size is fixed and mounting depth matters for wiring clearance.
Yes, the enclosure carries an IP65 rating under IEC 60529. This means it is dust-tight and protected against water jets from any direction, making it suitable for dusty factory floors, wash-down areas, or outdoor installations where ingress protection is critical for longevity and reliability.
Indeed. The CP 6380.410 uses a front panel support arm connection Ø 130 mm, and the design notes that the connection may be swapped over by rotating the enclosure. This provides installation flexibility to match mounting space and service access requirements in tight layouts.
The enclosure uses an extruded aluminium section for the main body, with die-cast zinc corner pieces and plastic corner protectors, all in a natural anodised finish. Aluminium offers high thermal conductivity for passive heat dissipation, improving efficiency of compact control systems, while the finish provides corrosion resistance and a professional appearance in harsh environments.
Packaging includes the enclosure with a hinged rear panel, seals, and assembly parts for front panels. The typical weight per pack is 7.3 kg, and each pack contains 1 piece, helping with shipping planning and forklift handling on site.
