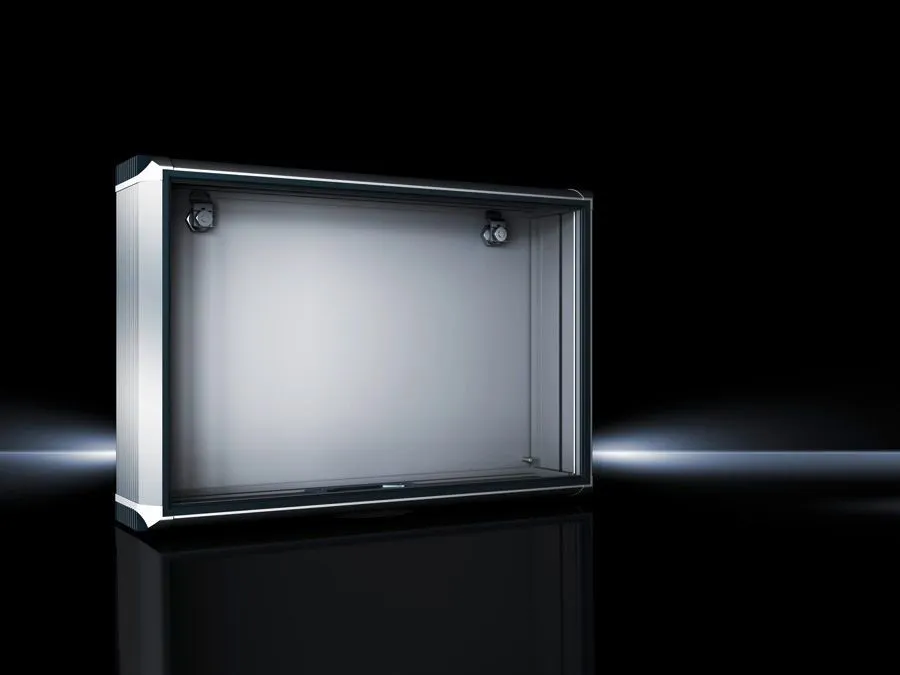

Rittal 6380510 CP Optipanel Enclosure Aluminium - IP65
Part Number: 6380510
Manufacturer
Rittal
Part number
6380510
Alt Part Number
CP 6380.510
Quick Summary
Rittal 6380510 CP Optipanel aluminium enclosure provides a compact, high-thermal-conductivity housing for small control panels. Many enclosures struggle with heat buildup and space constraints in tight machine bays. This solution delivers IP65 protection and compatibility with front-panel BH 520x500 mm, supported by natural anodised finishes and ETIM 9 EC002504/ECLASS 8.0 27180505 classifications. Designed for rear servicing, it keeps servicing access convenient without compromising sealing or rigidity. The result is a reliable, scalable platform for compact automation projects, enabling faster commissioning and longer service intervals while reducing footprint and cooling requirements.
Product Information
Extended Description
6380510 Rittal: CP Optipanel, for front panel BH 520x500 mm, installation depth 150 mm, Extruded aluminum section, Support arm connection Ø 130 mm
Article number
CP 6380.510
Design
Support arm connection Ø 130 mm
Benefits
Aluminium enclosure, high thermal conductivity for optimum passive heat dissipation.
Material
Enclosure: Extruded aluminium section | Corner pieces: Die-cast zinc | Corner protectors: Plastic
General colour
Natural anodised
Colour
Enclosure: Natural anodised | Corner pieces: RAL 7035 | Corner protectors: similar to RAL 7024
Supply includes
Enclosure with hinged rear panel | Seals | Seals and assembly parts for front panels
Installation depth
150 mm
IP protection category to IEC 60 529
IP 65
To fit front panel width
520 mm
To fit front panel height
500 mm
Design
Servicing access from the rear
Note
The support arm connection may be swapped over by rotating the enclosure
Basic material
Aluminium
Lock
Lock version: Cam | Number of locks: 2 | Lock insert: 3 mm double-bit
Packs of
1 pc(s).
Weight/pack
8.3 kg
Customs tariff number
94032080
EAN
4028177663183
ETIM 9
EC002504
ECLASS 8.0
27180505
Product description
CP Optipanel, for front panel BH 520x500 mm, installation depth 150 mm, Extruded aluminum section, Support arm connection Ø 130 mm
Feature: Aluminium enclosure with high thermal conductivity enables optimum passive heat dissipation. Business impact: Improves reliability of small control panels in confined cabinets, potentially lowering cooling costs and reducing temperature-related failures. Application: Ideal for compact automation applications where space is at a premium and convection cooling is preferred. Feature: Front-panel compatibility for BH 520x500 mm and installation depth of 150 mm, using an extruded aluminium section with a Ø130 mm support arm connection. Business impact: Delivers a precise fit and flexible mounting, simplifying installation in existing cabinets and enabling modular layouts. Application: Suitable for small process or machine controls requiring a slim, serviceable footprint. Feature: IP65 protection with included seals and a natural anodised finish. Business impact: Ensures reliable ingress protection in harsh environments, reducing maintenance and warranty risk. Application: Appropriate for outdoor- or dust-prone installations in industrial settings. Feature: Rear servicing access design and swap-ready support arm orientation. Business impact: Enhances maintainability and field service efficiency, lowering downtime during upgrades. Application: Beneficial for continuous improvement projects and frequent component changes. Feature: Durable construction with extruded aluminium enclosure, die-cast zinc corner pieces, and plastic corner protectors. Business impact: Delivers long-term rigidity and protection in vibration-heavy environments, lowering total cost of ownership. Application: Ideal for rugged automation environments and retrofit jobs requiring sturdy enclosures.
Get a Quick Quote for a Rittal 6380510
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6380510?
Enquire Now
FAQs
The CP Optipanel 6380.510 is designed for front-panel BH 520x500 mm installations with a 150 mm depth. It features rear servicing access, an extrusion aluminium enclosure, and a Ø130 mm support arm connection, allowing straightforward retrofit into compact cabinets. Seals and assembly parts for front panels are included to preserve IP65 sealing during installation.
The enclosure uses an aluminium extrusion for high thermal conductivity, delivering passive heat dissipation essential for small control solutions. IP65 sealing protects against dust and water ingress, and the natural anodised finish adds corrosion resistance. The design supports reliable operation in space-constrained environments with reduced need for active cooling.
Yes. With a 520x500 mm front panel fit and a shallow 150 mm installation depth, the CP Optipanel is ideal for compact automation solutions, small PLC cabinets, and panel-builder projects where space is limited. Its rear-servicing access and robust構ure support quick maintenance without compromising protection.
The enclosure carries IP65 protection per IEC 60529, suitable for harsh environments. It is associated with ETIM 9 EC002504 and ECLASS 8.0 27180505 classifications for standardised product data. The natural anodised aluminium finish and specific material composition meet industry expectations for durability and compatibility in industrial installations.
The unit is packed as 1 piece per pack and includes an enclosure with hinged rear panel, seals, and seals/assembly parts for front panels. The design supports rear servicing and front-panel mounting, which reduces downtime during upgrades and speeds up installation, delivering a favorable return on investment for retrofit projects.
